1900nm (18+1)x1Multimode Pump & Signal Combiner
DESCRIPTION
Haphit provides fiber based passive components. The Optical Multimode Pump & Signal Combiner is made by Fusion Splice technology with fiber in and fiber out. It features High Coupling Ratio and Various Configuration. The Optical Multimode Pump & Signal Combiner will combine 2 or more channels of high power pump light into one multimode fiber and output. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FMPS 1900nm 1880nm 1885nm 1890nm 1895nm 1905nm 1910nm 1915nm 1920nm 1925nm 1930nm high power optical fiber Multimode Pump and Signal Combiner laser wielomodowa pompa ?wiat?owodowa du?ej mocy i ??cznik laserowy Signal Combiner combinatore laser combinatore di segnali e pompa multimodale in fibra ottica ad alta potenza Combinador láser de bomba multimodo y señal de fibra óptica de alta potencia Combinador de sinais e bomba multimodo de fibra óptica de alta potência Pompe multimode à fibre optique haute puissance et combinateur laser de combinaison de signaux suuritehoinen optinen kuitu Multimode Pump ja Signal Combiner laseryhdistin Hochleistungs-Glasfaser-Multimode-Pump- und Signal-Kombinierer-Laserkombinierer (18+1)x1 18+1x1 19x1 SMF-28 SMF28 SM1950 SM2000 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave FMPS 1900nm 1880nm 1885nm 1890nm 1895nm 1905nm 1910nm 1915nm 1920nm 1925nm 1930nm high power optical fiber Multimode Pump and Signal Combiner laser wielomodowa pompa ?wiat?owodowa du?ej mocy i ??cznik laserowy Signal Combiner combinatore laser combinatore di segnali e pompa multimodale in fibra ottica ad alta potenza Combinador láser de bomba multimodo y señal de fibra óptica de alta potencia Combinador de sinais e bomba multimodo de fibra óptica de alta potência Pompe multimode à fibre optique haute puissance et combinateur laser de combinaison de signaux suuritehoinen optinen kuitu Multimode Pump ja Signal Combiner laseryhdistin Hochleistungs-Glasfaser-Multimode-Pump- und Signal-Kombinierer-Laserkombinierer (18+1)x1 18+1x1 19x1 SMF-28 SMF28 SM1950 SM2000 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave FMPS 1900nm 1880nm 1885nm 1890nm 1895nm 1905nm 1910nm 1915nm 1920nm 1925nm 1930nm high power optical fiber Multimode Pump and Signal Combiner laser wielomodowa pompa ?wiat?owodowa du?ej mocy i ??cznik laserowy Signal Combiner combinatore laser combinatore di segnali e pompa multimodale in fibra ottica ad alta potenza Combinador láser de bomba multimodo y señal de fibra óptica de alta potencia Combinador de sinais e bomba multimodo de fibra óptica de alta potência Pompe multimode à fibre optique haute puissance et combinateur laser de combinaison de signaux suuritehoinen optinen kuitu Multimode Pump ja Signal Combiner laseryhdistin Hochleistungs-Glasfaser-Multimode-Pump- und Signal-Kombinierer-Laserkombinierer (18+1)x1 18+1x1 19x1 SMF-28 SMF28 SM1950 SM2000 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave FMPS 1900nm 1880nm 1885nm 1890nm 1895nm 1905nm 1910nm 1915nm 1920nm 1925nm 1930nm high power optical fiber Multimode Pump and Signal Combiner laser wielomodowa pompa ?wiat?owodowa du?ej mocy i ??cznik laserowy Signal Combiner combinatore laser combinatore di segnali e pompa multimodale in fibra ottica ad alta potenza Combinador láser de bomba multimodo y señal de fibra óptica de alta potencia Combinador de sinais e bomba multimodo de fibra óptica de alta potência Pompe multimode à fibre optique haute puissance et combinateur laser de combinaison de signaux suuritehoinen optinen kuitu Multimode Pump ja Signal Combiner laseryhdistin Hochleistungs-Glasfaser-Multimode-Pump- und Signal-Kombinierer-Laserkombinierer (18+1)x1 18+1x1 19x1 SMF-28 SMF28 SM1950 SM2000 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave 7990 8190 8390 8590 7890 9190 9390 9590 9790 9890 1590
TYPICAL SPECIFICATIONS
Pump Wavelength 793nm, 808nm, 830nm, 915nm, 950nm, 975nm, 980nm, 1550nm
Signal Wavelength 1900nm
Configuration (18+1)x1
Input Pump Fiber 105/125um NA=0.12(D), NA=0.15(B) or NA=0.22(A)
106.5/125um NA=0.22(J), 200/220um, NA=0.22(C),
220/242um NA=0.22(C1), or specified by customer
Signal Fiber & Common Fiber SMF-28 Fiber(S), SM1950 Fiber(V), 10/130um NA=0.15(O),
25/250um NA=0.09(R), 25/400um NA=0.09(R4),
or specified by customer
Pump Direction Forward Pump or Backward Pump
Signal Insertion Loss <=0.8dB
Max. Pump Power per Port (CW) 25W, 50W, 100W, 200W, 300W, 500W, 1000W
Max. Input Signal Power (CW) 10W, 50W, 100W, 200W, 500W, 1000W, 2000W
Pump Efficiency >=90%
Operating Temperature 0~50degreeC

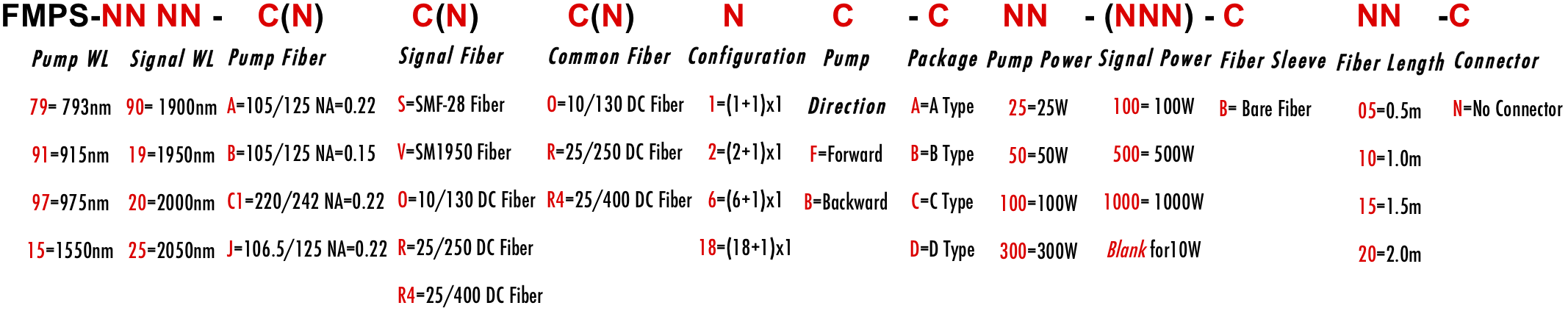

ORDERING INFORMATION/PART NUMBER(PN)
