2050nm (2+1)x1 Multimode Pump & Signal PM Combiner
DESCRIPTION
Haphit provides fiber based passive components. The Optical Multimode Pump & Signal PM Combiner is made by Fusion Splice technology with PM fiber in and PM fiber out. It features High Coupling Ratio and Various Configuration. The Optical Multimode Pump & Signal PM Combiner will combine 2 or more channels of high power pump light into one multimode fiber and output. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FMSP 2050nm 2030nm 2035nm 2040nm 2045nm 2055nm 2060nm 2065nm 2070nm 2075nm 2080nm 2085nm 2090nm 2095nm 2100nm high power optical fiber Multimode Pump and Signal PM Combiner laser wielomodowa pompa ?wiat?owodowa du?ej mocy i ??cznik laserowy Signal PM Combiner combinatore laser combinatore di segnali e pompa multimodale in fibra ottica ad alta potenza Combinador láser de bomba multimodo y señal de fibra óptica de alta potencia Combinador de sinais e bomba multimodo de fibra óptica de alta potência Pompe multimode à fibre optique haute puissance et combinateur laser de combinaison de signaux suuritehoinen optinen kuitu Multimode Pump ja Signal PM Combiner laseryhdistin Hochleistungs-Glasfaser-Multimode-Pump- und Signal-Kombinierer-Laserkombinierer (2+1)x1 2+1x1 3x1 PM1550 PM1950 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave FMSP 2050nm 2030nm 2035nm 2040nm 2045nm 2055nm 2060nm 2065nm 2070nm 2075nm 2080nm 2085nm 2090nm 2095nm 2100nm high power optical fiber Multimode Pump and Signal PM Combiner laser wielomodowa pompa ?wiat?owodowa du?ej mocy i ??cznik laserowy Signal PM Combiner combinatore laser combinatore di segnali e pompa multimodale in fibra ottica ad alta potenza Combinador láser de bomba multimodo y señal de fibra óptica de alta potencia Combinador de sinais e bomba multimodo de fibra óptica de alta potência Pompe multimode à fibre optique haute puissance et combinateur laser de combinaison de signaux suuritehoinen optinen kuitu Multimode Pump ja Signal PM Combiner laseryhdistin Hochleistungs-Glasfaser-Multimode-Pump- und Signal-Kombinierer-Laserkombinierer (2+1)x1 2+1x1 3x1 PM1550 PM1950 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave FMSP 2050nm 2030nm 2035nm 2040nm 2045nm 2055nm 2060nm 2065nm 2070nm 2075nm 2080nm 2085nm 2090nm 2095nm 2100nm high power optical fiber Multimode Pump and Signal PM Combiner laser wielomodowa pompa ?wiat?owodowa du?ej mocy i ??cznik laserowy Signal PM Combiner combinatore laser combinatore di segnali e pompa multimodale in fibra ottica ad alta potenza Combinador láser de bomba multimodo y señal de fibra óptica de alta potencia Combinador de sinais e bomba multimodo de fibra óptica de alta potência Pompe multimode à fibre optique haute puissance et combinateur laser de combinaison de signaux suuritehoinen optinen kuitu Multimode Pump ja Signal PM Combiner laseryhdistin Hochleistungs-Glasfaser-Multimode-Pump- und Signal-Kombinierer-Laserkombinierer (2+1)x1 2+1x1 3x1 PM1550 PM1950 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave FMSP 2050nm 2030nm 2035nm 2040nm 2045nm 2055nm 2060nm 2065nm 2070nm 2075nm 2080nm 2085nm 2090nm 2095nm 2100nm high power optical fiber Multimode Pump and Signal PM Combiner laser wielomodowa pompa ?wiat?owodowa du?ej mocy i ??cznik laserowy Signal PM Combiner combinatore laser combinatore di segnali e pompa multimodale in fibra ottica ad alta potenza Combinador láser de bomba multimodo y señal de fibra óptica de alta potencia Combinador de sinais e bomba multimodo de fibra óptica de alta potência Pompe multimode à fibre optique haute puissance et combinateur laser de combinaison de signaux suuritehoinen optinen kuitu Multimode Pump ja Signal PM Combiner laseryhdistin Hochleistungs-Glasfaser-Multimode-Pump- und Signal-Kombinierer-Laserkombinierer (2+1)x1 2+1x1 3x1 PM1550 PM1950 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave 7925 7825 8125 8325 8525 9125 9325 9525 9725 9825 1525
TYPICAL SPECIFICATIONS
Pump Wavelength 793nm, 808nm, 830nm, 915nm, 950nm, 975nm, 980nm, 1550nm
Signal Wavelength 2050nm
Configuration (2+1)x1
Input Pump Fiber 105/125um NA=0.12(D), NA=0.15(B) or NA=0.22(A)
106.5/125um NA=0.22(J), 200/220um, NA=0.22(C),
220/242um NA=0.22(C1), or specified by customer
Signal Fiber & Common Fiber PM1550 Fiber(S), PM1950 Fiber(V), 10/130um NA=0.15(O),
25/250um NA=0.09(R), 25/400um NA=0.09(R4),
or specified by customer
Pump Direction Forward Pump or Backward Pump
Signal Insertion Loss/Extinction Ratio <=0.5dB/>=16dB
Max. Pump Power per Port (CW) 25W, 50W, 100W, 200W, 300W, 500W, 1000W
Max. Input Signal Power (CW) 10W, 50W, 100W, 200W, 500W, 1000W, 2000W
Pump Efficiency >=90%
Operating Temperature 0~50degreeC

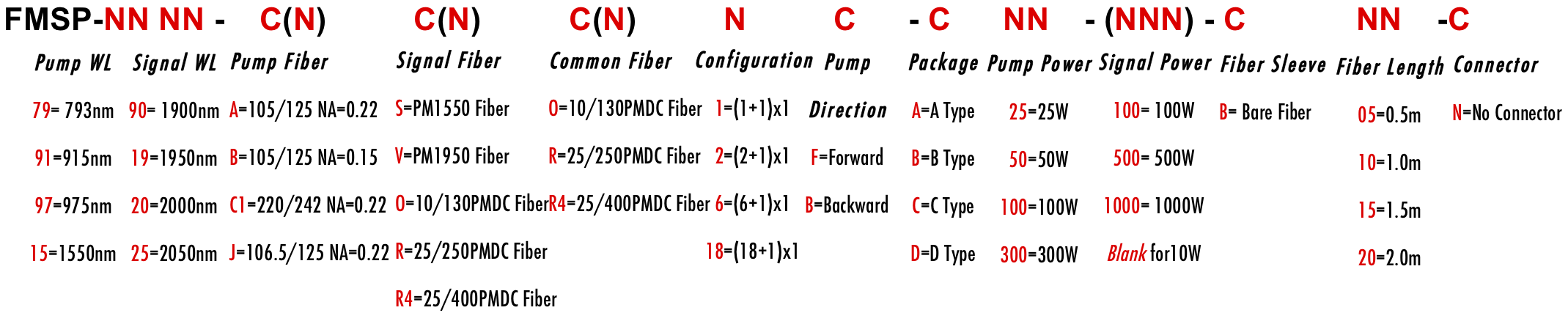

ORDERING INFORMATION/PART NUMBER(PN)
