2050nm (4+1)x1 Multimode Pump & Signal Combiner for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The Optical Multimode Pump & Signal Combiner is made by Fusion Splice technology with fiber in and fiber out. It features High Coupling Ratio and Various Configuration. The Optical Multimode Pump & Signal Combiner will combine 2 or more channels of high power pump light into one multimode fiber and output. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FMPS 2050nm 2030nm 2035nm 2040nm 2045nm 2055nm 2060nm 2065nm 2070nm 2075nm 2080nm 2085nm 2090nm 2095nm 2100nm high power optical fiber Multimode Pump and Signal Combiner laser wielomodowa pompa ?wiat?owodowa du?ej mocy i ??cznik laserowy Signal Combiner combinatore laser combinatore di segnali e pompa multimodale in fibra ottica ad alta potenza Combinador láser de bomba multimodo y señal de fibra óptica de alta potencia Combinador de sinais e bomba multimodo de fibra óptica de alta potência Pompe multimode à fibre optique haute puissance et combinateur laser de combinaison de signaux suuritehoinen optinen kuitu Multimode Pump ja Signal Combiner laseryhdistin Hochleistungs-Glasfaser-Multimode-Pump- und Signal-Kombinierer-Laserkombinierer (4+1)x1 4+1x1 5x1 SMF-28 SMF28 SM1950 SM2000 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W 1kW 2kW 3kW 5kW 10kW 15kW 20kW 50kW 100k 200kW Waverage peak ns ps fs kW Watt Watts HP FMPS 2050nm 2030nm 2035nm 2040nm 2045nm 2055nm 2060nm 2065nm 2070nm 2075nm 2080nm 2085nm 2090nm 2095nm 2100nm high power optical fiber Multimode Pump and Signal Combiner laser wielomodowa pompa ?wiat?owodowa du?ej mocy i ??cznik laserowy Signal Combiner combinatore laser combinatore di segnali e pompa multimodale in fibra ottica ad alta potenza Combinador láser de bomba multimodo y señal de fibra óptica de alta potencia Combinador de sinais e bomba multimodo de fibra óptica de alta potência Pompe multimode à fibre optique haute puissance et combinateur laser de combinaison de signaux suuritehoinen optinen kuitu Multimode Pump ja Signal Combiner laseryhdistin Hochleistungs-Glasfaser-Multimode-Pump- und Signal-Kombinierer-Laserkombinierer (4+1)x1 4+1x1 5x1 SMF-28 SMF28 SM1950 SM2000 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W 1kW 2kW 3kW 5kW 10kW 15kW 20kW 50kW 100k 200kW Waverage peak ns ps fs kW Watt Watts HP FMPS 2050nm 2030nm 2035nm 2040nm 2045nm 2055nm 2060nm 2065nm 2070nm 2075nm 2080nm 2085nm 2090nm 2095nm 2100nm high power optical fiber Multimode Pump and Signal Combiner laser wielomodowa pompa ?wiat?owodowa du?ej mocy i ??cznik laserowy Signal Combiner combinatore laser combinatore di segnali e pompa multimodale in fibra ottica ad alta potenza Combinador láser de bomba multimodo y señal de fibra óptica de alta potencia Combinador de sinais e bomba multimodo de fibra óptica de alta potência Pompe multimode à fibre optique haute puissance et combinateur laser de combinaison de signaux suuritehoinen optinen kuitu Multimode Pump ja Signal Combiner laseryhdistin Hochleistungs-Glasfaser-Multimode-Pump- und Signal-Kombinierer-Laserkombinierer (4+1)x1 4+1x1 5x1 SMF-28 SMF28 SM1950 SM2000 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W 1kW 2kW 3kW 5kW 10kW 15kW 20kW 50kW 100k 200kW Waverage peak ns ps fs kW Watt Watts HP FMPS 2050nm 2030nm 2035nm 2040nm 2045nm 2055nm 2060nm 2065nm 2070nm 2075nm 2080nm 2085nm 2090nm 2095nm 2100nm high power optical fiber Multimode Pump and Signal Combiner laser wielomodowa pompa ?wiat?owodowa du?ej mocy i ??cznik laserowy Signal Combiner combinatore laser combinatore di segnali e pompa multimodale in fibra ottica ad alta potenza Combinador láser de bomba multimodo y señal de fibra óptica de alta potencia Combinador de sinais e bomba multimodo de fibra óptica de alta potência Pompe multimode à fibre optique haute puissance et combinateur laser de combinaison de signaux suuritehoinen optinen kuitu Multimode Pump ja Signal Combiner laseryhdistin Hochleistungs-Glasfaser-Multimode-Pump- und Signal-Kombinierer-Laserkombinierer (4+1)x1 4+1x1 5x1 SMF-28 SMF28 SM1950 SM2000 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W 1kW 2kW 3kW 5kW 10kW 15kW 20kW 50kW 100k 200kW Waverage peak ns ps fs kW Watt Watts HP 7925 7825 8125 8325 8525 9125 9325 9525 9725 9825 1525
TYPICAL SPECIFICATIONS
Pump Wavelength 793nm, 808nm, 830nm, 915nm, 950nm, 975nm, 980nm, 1550nm
Signal Wavelength 2050nm
Configuration (4+1)x1
Input Pump Fiber 105/125um NA=0.12(D), NA=0.15(B) or NA=0.22(A)
106.5/125um NA=0.22(J), 200/220um, NA=0.22(C),
220/242um NA=0.22(C1), or specified by customer
Signal Fiber & Common Fiber SMF-28 Fiber(S), SM1950 Fiber(V), 10/130um NA=0.15(O),
25/250um NA=0.09(R), 25/400um NA=0.09(R4),
or specified by customer
Pump Direction Forward Pump or Backward Pump
Signal Insertion Loss <=0.7dB
Max. Pump Power per Port 25W, 50W, 100W, 200W, 300W, 500W, 1000W
Max. Input Signal Power 10W, 50W, 100W, 200W, 500W, 1000W, 2000W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW, 50kW, 100kW
Pump Efficiency >=90%
Operating Temperature 0~50degreeC

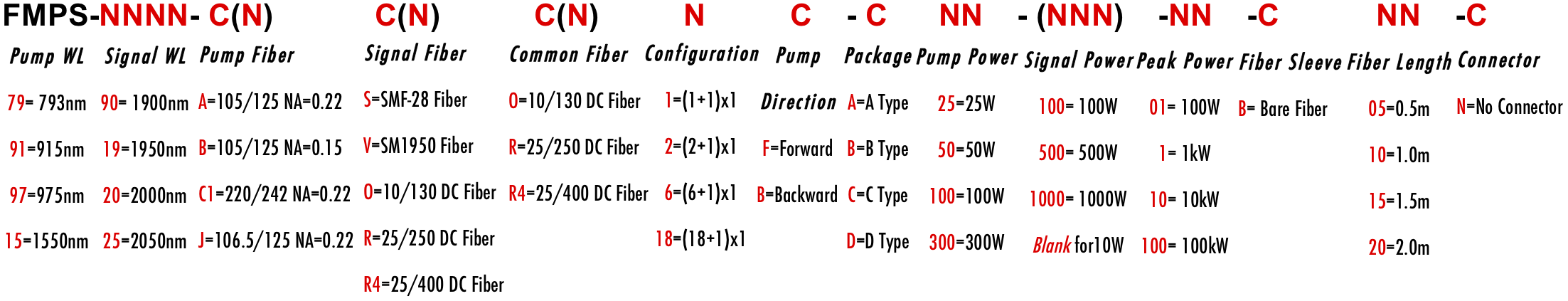

ORDERING INFORMATION/PART NUMBER(PN)
