1080nm (1+1)x1 Multimode Pump & Signal Combiner for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The Optical Multimode Pump & Signal Combiner is made by Fusion Splice technology with fiber in and fiber out. It features High Coupling Ratio and Various Configuration. The Optical Multimode Pump & Signal Combiner will combine 2 or more channels of high power pump light into one multimode fiber and output. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FMPS 1080nm 1070nm 1092nm 1072nm 1075nm 1083nm 1085nm 1084nm high power optical fiber Multimode Pump and Signal Combiner laser wielomodowa pompa ?wiat?owodowa du?ej mocy i ??cznik laserowy Signal Combiner combinatore laser combinatore di segnali e pompa multimodale in fibra ottica ad alta potenza Combinador láser de bomba multimodo y señal de fibra óptica de alta potencia Combinador de sinais e bomba multimodo de fibra óptica de alta potência Pompe multimode à fibre optique haute puissance et combinateur laser de combinaison de signaux suuritehoinen optinen kuitu Multimode Pump ja Signal Combiner laseryhdistin Hochleistungs-Glasfaser-Multimode-Pump- und Signal-Kombinierer-Laserkombinierer (1+1)x1 1+1x1 2x1 HI1060 1060XP 6/125um 5/130um 10/125um 10/130um 20/125um 15/125um 15/130um 20/130um 25/250um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W 1kW 2kW 3kW 5kW 10kW 15kW 20kW 50kW 100k 200kW Waverage peak ns ps fs kW Watt Watts HP FMPS 1080nm 1070nm 1092nm 1072nm 1075nm 1083nm 1085nm 1084nm high power optical fiber Multimode Pump and Signal Combiner laser wielomodowa pompa ?wiat?owodowa du?ej mocy i ??cznik laserowy Signal Combiner combinatore laser combinatore di segnali e pompa multimodale in fibra ottica ad alta potenza Combinador láser de bomba multimodo y señal de fibra óptica de alta potencia Combinador de sinais e bomba multimodo de fibra óptica de alta potência Pompe multimode à fibre optique haute puissance et combinateur laser de combinaison de signaux suuritehoinen optinen kuitu Multimode Pump ja Signal Combiner laseryhdistin Hochleistungs-Glasfaser-Multimode-Pump- und Signal-Kombinierer-Laserkombinierer (1+1)x1 1+1x1 2x1 HI1060 1060XP 6/125um 5/130um 10/125um 10/130um 20/125um 15/125um 15/130um 20/130um 25/250um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W 1kW 2kW 3kW 5kW 10kW 15kW 20kW 50kW 100k 200kW Waverage peak ns ps fs kW Watt Watts HP FMPS 1080nm 1070nm 1092nm 1072nm 1075nm 1083nm 1085nm 1084nm high power optical fiber Multimode Pump and Signal Combiner laser wielomodowa pompa ?wiat?owodowa du?ej mocy i ??cznik laserowy Signal Combiner combinatore laser combinatore di segnali e pompa multimodale in fibra ottica ad alta potenza Combinador láser de bomba multimodo y señal de fibra óptica de alta potencia Combinador de sinais e bomba multimodo de fibra óptica de alta potência Pompe multimode à fibre optique haute puissance et combinateur laser de combinaison de signaux suuritehoinen optinen kuitu Multimode Pump ja Signal Combiner laseryhdistin Hochleistungs-Glasfaser-Multimode-Pump- und Signal-Kombinierer-Laserkombinierer (1+1)x1 1+1x1 2x1 HI1060 1060XP 6/125um 5/130um 10/125um 10/130um 20/125um 15/125um 15/130um 20/130um 25/250um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W 1kW 2kW 3kW 5kW 10kW 15kW 20kW 50kW 100k 200kW Waverage peak ns ps fs kW Watt Watts HP FMPS 1080nm 1070nm 1092nm 1072nm 1075nm 1083nm 1085nm 1084nm high power optical fiber Multimode Pump and Signal Combiner laser wielomodowa pompa ?wiat?owodowa du?ej mocy i ??cznik laserowy Signal Combiner combinatore laser combinatore di segnali e pompa multimodale in fibra ottica ad alta potenza Combinador láser de bomba multimodo y señal de fibra óptica de alta potencia Combinador de sinais e bomba multimodo de fibra óptica de alta potência Pompe multimode à fibre optique haute puissance et combinateur laser de combinaison de signaux suuritehoinen optinen kuitu Multimode Pump ja Signal Combiner laseryhdistin Hochleistungs-Glasfaser-Multimode-Pump- und Signal-Kombinierer-Laserkombinierer (1+1)x1 1+1x1 2x1 HI1060 1060XP 6/125um 5/130um 10/125um 10/130um 20/125um 15/125um 15/130um 20/130um 25/250um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W 1kW 2kW 3kW 5kW 10kW 15kW 20kW 50kW 100k 200kW Waverage peak ns ps fs kW Watt Watts HP 9102 9302 9502 9702 9802
TYPICAL SPECIFICATIONS
Pump Wavelength 915nm, 950nm, 975nm, 980nm
Signal Wavelength 1080nm
Configuration (1+1)x1
Input Pump Fiber 105/125um NA=0.12(D), NA=0.15(B) or NA=0.22(A)
106.5/125um NA=0.22(J), 200/220um, NA=0.22(C),
220/242um NA=0.22(C1), or specified by customer
Signal Fiber & Common Fiber HI1060 Fiber(H), 6/125um NA=0.14(N), 5/130um NA=0.12(N1),
10/125um NA=0.075(O), 15/130um NA=0.075(W), 20/130um NA=0.075(Q),
Signal Fiber & Common Fiber 25/250um NA=0.065(R), 25/400um NA=0.065(R1), 30/250um NA=0.06(R6),
30/400um NA=0.06(R3) or specified by customer
Pump Direction Forward Pump or Backward Pump
Signal Insertion Loss <=0.5dB
Max. Pump Power per Port 25W, 50W, 100W, 200W, 300W, 500W, 1000W
Max. Input Signal Power 10W, 50W, 100W, 200W, 500W, 1000W, 2000W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW, 50kW, 100kW
Pump Efficiency >=90%
Operating Temperature 0~50degreeC

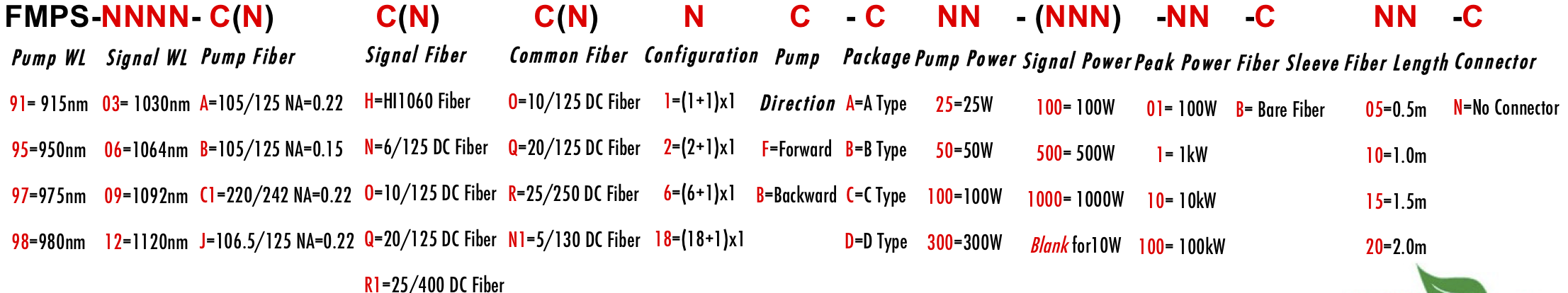

ORDERING INFORMATION/PART NUMBER(PN)
