1150nm (4+1)x1 Multimode Pump & Signal PM Combiner
DESCRIPTION
Haphit provides fiber based passive components. The Optical Multimode Pump & Signal PM Combiner is made by Fusion Splice technology with PM fiber in and PM fiber out. It features High Coupling Ratio and Various Configuration. The Optical Multimode Pump & Signal PM Combiner will combine 2 or more channels of high power pump light into one multimode fiber and output. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FMSP 1150nm 1130nm 1200nm 1135nm 1136nm 1140nm 1145nm 1155nm 1160nm 1165nm 1170nm 1175nm 1180nm 1185nm 1190nm 1195nm high power optical fiber Multimode Pump and Signal PM Combiner laser wielomodowa pompa ?wiat?owodowa du?ej mocy i ??cznik laserowy Signal PM Combiner combinatore laser combinatore di segnali e pompa multimodale in fibra ottica ad alta potenza Combinador láser de bomba multimodo y señal de fibra óptica de alta potencia Combinador de sinais e bomba multimodo de fibra óptica de alta potência Pompe multimode à fibre optique haute puissance et combinateur laser de combinaison de signaux suuritehoinen optinen kuitu Multimode Pump ja Signal PM Combiner laseryhdistin Hochleistungs-Glasfaser-Multimode-Pump- und Signal-Kombinierer-Laserkombinierer (4+1)x1 4+1x1 5x1 PM980 PM1060LFA 6/125um 5/130um 10/125um 10/130um 20/125um 15/125um 15/130um 20/130um 25/250um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave FMSP 1150nm 1130nm 1200nm 1135nm 1136nm 1140nm 1145nm 1155nm 1160nm 1165nm 1170nm 1175nm 1180nm 1185nm 1190nm 1195nm high power optical fiber Multimode Pump and Signal PM Combiner laser wielomodowa pompa ?wiat?owodowa du?ej mocy i ??cznik laserowy Signal PM Combiner combinatore laser combinatore di segnali e pompa multimodale in fibra ottica ad alta potenza Combinador láser de bomba multimodo y señal de fibra óptica de alta potencia Combinador de sinais e bomba multimodo de fibra óptica de alta potência Pompe multimode à fibre optique haute puissance et combinateur laser de combinaison de signaux suuritehoinen optinen kuitu Multimode Pump ja Signal PM Combiner laseryhdistin Hochleistungs-Glasfaser-Multimode-Pump- und Signal-Kombinierer-Laserkombinierer (4+1)x1 4+1x1 5x1 PM980 PM1060LFA 6/125um 5/130um 10/125um 10/130um 20/125um 15/125um 15/130um 20/130um 25/250um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave FMSP 1150nm 1130nm 1200nm 1135nm 1136nm 1140nm 1145nm 1155nm 1160nm 1165nm 1170nm 1175nm 1180nm 1185nm 1190nm 1195nm high power optical fiber Multimode Pump and Signal PM Combiner laser wielomodowa pompa ?wiat?owodowa du?ej mocy i ??cznik laserowy Signal PM Combiner combinatore laser combinatore di segnali e pompa multimodale in fibra ottica ad alta potenza Combinador láser de bomba multimodo y señal de fibra óptica de alta potencia Combinador de sinais e bomba multimodo de fibra óptica de alta potência Pompe multimode à fibre optique haute puissance et combinateur laser de combinaison de signaux suuritehoinen optinen kuitu Multimode Pump ja Signal PM Combiner laseryhdistin Hochleistungs-Glasfaser-Multimode-Pump- und Signal-Kombinierer-Laserkombinierer (4+1)x1 4+1x1 5x1 PM980 PM1060LFA 6/125um 5/130um 10/125um 10/130um 20/125um 15/125um 15/130um 20/130um 25/250um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave FMSP 1150nm 1130nm 1200nm 1135nm 1136nm 1140nm 1145nm 1155nm 1160nm 1165nm 1170nm 1175nm 1180nm 1185nm 1190nm 1195nm high power optical fiber Multimode Pump and Signal PM Combiner laser wielomodowa pompa ?wiat?owodowa du?ej mocy i ??cznik laserowy Signal PM Combiner combinatore laser combinatore di segnali e pompa multimodale in fibra ottica ad alta potenza Combinador láser de bomba multimodo y señal de fibra óptica de alta potencia Combinador de sinais e bomba multimodo de fibra óptica de alta potência Pompe multimode à fibre optique haute puissance et combinateur laser de combinaison de signaux suuritehoinen optinen kuitu Multimode Pump ja Signal PM Combiner laseryhdistin Hochleistungs-Glasfaser-Multimode-Pump- und Signal-Kombinierer-Laserkombinierer (4+1)x1 4+1x1 5x1 PM980 PM1060LFA 6/125um 5/130um 10/125um 10/130um 20/125um 15/125um 15/130um 20/130um 25/250um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave 911150 931150 951150 971150 981150
TYPICAL SPECIFICATIONS
Pump Wavelength 915nm, 950nm, 975nm, 980nm
Signal Wavelength 1150nm
Configuration (4+1)x1
Input Pump Fiber 105/125um NA=0.12(D), NA=0.15(B) or NA=0.22(A)
106.5/125um NA=0.22(J), 200/220um, NA=0.22(C),
220/242um NA=0.22(C1), or specified by customer
Signal Fiber & Common Fiber PM980 Fiber(H), PM1060L Fiber (E), 6/125um NA=0.14(N),
5/130um NA=0.12(N1), 10/125um NA=0.075(O), 15/130um NA=0.075(W),
Signal Fiber & Common Fiber 20/130um NA=0.075(Q), 25/250um NA=0.065(R), 25/400um NA=0.065(R1),
30/250um NA=0.06(R6), 30/400um NA=0.06(R3) or specified by customer
Pump Direction Forward Pump or Backward Pump
Signal Insertion Loss/Extinction Ratio <=0.7dB/>=16dB
Max. Pump Power per Port (CW) 25W, 50W, 100W, 200W, 300W, 500W, 1000W
Max. Input Signal Power (CW) 10W, 50W, 100W, 200W, 500W, 1000W, 2000W
Pump Efficiency >=90%
Operating Temperature 0~50degreeC

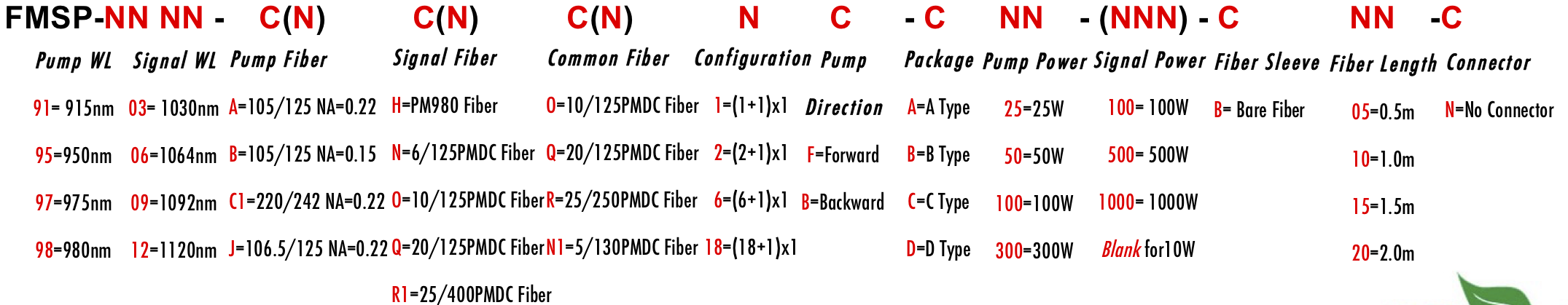

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
