1900nm 7X1 Laser Beam Combiner
DESCRIPTION
Haphit provides fiber based passive components. The Optical Laser Beam Combiner is made by Fusion Splice technology with fiber in and fiber out. It features High Coupling Ratio and Various Configuration. The Optical Laser Beam Combiner will combine 2 or more channels of high power laser light into one beam delivery fiber and output. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FMLC 1900nm 1850nm 1855nm 1860nm 1865nm 1870nm 1875nm 1880nm 1885nm 1890nm 1895nm 1905nm 1910nm 1015nm 1920nm 1925nm 1930nm high power optical fiber Laser Beam Combiner Combinador de haz láser de fibra óptica de alta potencia suuritehoinen optinen kuitulasersädeyhdistin Combinateur de faisceau laser à fibre optique haute puissance Hochleistungs-Laserstrahlkombinierer für optische Fasern Combinador de feixe de laser de fibra óptica de alta potência Wysokowydajny ?wiat?owodowy ??cznik wi?zki laserowej vysokovýkonný kombinátor laserových paprsk? z optických vláken 7X1 LMA 8/125um 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um 50/360um 100/360um 200/360um 400/660um 600/720um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave FMLC 1900nm 1850nm 1855nm 1860nm 1865nm 1870nm 1875nm 1880nm 1885nm 1890nm 1895nm 1905nm 1910nm 1015nm 1920nm 1925nm 1930nm high power optical fiber Laser Beam Combiner Combinador de haz láser de fibra óptica de alta potencia suuritehoinen optinen kuitulasersädeyhdistin Combinateur de faisceau laser à fibre optique haute puissance Hochleistungs-Laserstrahlkombinierer für optische Fasern Combinador de feixe de laser de fibra óptica de alta potência Wysokowydajny ?wiat?owodowy ??cznik wi?zki laserowej vysokovýkonný kombinátor laserových paprsk? z optických vláken 7X1 LMA 8/125um 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um 50/360um 100/360um 200/360um 400/660um 600/720um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave FMLC 1900nm 1850nm 1855nm 1860nm 1865nm 1870nm 1875nm 1880nm 1885nm 1890nm 1895nm 1905nm 1910nm 1015nm 1920nm 1925nm 1930nm high power optical fiber Laser Beam Combiner Combinador de haz láser de fibra óptica de alta potencia suuritehoinen optinen kuitulasersädeyhdistin Combinateur de faisceau laser à fibre optique haute puissance Hochleistungs-Laserstrahlkombinierer für optische Fasern Combinador de feixe de laser de fibra óptica de alta potência Wysokowydajny ?wiat?owodowy ??cznik wi?zki laserowej vysokovýkonný kombinátor laserových paprsk? z optických vláken 7X1 LMA 8/125um 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um 50/360um 100/360um 200/360um 400/660um 600/720um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave FMLC 1900nm 1850nm 1855nm 1860nm 1865nm 1870nm 1875nm 1880nm 1885nm 1890nm 1895nm 1905nm 1910nm 1015nm 1920nm 1925nm 1930nm high power optical fiber Laser Beam Combiner Combinador de haz láser de fibra óptica de alta potencia suuritehoinen optinen kuitulasersädeyhdistin Combinateur de faisceau laser à fibre optique haute puissance Hochleistungs-Laserstrahlkombinierer für optische Fasern Combinador de feixe de laser de fibra óptica de alta potência Wysokowydajny ?wiat?owodowy ??cznik wi?zki laserowej vysokovýkonný kombinátor laserových paprsk? z optických vláken 7X1 LMA 8/125um 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um 50/360um 100/360um 200/360um 400/660um 600/720um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave 7
TYPICAL SPECIFICATIONS
Laser Signal Wavelength 1900nm
Configuration 7X1
Input Pump Fiber 6/125um NA=0.14(N), 5/130um NA=0.12(N1),
8/125um NA=0.12(M), 6/125um NA=0.18(M1),
10/125um NA=0.075(O), 10/130um NA=0.15(O1),
Input Pump Fiber 15/130um NA=0.075(W), 20/130um NA=0.075(Q),
25/250um NA=0.065(R), 25/300um NA=0.09(G),
25/250um NA=0.09(R2), 25/400um NA=0.065(R1),
Input Pump Fiber 30/250um NA=0.06(R6), 30/400um NA=0.06(R3),
25/400um NA=0.09(R4), or specified by customer
Output Fiber 25/250um NA=0.11(BQ2), 50/360um NA=0.22(BH3),
100/360um NA=0.22(B13), 200/360um, NA=0.22(B23),
Output Fiber 400/660um NA=0.22(B46), 600/720um NA=0.22(B67),
or specified by customer,
Max. Input Laser Power per Port 100W, 300W, 500W, 1kW, 2kW
Coupling Efficiency >=95%
Operating Temperature 0~50degreeC

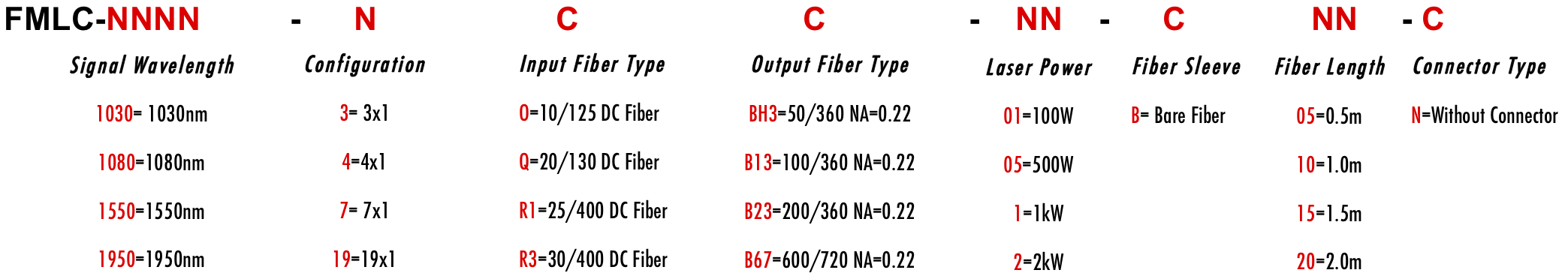

ORDERING INFORMATION/PART NUMBER(PN)
