1590nm PM Cladding Power Stripper for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The PM Cladding Power Stripper is made by Fusion Splice technology with PM fiber in and PM fiber out. It features High Strip Ratio and High Optical Power. The PM Cladding Power Stripper will trasmit the signal power and at the same time remove the residual pump light in the cladding. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
PCTP 1570nm 1575nm 1580nm 1585nm 1590nm 1595nm 1600nm 1605nm 1610nm 1615nm 1620nm 1625nm 1630nm 1640nm 1650nm high power optical fiber multimode pump cladding power stripper stripped stripping clad remover vysoce výkonné optické vlákno multimode ?erpadlo oplášt?ní power stripper odizolované odizolované odlakova? Wysokowydajny ?wiat?owodowy wielomodowy p?aszcz pompy Power stripper stripped stripping clad Remover removedor de revestimento de stripper stripper stripping de alta potência para bomba de fibra óptica multimodo Revestimiento de bomba multimodo de fibra óptica de alta potencia Hochleistungs-Glasfaser-Multimode-Pumpenverkleidung Power Stripper Stripped Stripping Clad Remover suuritehoinen optisen kuidun monimoodipumppupäällystetty virrankatkaisijan irrotettu kuorintapäällysteinen poisto décapant de puissance de gainage de pompe multimode à fibre optique haute puissance dénudé décapant plaqué ad alta potenza in fibra ottica multimodale rivestimento della pompa potere stripper stripping stripping clad remover (1+1)x1 1+1x1 2x1 PM1550 LMA 8/125um 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W 1kW 2kW 3kW 5kW 10kW 15kW 20kW 50kW 100k 200kW Waverage peak ns ps fs kW Watt Watts HP PCTP 1570nm 1575nm 1580nm 1585nm 1590nm 1595nm 1600nm 1605nm 1610nm 1615nm 1620nm 1625nm 1630nm 1640nm 1650nm high power optical fiber multimode pump cladding power stripper stripped stripping clad remover vysoce výkonné optické vlákno multimode ?erpadlo oplášt?ní power stripper odizolované odizolované odlakova? Wysokowydajny ?wiat?owodowy wielomodowy p?aszcz pompy Power stripper stripped stripping clad Remover removedor de revestimento de stripper stripper stripping de alta potência para bomba de fibra óptica multimodo Revestimiento de bomba multimodo de fibra óptica de alta potencia Hochleistungs-Glasfaser-Multimode-Pumpenverkleidung Power Stripper Stripped Stripping Clad Remover suuritehoinen optisen kuidun monimoodipumppupäällystetty virrankatkaisijan irrotettu kuorintapäällysteinen poisto décapant de puissance de gainage de pompe multimode à fibre optique haute puissance dénudé décapant plaqué ad alta potenza in fibra ottica multimodale rivestimento della pompa potere stripper stripping stripping clad remover (1+1)x1 1+1x1 2x1 PM1550 LMA 8/125um 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W 1kW 2kW 3kW 5kW 10kW 15kW 20kW 50kW 100k 200kW Waverage peak ns ps fs kW Watt Watts HP PCTP 1570nm 1575nm 1580nm 1585nm 1590nm 1595nm 1600nm 1605nm 1610nm 1615nm 1620nm 1625nm 1630nm 1640nm 1650nm high power optical fiber multimode pump cladding power stripper stripped stripping clad remover vysoce výkonné optické vlákno multimode ?erpadlo oplášt?ní power stripper odizolované odizolované odlakova? Wysokowydajny ?wiat?owodowy wielomodowy p?aszcz pompy Power stripper stripped stripping clad Remover removedor de revestimento de stripper stripper stripping de alta potência para bomba de fibra óptica multimodo Revestimiento de bomba multimodo de fibra óptica de alta potencia Hochleistungs-Glasfaser-Multimode-Pumpenverkleidung Power Stripper Stripped Stripping Clad Remover suuritehoinen optisen kuidun monimoodipumppupäällystetty virrankatkaisijan irrotettu kuorintapäällysteinen poisto décapant de puissance de gainage de pompe multimode à fibre optique haute puissance dénudé décapant plaqué ad alta potenza in fibra ottica multimodale rivestimento della pompa potere stripper stripping stripping clad remover (1+1)x1 1+1x1 2x1 PM1550 LMA 8/125um 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W 1kW 2kW 3kW 5kW 10kW 15kW 20kW 50kW 100k 200kW Waverage peak ns ps fs kW Watt Watts HP PCTP 1570nm 1575nm 1580nm 1585nm 1590nm 1595nm 1600nm 1605nm 1610nm 1615nm 1620nm 1625nm 1630nm 1640nm 1650nm high power optical fiber multimode pump cladding power stripper stripped stripping clad remover vysoce výkonné optické vlákno multimode ?erpadlo oplášt?ní power stripper odizolované odizolované odlakova? Wysokowydajny ?wiat?owodowy wielomodowy p?aszcz pompy Power stripper stripped stripping clad Remover removedor de revestimento de stripper stripper stripping de alta potência para bomba de fibra óptica multimodo Revestimiento de bomba multimodo de fibra óptica de alta potencia Hochleistungs-Glasfaser-Multimode-Pumpenverkleidung Power Stripper Stripped Stripping Clad Remover suuritehoinen optisen kuidun monimoodipumppupäällystetty virrankatkaisijan irrotettu kuorintapäällysteinen poisto décapant de puissance de gainage de pompe multimode à fibre optique haute puissance dénudé décapant plaqué ad alta potenza in fibra ottica multimodale rivestimento della pompa potere stripper stripping stripping clad remover (1+1)x1 1+1x1 2x1 PM1550 LMA 8/125um 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W 1kW 2kW 3kW 5kW 10kW 15kW 20kW 50kW 100k 200kW Waverage peak ns ps fs kW Watt Watts HP 9159 9359 9559 9759 9859 1459
TYPICAL SPECIFICATIONS
Pump Wavelength 915nm, 950nm, 975nm, 980nm, 1480nm
Signal Wavelength 1590nm
Fiber Type 8/125um NA=0.12(M), 6/125um NA=0.18(M1),
10/130um NA=0.075(O), 12/130um NA=0.2(T), 15/130um NA=0.075(W),
Fiber Type 20/130um NA=0.075(Q), 25/250um NA=0.065(R), 25/300um NA=0.09(G),
25/400um NA=0.065(R1), 30/250um NA=0.06(R6), 30/400um NA=0.06(R3),
or specified by customer
Signal Insertion Loss <=0.3dB
Signal Extinction Ratio >=16dB
Max. Stripped Pump Power 10W, 30W, 50W, 100W, 300W, 500W, 1000W
Max. Signal Average Power 10W, 50W, 100W, 200W, 500W, 1000W, 2000W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW, 50kW, 100kW
Strip Efficiency >=98%
Operating Temperature 0~50degreeC

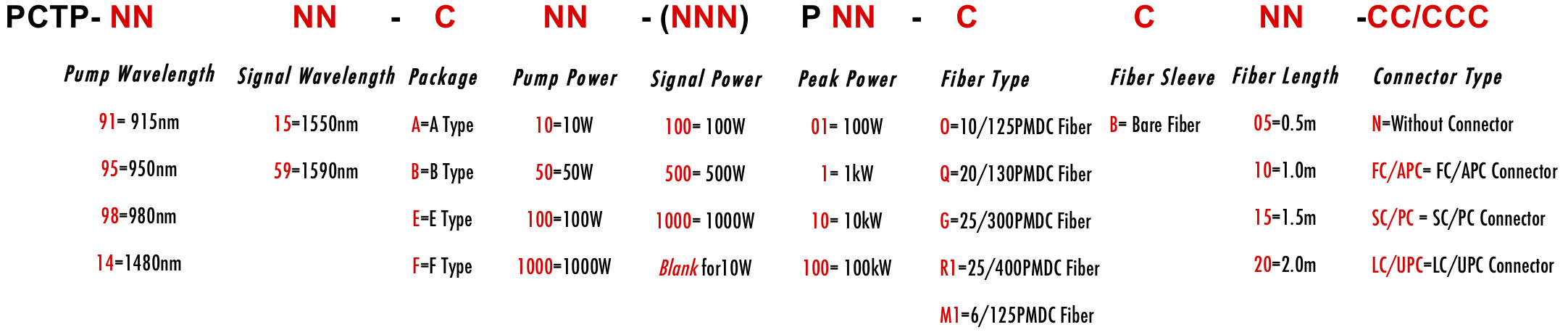

ORDERING INFORMATION/PART NUMBER(PN)
