1950nm PM Cladding Power Stripper

DESCRIPTION
Haphit provides fiber based passive components. The PM Cladding Power Stripper is made by Fusion Splice technology with PM fiber in and PM fiber out. It features High Strip Ratio and High Optical Power. The PM Cladding Power Stripper will trasmit the signal power and at the same time remove the residual pump light in the cladding. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
PCTP 1950nm 1920nm 1925nm 1930nm 1935nm 1940nm 1945nm 1955nm 1960nm 1965nm 1970nm 1975nm 1980nm high power optical fiber multimode pump cladding power stripper stripped stripping clad remover vysoce výkonné optické vlákno multimode ?erpadlo oplášt?ní power stripper odizolované odizolované odlakova? Wysokowydajny ?wiat?owodowy wielomodowy p?aszcz pompy Power stripper stripped stripping clad Remover removedor de revestimento de stripper stripper stripping de alta potência para bomba de fibra óptica multimodo Revestimiento de bomba multimodo de fibra óptica de alta potencia Hochleistungs-Glasfaser-Multimode-Pumpenverkleidung Power Stripper Stripped Stripping Clad Remover suuritehoinen optisen kuidun monimoodipumppupäällystetty virrankatkaisijan irrotettu kuorintapäällysteinen poisto décapant de puissance de gainage de pompe multimode à fibre optique haute puissance dénudé décapant plaqué ad alta potenza in fibra ottica multimodale rivestimento della pompa potere stripper stripping stripping clad remover (1+1)x1 1+1x1 2x1 PM1550 PM1950 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave PCTP 1950nm 1920nm 1925nm 1930nm 1935nm 1940nm 1945nm 1955nm 1960nm 1965nm 1970nm 1975nm 1980nm high power optical fiber multimode pump cladding power stripper stripped stripping clad remover vysoce výkonné optické vlákno multimode ?erpadlo oplášt?ní power stripper odizolované odizolované odlakova? Wysokowydajny ?wiat?owodowy wielomodowy p?aszcz pompy Power stripper stripped stripping clad Remover removedor de revestimento de stripper stripper stripping de alta potência para bomba de fibra óptica multimodo Revestimiento de bomba multimodo de fibra óptica de alta potencia Hochleistungs-Glasfaser-Multimode-Pumpenverkleidung Power Stripper Stripped Stripping Clad Remover suuritehoinen optisen kuidun monimoodipumppupäällystetty virrankatkaisijan irrotettu kuorintapäällysteinen poisto décapant de puissance de gainage de pompe multimode à fibre optique haute puissance dénudé décapant plaqué ad alta potenza in fibra ottica multimodale rivestimento della pompa potere stripper stripping stripping clad remover (1+1)x1 1+1x1 2x1 PM1550 PM1950 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave PCTP 1950nm 1920nm 1925nm 1930nm 1935nm 1940nm 1945nm 1955nm 1960nm 1965nm 1970nm 1975nm 1980nm high power optical fiber multimode pump cladding power stripper stripped stripping clad remover vysoce výkonné optické vlákno multimode ?erpadlo oplášt?ní power stripper odizolované odizolované odlakova? Wysokowydajny ?wiat?owodowy wielomodowy p?aszcz pompy Power stripper stripped stripping clad Remover removedor de revestimento de stripper stripper stripping de alta potência para bomba de fibra óptica multimodo Revestimiento de bomba multimodo de fibra óptica de alta potencia Hochleistungs-Glasfaser-Multimode-Pumpenverkleidung Power Stripper Stripped Stripping Clad Remover suuritehoinen optisen kuidun monimoodipumppupäällystetty virrankatkaisijan irrotettu kuorintapäällysteinen poisto décapant de puissance de gainage de pompe multimode à fibre optique haute puissance dénudé décapant plaqué ad alta potenza in fibra ottica multimodale rivestimento della pompa potere stripper stripping stripping clad remover (1+1)x1 1+1x1 2x1 PM1550 PM1950 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave PCTP 1950nm 1920nm 1925nm 1930nm 1935nm 1940nm 1945nm 1955nm 1960nm 1965nm 1970nm 1975nm 1980nm high power optical fiber multimode pump cladding power stripper stripped stripping clad remover vysoce výkonné optické vlákno multimode ?erpadlo oplášt?ní power stripper odizolované odizolované odlakova? Wysokowydajny ?wiat?owodowy wielomodowy p?aszcz pompy Power stripper stripped stripping clad Remover removedor de revestimento de stripper stripper stripping de alta potência para bomba de fibra óptica multimodo Revestimiento de bomba multimodo de fibra óptica de alta potencia Hochleistungs-Glasfaser-Multimode-Pumpenverkleidung Power Stripper Stripped Stripping Clad Remover suuritehoinen optisen kuidun monimoodipumppupäällystetty virrankatkaisijan irrotettu kuorintapäällysteinen poisto décapant de puissance de gainage de pompe multimode à fibre optique haute puissance dénudé décapant plaqué ad alta potenza in fibra ottica multimodale rivestimento della pompa potere stripper stripping stripping clad remover (1+1)x1 1+1x1 2x1 PM1550 PM1950 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 550W 600W 650W 700W 750W 800W 850W 900W 1000W Watt Watts HP CW Continuous Wave 7919 7819 8119 8319 8519 9119 9319 9519 9719 9819 1519
TYPICAL SPECIFICATIONS
Pump Wavelength 793nm, 808nm, 830nm, 915nm, 950nm, 975nm, 980nm, 1550nm
Signal Wavelength 1950nm
Fiber Type 10/130um NA=0.15(O), 25/250um NA=0.09(R),
25/400um NA=0.09(R4) or specified by customer
Signal Insertion Loss <=0.3dB
Signal Extinction Ratio >=16dB
Max. Stripped Pump Power (CW) 10W, 30W, 50W, 100W, 300W, 500W, 1000W
Max. Signal Power (CW) 10W, 50W, 100W, 200W, 500W, 1000W, 2000W
Strip Efficiency >=98%
Operating Temperature 0~50degreeC

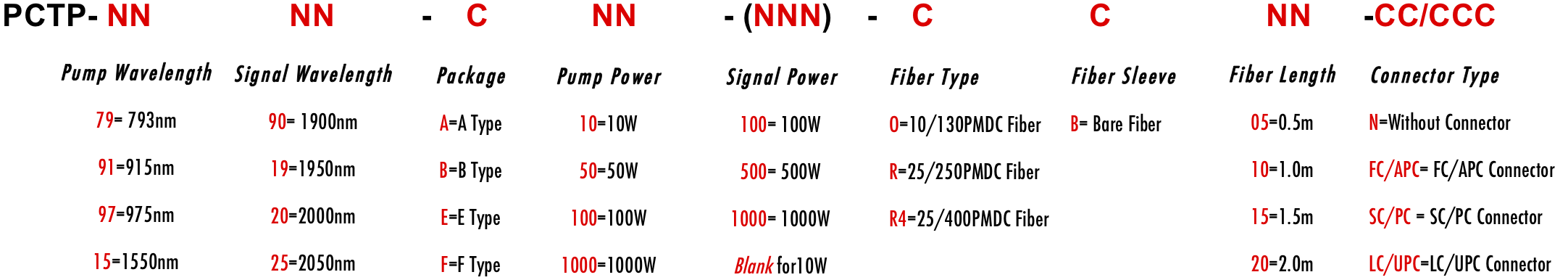

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
