1900nm PM Mode Field Adapter

DESCRIPTION
Haphit provides fiber based passive components. The PM Mode Field Adapter is made by Fusion Splice technology with PM fiber in and PM fiber out. It features Low Insertion Loss and High Optical Power. The PM Mode Field Adapter will transmit the signal power between two different fibers while keeping the low loss and good beam profile. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
PMFP 1900nm 1850nm 1855nm 1860nm 1865nm 1870nm 1875nm 1880nm 1885nm 1890nm 1895nm 1905nm 1910nm 1915nm 1920nm 1925nm 1930nm high power optical fiber multimode pump Mode Field Adapter stripped stripping clad remover adattatore da campo in modalità pompa multimodale in fibra ottica ad alta potenza stripped stripping placcato remover Adaptateur de champ de mode de pompe multimode à fibre optique haute puissance dépouillé décapant gaine suuritehoinen optisen kuidun monimoodipumpputilan kenttäadapteri irrotettu kuorintapäällysteinen poisto Hochleistungs-Glasfaser-Multimode-Pumpmodus-Feldadapter Abisolierter Abisolierentferner Adaptador de campo de modo de bomba multimodo de fibra óptica de alta potencia adaptador de campo de modo de bomba multimodo de fibra óptica de alta potência removedor de revestimento de stripping despojado ?wiat?owód wielomodowy o du?ej mocy, tryb pompy, adapter polowy, zdejmowanie izolacji, zdejmowanie izolacji (1+1)x1 1+1x1 2x1 PM1550 PM1950 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W Watt Watts HP CW Continuous Wave PMFP 1900nm 1850nm 1855nm 1860nm 1865nm 1870nm 1875nm 1880nm 1885nm 1890nm 1895nm 1905nm 1910nm 1915nm 1920nm 1925nm 1930nm high power optical fiber multimode pump Mode Field Adapter stripped stripping clad remover adattatore da campo in modalità pompa multimodale in fibra ottica ad alta potenza stripped stripping placcato remover Adaptateur de champ de mode de pompe multimode à fibre optique haute puissance dépouillé décapant gaine suuritehoinen optisen kuidun monimoodipumpputilan kenttäadapteri irrotettu kuorintapäällysteinen poisto Hochleistungs-Glasfaser-Multimode-Pumpmodus-Feldadapter Abisolierter Abisolierentferner Adaptador de campo de modo de bomba multimodo de fibra óptica de alta potencia adaptador de campo de modo de bomba multimodo de fibra óptica de alta potência removedor de revestimento de stripping despojado ?wiat?owód wielomodowy o du?ej mocy, tryb pompy, adapter polowy, zdejmowanie izolacji, zdejmowanie izolacji (1+1)x1 1+1x1 2x1 PM1550 PM1950 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W Watt Watts HP CW Continuous Wave PMFP 1900nm 1850nm 1855nm 1860nm 1865nm 1870nm 1875nm 1880nm 1885nm 1890nm 1895nm 1905nm 1910nm 1915nm 1920nm 1925nm 1930nm high power optical fiber multimode pump Mode Field Adapter stripped stripping clad remover adattatore da campo in modalità pompa multimodale in fibra ottica ad alta potenza stripped stripping placcato remover Adaptateur de champ de mode de pompe multimode à fibre optique haute puissance dépouillé décapant gaine suuritehoinen optisen kuidun monimoodipumpputilan kenttäadapteri irrotettu kuorintapäällysteinen poisto Hochleistungs-Glasfaser-Multimode-Pumpmodus-Feldadapter Abisolierter Abisolierentferner Adaptador de campo de modo de bomba multimodo de fibra óptica de alta potencia adaptador de campo de modo de bomba multimodo de fibra óptica de alta potência removedor de revestimento de stripping despojado ?wiat?owód wielomodowy o du?ej mocy, tryb pompy, adapter polowy, zdejmowanie izolacji, zdejmowanie izolacji (1+1)x1 1+1x1 2x1 PM1550 PM1950 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W Watt Watts HP CW Continuous Wave PMFP 1900nm 1850nm 1855nm 1860nm 1865nm 1870nm 1875nm 1880nm 1885nm 1890nm 1895nm 1905nm 1910nm 1915nm 1920nm 1925nm 1930nm high power optical fiber multimode pump Mode Field Adapter stripped stripping clad remover adattatore da campo in modalità pompa multimodale in fibra ottica ad alta potenza stripped stripping placcato remover Adaptateur de champ de mode de pompe multimode à fibre optique haute puissance dépouillé décapant gaine suuritehoinen optisen kuidun monimoodipumpputilan kenttäadapteri irrotettu kuorintapäällysteinen poisto Hochleistungs-Glasfaser-Multimode-Pumpmodus-Feldadapter Abisolierter Abisolierentferner Adaptador de campo de modo de bomba multimodo de fibra óptica de alta potencia adaptador de campo de modo de bomba multimodo de fibra óptica de alta potência removedor de revestimento de stripping despojado ?wiat?owód wielomodowy o du?ej mocy, tryb pompy, adapter polowy, zdejmowanie izolacji, zdejmowanie izolacji (1+1)x1 1+1x1 2x1 PM1550 PM1950 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen High Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W Watt Watts HP CW Continuous Wave
TYPICAL SPECIFICATIONS
Signal Wavelength 1900nm
Pump Wavelength None or 793nm, 808nm, 830nm, 915nm, 950nm, 975nm, 980nm, 1550nm
Fiber Type PM1550 Fiber(S), PM1950 Fiber(V), 10/130um NA=0.15(O),
25/250um NA=0.09(R), 25/400um NA=0.09(R4) or specified by customer
Signal Insertion Loss <=0.7dB
Signal Extinction Ratio >=16dB
Max. Signal Optical Power (CW) 10W, 20W, 30W, 50W, 100W
Max. Cladding Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 20W, 30W, 50W
Cladding Power Mode Transmitted or Stripped
Operating Temperature 0~50degreeC

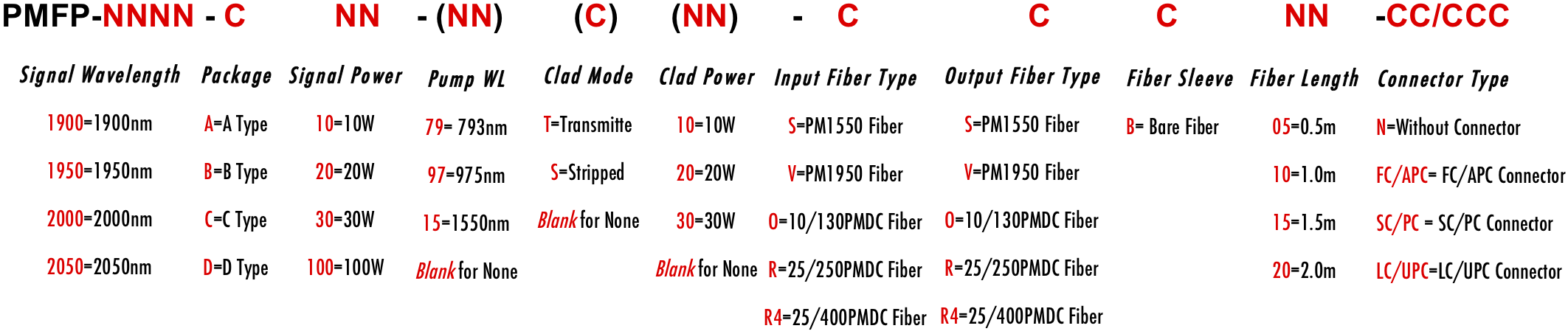

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
