	2050nm PM Mode Field Adapter for Pulse Power

DESCRIPTION

Haphit provides fiber based passive components. The PM Mode Field Adapter is made by Fusion Splice technology with PM fiber in and PM fiber out. It features Low Insertion Loss and High Optical Power. The PM Mode Field Adapter will transmit the signal power between two different fibers while keeping the low loss and good beam profile. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.

PMFP 2050nm 2030nm 2035nm 2040nm 2045nm 2055nm 2060nm 2065nm 2070nm 2075nm 2080nm 2085nm 2090nm 2095nm 2100nm high power optical fiber multimode pump Mode Field Adapter stripped stripping clad remover adattatore da campo in modalità pompa multimodale in fibra ottica ad alta potenza stripped stripping placcato remover Adaptateur de champ de mode de pompe multimode à fibre optique haute puissance dépouillé décapant gaine suuritehoinen optisen kuidun monimoodipumpputilan kenttäadapteri irrotettu kuorintapäällysteinen poisto Hochleistungs-Glasfaser-Multimode-Pumpmodus-Feldadapter Abisolierter Abisolierentferner Adaptador de campo de modo de bomba multimodo de fibra óptica de alta potencia adaptador de campo de modo de bomba multimodo de fibra óptica de alta potência removedor de revestimento de stripping despojado ?wiat?owód wielomodowy o du?ej mocy, tryb pompy, adapter polowy, zdejmowanie izolacji, zdejmowanie izolacji (1+1)x1 1+1x1 2x1 PM1550 PM1950 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 1kW 2kW 3kW 5kW 10kW 15kW 20kW 50kW 100k 200kW Waverage peak ns ps fs kW Watt Watts HP PMFP 2050nm 2030nm 2035nm 2040nm 2045nm 2055nm 2060nm 2065nm 2070nm 2075nm 2080nm 2085nm 2090nm 2095nm 2100nm high power optical fiber multimode pump Mode Field Adapter stripped stripping clad remover adattatore da campo in modalità pompa multimodale in fibra ottica ad alta potenza stripped stripping placcato remover Adaptateur de champ de mode de pompe multimode à fibre optique haute puissance dépouillé décapant gaine suuritehoinen optisen kuidun monimoodipumpputilan kenttäadapteri irrotettu kuorintapäällysteinen poisto Hochleistungs-Glasfaser-Multimode-Pumpmodus-Feldadapter Abisolierter Abisolierentferner Adaptador de campo de modo de bomba multimodo de fibra óptica de alta potencia adaptador de campo de modo de bomba multimodo de fibra óptica de alta potência removedor de revestimento de stripping despojado ?wiat?owód wielomodowy o du?ej mocy, tryb pompy, adapter polowy, zdejmowanie izolacji, zdejmowanie izolacji (1+1)x1 1+1x1 2x1 PM1550 PM1950 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 1kW 2kW 3kW 5kW 10kW 15kW 20kW 50kW 100k 200kW Waverage peak ns ps fs kW Watt Watts HP PMFP 2050nm 2030nm 2035nm 2040nm 2045nm 2055nm 2060nm 2065nm 2070nm 2075nm 2080nm 2085nm 2090nm 2095nm 2100nm high power optical fiber multimode pump Mode Field Adapter stripped stripping clad remover adattatore da campo in modalità pompa multimodale in fibra ottica ad alta potenza stripped stripping placcato remover Adaptateur de champ de mode de pompe multimode à fibre optique haute puissance dépouillé décapant gaine suuritehoinen optisen kuidun monimoodipumpputilan kenttäadapteri irrotettu kuorintapäällysteinen poisto Hochleistungs-Glasfaser-Multimode-Pumpmodus-Feldadapter Abisolierter Abisolierentferner Adaptador de campo de modo de bomba multimodo de fibra óptica de alta potencia adaptador de campo de modo de bomba multimodo de fibra óptica de alta potência removedor de revestimento de stripping despojado ?wiat?owód wielomodowy o du?ej mocy, tryb pompy, adapter polowy, zdejmowanie izolacji, zdejmowanie izolacji (1+1)x1 1+1x1 2x1 PM1550 PM1950 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 1kW 2kW 3kW 5kW 10kW 15kW 20kW 50kW 100k 200kW Waverage peak ns ps fs kW Watt Watts HP PMFP 2050nm 2030nm 2035nm 2040nm 2045nm 2055nm 2060nm 2065nm 2070nm 2075nm 2080nm 2085nm 2090nm 2095nm 2100nm high power optical fiber multimode pump Mode Field Adapter stripped stripping clad remover adattatore da campo in modalità pompa multimodale in fibra ottica ad alta potenza stripped stripping placcato remover Adaptateur de champ de mode de pompe multimode à fibre optique haute puissance dépouillé décapant gaine suuritehoinen optisen kuidun monimoodipumpputilan kenttäadapteri irrotettu kuorintapäällysteinen poisto Hochleistungs-Glasfaser-Multimode-Pumpmodus-Feldadapter Abisolierter Abisolierentferner Adaptador de campo de modo de bomba multimodo de fibra óptica de alta potencia adaptador de campo de modo de bomba multimodo de fibra óptica de alta potência removedor de revestimento de stripping despojado ?wiat?owód wielomodowy o du?ej mocy, tryb pompy, adapter polowy, zdejmowanie izolacji, zdejmowanie izolacji (1+1)x1 1+1x1 2x1 PM1550 PM1950 10/125um 10/130um 25/250um 25/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 1kW 2kW 3kW 5kW 10kW 15kW 20kW 50kW 100k 200kW Waverage peak ns ps fs kW Watt Watts HP

TYPICAL SPECIFICATIONS

Signal Wavelength	2050nm
Pump Wavelength	None or 793nm, 808nm, 830nm, 915nm, 950nm, 975nm, 980nm, 1550nm
Fiber Type	PM1550 Fiber(S), PM1950 Fiber(V), 10/130um NA=0.15(O), 25/250um NA=0.09(R), 25/400um NA=0.09(R4) or specified by customer
Signal Insertion Loss	<=0.7dB
Signal Extinction Ratio	>=16dB
Max. Signal Average Power	10W, 20W, 30W, 50W, 100W
Max. Peak Power for Pulse	100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW, 50kW
Max. Cladding Average Power	1W, 2W, 3W, 5W, 10W, 20W, 30W, 50W
Cladding Power Mode	Transmitted or Stripped
Operating Temperature	0~50degreeC

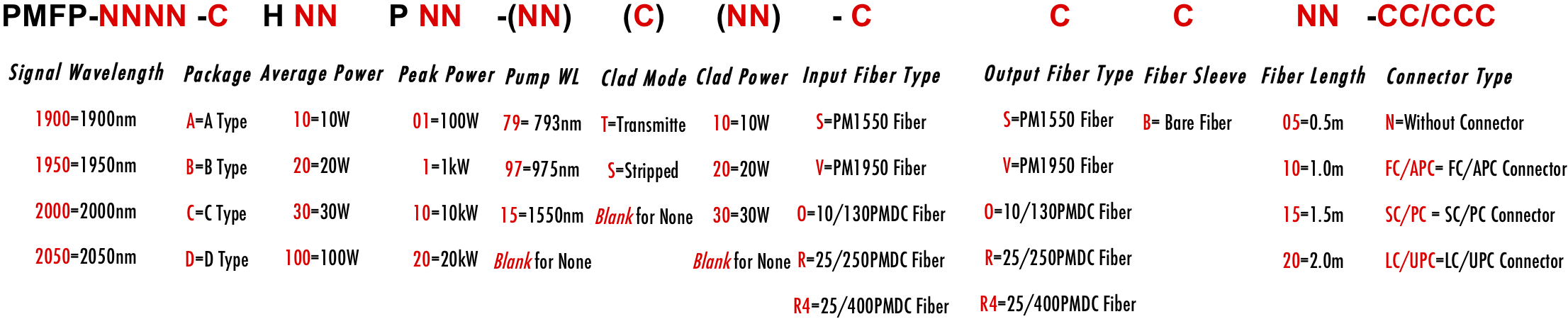

ORDERING INFORMATION/PART NUMBER(PN)
