1080nm PM Mode Field Adapter for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The PM Mode Field Adapter is made by Fusion Splice technology with PM fiber in and PM fiber out. It features Low Insertion Loss and High Optical Power. The PM Mode Field Adapter will transmit the signal power between two different fibers while keeping the low loss and good beam profile. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
PMFP 1080nm 1070nm 1092nm 1072nm 1075nm 1083nm 1085nm 1084nm high power optical fiber multimode pump Mode Field Adapter stripped stripping clad remover adattatore da campo in modalità pompa multimodale in fibra ottica ad alta potenza stripped stripping placcato remover Adaptateur de champ de mode de pompe multimode à fibre optique haute puissance dépouillé décapant gaine suuritehoinen optisen kuidun monimoodipumpputilan kenttäadapteri irrotettu kuorintapäällysteinen poisto Hochleistungs-Glasfaser-Multimode-Pumpmodus-Feldadapter Abisolierter Abisolierentferner Adaptador de campo de modo de bomba multimodo de fibra óptica de alta potencia adaptador de campo de modo de bomba multimodo de fibra óptica de alta potência removedor de revestimento de stripping despojado ?wiat?owód wielomodowy o du?ej mocy, tryb pompy, adapter polowy, zdejmowanie izolacji, zdejmowanie izolacji (1+1)x1 1+1x1 2x1 PM980 PM1060LFA 6/125um 5/130um 10/125um 10/130um 20/125um 15/125um 15/130um 20/130um 25/250um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 1kW 2kW 3kW 5kW 10kW 15kW 20kW 50kW 100k 200kW Waverage peak ns ps fs kW Watt Watts HP PMFP 1080nm 1070nm 1092nm 1072nm 1075nm 1083nm 1085nm 1084nm high power optical fiber multimode pump Mode Field Adapter stripped stripping clad remover adattatore da campo in modalità pompa multimodale in fibra ottica ad alta potenza stripped stripping placcato remover Adaptateur de champ de mode de pompe multimode à fibre optique haute puissance dépouillé décapant gaine suuritehoinen optisen kuidun monimoodipumpputilan kenttäadapteri irrotettu kuorintapäällysteinen poisto Hochleistungs-Glasfaser-Multimode-Pumpmodus-Feldadapter Abisolierter Abisolierentferner Adaptador de campo de modo de bomba multimodo de fibra óptica de alta potencia adaptador de campo de modo de bomba multimodo de fibra óptica de alta potência removedor de revestimento de stripping despojado ?wiat?owód wielomodowy o du?ej mocy, tryb pompy, adapter polowy, zdejmowanie izolacji, zdejmowanie izolacji (1+1)x1 1+1x1 2x1 PM980 PM1060LFA 6/125um 5/130um 10/125um 10/130um 20/125um 15/125um 15/130um 20/130um 25/250um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 1kW 2kW 3kW 5kW 10kW 15kW 20kW 50kW 100k 200kW Waverage peak ns ps fs kW Watt Watts HP PMFP 1080nm 1070nm 1092nm 1072nm 1075nm 1083nm 1085nm 1084nm high power optical fiber multimode pump Mode Field Adapter stripped stripping clad remover adattatore da campo in modalità pompa multimodale in fibra ottica ad alta potenza stripped stripping placcato remover Adaptateur de champ de mode de pompe multimode à fibre optique haute puissance dépouillé décapant gaine suuritehoinen optisen kuidun monimoodipumpputilan kenttäadapteri irrotettu kuorintapäällysteinen poisto Hochleistungs-Glasfaser-Multimode-Pumpmodus-Feldadapter Abisolierter Abisolierentferner Adaptador de campo de modo de bomba multimodo de fibra óptica de alta potencia adaptador de campo de modo de bomba multimodo de fibra óptica de alta potência removedor de revestimento de stripping despojado ?wiat?owód wielomodowy o du?ej mocy, tryb pompy, adapter polowy, zdejmowanie izolacji, zdejmowanie izolacji (1+1)x1 1+1x1 2x1 PM980 PM1060LFA 6/125um 5/130um 10/125um 10/130um 20/125um 15/125um 15/130um 20/130um 25/250um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 1kW 2kW 3kW 5kW 10kW 15kW 20kW 50kW 100k 200kW Waverage peak ns ps fs kW Watt Watts HP PMFP 1080nm 1070nm 1092nm 1072nm 1075nm 1083nm 1085nm 1084nm high power optical fiber multimode pump Mode Field Adapter stripped stripping clad remover adattatore da campo in modalità pompa multimodale in fibra ottica ad alta potenza stripped stripping placcato remover Adaptateur de champ de mode de pompe multimode à fibre optique haute puissance dépouillé décapant gaine suuritehoinen optisen kuidun monimoodipumpputilan kenttäadapteri irrotettu kuorintapäällysteinen poisto Hochleistungs-Glasfaser-Multimode-Pumpmodus-Feldadapter Abisolierter Abisolierentferner Adaptador de campo de modo de bomba multimodo de fibra óptica de alta potencia adaptador de campo de modo de bomba multimodo de fibra óptica de alta potência removedor de revestimento de stripping despojado ?wiat?owód wielomodowy o du?ej mocy, tryb pompy, adapter polowy, zdejmowanie izolacji, zdejmowanie izolacji (1+1)x1 1+1x1 2x1 PM980 PM1060LFA 6/125um 5/130um 10/125um 10/130um 20/125um 15/125um 15/130um 20/130um 25/250um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W 1kW 2kW 3kW 5kW 10kW 15kW 20kW 50kW 100k 200kW Waverage peak ns ps fs kW Watt Watts HP
TYPICAL SPECIFICATIONS
Signal Wavelength 1080nm
Pump Wavelength None or 915nm, 950nm, 975nm, 980nm
Fiber Type PM980 Fiber(H), PM1060L Fiber (E), 6/125um NA=0.14(N),
5/130um NA=0.12(N1), 10/125um NA=0.075(O), 15/130um NA=0.075(W),
Fiber Type 20/130um NA=0.075(Q), 25/250um NA=0.065(R), 25/400um NA=0.065(R1),
30/250um NA=0.06(R6), 30/400um NA=0.06(R3) or specified by customer
Signal Insertion Loss <=0.7dB
Signal Extinction Ratio >=16dB
Max. Signal Average Power 10W, 20W, 30W, 50W, 100W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW, 50kW
Max. Cladding Average Power 1W, 2W, 3W, 5W, 10W, 20W, 30W, 50W
Cladding Power Mode Transmitted or Stripped
Operating Temperature 0~50degreeC

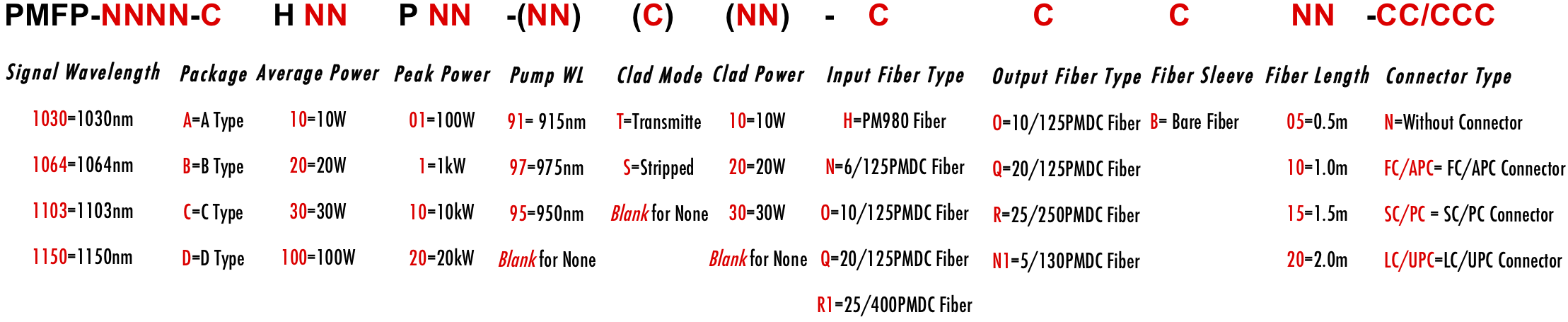

ORDERING INFORMATION/PART NUMBER(PN)
