	1120nm Mode Field Adapter

DESCRIPTION

Haphit provides fiber based passive components. The Mode Field Adapter is made by Fusion Splice technology with fiber in and fiber out. It features Low Insertion Loss and High Optical Power. The Mode Field Adapter will transmit the signal power between two different fibers while keeping the low loss and good beam profile. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.

PMFA 1120nm 1110nm 1130nm 1115nm 1125nm high power optical fiber multimode pump Mode Field Adapter stripped stripping clad remover adattatore da campo in modalità pompa multimodale in fibra ottica ad alta potenza stripped stripping placcato remover Adaptateur de champ de mode de pompe multimode à fibre optique haute puissance dépouillé décapant gaine suuritehoinen optisen kuidun monimoodipumpputilan kenttäadapteri irrotettu kuorintapäällysteinen poisto Hochleistungs-Glasfaser-Multimode-Pumpmodus-Feldadapter Abisolierter Abisolierentferner Adaptador de campo de modo de bomba multimodo de fibra óptica de alta potencia adaptador de campo de modo de bomba multimodo de fibra óptica de alta potência removedor de revestimento de stripping despojado ?wiat?owód wielomodowy o du?ej mocy, tryb pompy, adapter polowy, zdejmowanie izolacji, zdejmowanie izolacji HI1060 1060XP 6/125um 5/130um 10/125um 10/130um 20/125um 15/125um 15/130um 20/130um 25/250um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W 15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W Watt Watts HP CW Continuous Wave PMFA 1120nm 1110nm 1130nm 1115nm 1125nm high power optical fiber multimode pump Mode Field Adapter stripped stripping clad remover adattatore da campo in modalità pompa multimodale in fibra ottica ad alta potenza stripped stripping placcato remover Adaptateur de champ de mode de pompe multimode à fibre optique haute puissance dépouillé décapant gaine suuritehoinen optisen kuidun monimoodipumpputilan kenttäadapteri irrotettu kuorintapäällysteinen poisto Hochleistungs-Glasfaser-Multimode-Pumpmodus-Feldadapter Abisolierter Abisolierentferner Adaptador de campo de modo de bomba multimodo de fibra óptica de alta potencia adaptador de campo de modo de bomba multimodo de fibra óptica de alta potência removedor de revestimento de stripping despojado ?wiat?owód wielomodowy o du?ej mocy, tryb pompy, adapter polowy, zdejmowanie izolacji, zdejmowanie izolacji HI1060 1060XP 6/125um 5/130um 10/125um 10/130um 20/125um 15/125um 15/130um 20/130um 25/250um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W 15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W Watt Watts HP CW Continuous Wave PMFA 1120nm 1110nm 1130nm 1115nm 1125nm high power optical fiber multimode pump Mode Field Adapter stripped stripping clad remover adattatore da campo in modalità pompa multimodale in fibra ottica ad alta potenza stripped stripping placcato remover Adaptateur de champ de mode de pompe multimode à fibre optique haute puissance dépouillé décapant gaine suuritehoinen optisen kuidun monimoodipumpputilan kenttäadapteri irrotettu kuorintapäällysteinen poisto Hochleistungs-Glasfaser-Multimode-Pumpmodus-Feldadapter Abisolierter Abisolierentferner Adaptador de campo de modo de bomba multimodo de fibra óptica de alta potencia adaptador de campo de modo de bomba multimodo de fibra óptica de alta potência removedor de revestimento de stripping despojado ?wiat?owód wielomodowy o du?ej mocy, tryb pompy, adapter polowy, zdejmowanie izolacji, zdejmowanie izolacji HI1060 1060XP 6/125um 5/130um 10/125um 10/130um 20/125um 15/125um 15/130um 20/130um 25/250um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W 15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W Watt Watts HP CW Continuous Wave PMFA 1120nm 1110nm 1130nm 1115nm 1125nm high power optical fiber multimode pump Mode Field Adapter stripped stripping clad remover adattatore da campo in modalità pompa multimodale in fibra ottica ad alta potenza stripped stripping placcato remover Adaptateur de champ de mode de pompe multimode à fibre optique haute puissance dépouillé décapant gaine suuritehoinen optisen kuidun monimoodipumpputilan kenttäadapteri irrotettu kuorintapäällysteinen poisto Hochleistungs-Glasfaser-Multimode-Pumpmodus-Feldadapter Abisolierter Abisolierentferner Adaptador de campo de modo de bomba multimodo de fibra óptica de alta potencia adaptador de campo de modo de bomba multimodo de fibra óptica de alta potência removedor de revestimento de stripping despojado ?wiat?owód wielomodowy o du?ej mocy, tryb pompy, adapter polowy, zdejmowanie izolacji, zdejmowanie izolacji HI1060 1060XP 6/125um 5/130um 10/125um 10/130um 20/125um 15/125um 15/130um 20/130um 25/250um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W 15W 20W 25W 50W 100W 150W 200W 250W 300W 350W 400W 450W 500W Watt Watts HP CW Continuous Wave

TYPICAL SPECIFICATIONS

Signal Wavelength	1120nm
Pump Wavelength	None or 915nm, 950nm, 975nm, 980nm
Fiber Type	HI1060 Fiber(H), 6/125um NA=0.14(N), 5/130um NA=0.12(N1), 10/125um NA=0.075(O), 15/130um NA=0.075(W), 20/130um NA=0.075(Q),
Fiber Type	25/250um NA=0.065(R), 25/400um NA=0.065(R1), 30/250um NA=0.06(R6), 30/400um NA=0.06(R3) or specified by customer
Signal Insertion Loss	<=0.7dB
Max. Signal Optical Power (CW)	10W, 20W, 30W, 50W, 100W
Max. Cladding Optical Power (CW)	1W, 2W, 3W, 5W, 10W, 20W, 30W, 50W
Cladding Power Mode	Transmitted or Stripped
Operating Temperature	0~50degreeC

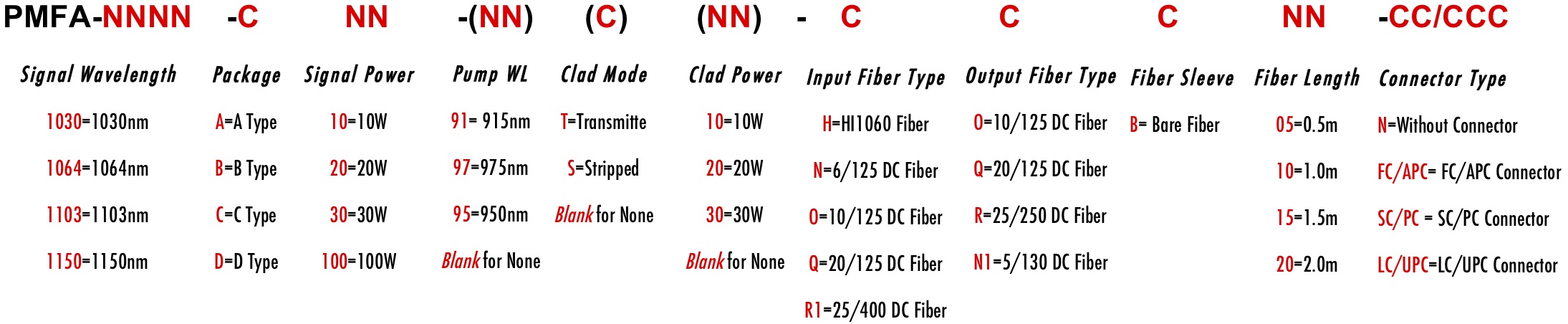

ORDERING INFORMATION/PART NUMBER(PN)
