950nm Singlemode Pump Laser Protector

DESCRIPTION
Haphit provides fiber based passive components. The Pump Laser Protector is made by Micro Optics Package technology with fiber in and fiber out. It features High Signal Isolation and Various Signal Ranges. The Pump Laser Protector will pass pump light while at the same time block backward signal light to protect pump laser diode. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FSPP 950nm 935nm 965nm 940nm 945nm 955nm 960nm high power singlemode pump laser protector optical fiber ?wiat?owód z ochron? lasera jednomodowego pompy wysokiej mocy fibra óptica protetora laser de bomba monomodo de alta potência suuritehoinen yksitilapumppu lasersuoja optinen kuitu Hochleistungs-Singlemode-Pump-Laserschutz-Lichtwellenleiter fibre optique de protecteur de laser de pompe monomode de haute puissance Fibra óptica de protección láser de bomba monomodo de alta potencia fibra ottica protettore laser pompa monomodale ad alta potenza 2-port 3-port Y type HI780 780HP HI1060XP LMA 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad High Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W Watt Watts HP CW Continuous Wave FSPP 950nm 935nm 965nm 940nm 945nm 955nm 960nm high power singlemode pump laser protector optical fiber ?wiat?owód z ochron? lasera jednomodowego pompy wysokiej mocy fibra óptica protetora laser de bomba monomodo de alta potência suuritehoinen yksitilapumppu lasersuoja optinen kuitu Hochleistungs-Singlemode-Pump-Laserschutz-Lichtwellenleiter fibre optique de protecteur de laser de pompe monomode de haute puissance Fibra óptica de protección láser de bomba monomodo de alta potencia fibra ottica protettore laser pompa monomodale ad alta potenza 2-port 3-port Y type HI780 780HP HI1060XP LMA 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad High Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W Watt Watts HP CW Continuous Wave FSPP 950nm 935nm 965nm 940nm 945nm 955nm 960nm high power singlemode pump laser protector optical fiber ?wiat?owód z ochron? lasera jednomodowego pompy wysokiej mocy fibra óptica protetora laser de bomba monomodo de alta potência suuritehoinen yksitilapumppu lasersuoja optinen kuitu Hochleistungs-Singlemode-Pump-Laserschutz-Lichtwellenleiter fibre optique de protecteur de laser de pompe monomode de haute puissance Fibra óptica de protección láser de bomba monomodo de alta potencia fibra ottica protettore laser pompa monomodale ad alta potenza 2-port 3-port Y type HI780 780HP HI1060XP LMA 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad High Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W Watt Watts HP CW Continuous Wave FSPP 950nm 935nm 965nm 940nm 945nm 955nm 960nm high power singlemode pump laser protector optical fiber ?wiat?owód z ochron? lasera jednomodowego pompy wysokiej mocy fibra óptica protetora laser de bomba monomodo de alta potência suuritehoinen yksitilapumppu lasersuoja optinen kuitu Hochleistungs-Singlemode-Pump-Laserschutz-Lichtwellenleiter fibre optique de protecteur de laser de pompe monomode de haute puissance Fibra óptica de protección láser de bomba monomodo de alta potencia fibra ottica protettore laser pompa monomodale ad alta potenza 2-port 3-port Y type HI780 780HP HI1060XP LMA 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad High Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W Watt Watts HP CW Continuous Wave 4IY 4I5 4IA 5IY 5I5 5IA 2IY 2I5 2IA 4Y 45 4A 5Y 55 5A 2Y 25 2A
TYPICAL SPECIFICATIONS
Pump Center Wavelength 950nm
Bandwidth +/-15nm
Block Signal Wavelength Type 6: 1020-1120nm
Type 4: 1000-1120nm
Type 5: 1500-1620nm
Type 2: 1020-1120nm & 1500-1620nm
Pump Insertion Loss <=1.0dB
Backward Signal Attenuation >=25dB (Standard), >=50dB (High Isolation)
Configuration D Type: 2-port
Y Type: 3-port (Backward Signal Guide Out)
Return Loss >=50dB
Fiber Type HI780 Fiber, HI1060 Fiber or 10/125um SC Fiber (E)
10/125um DC Fiber (O) or 15/130um DC Fiber (W)
20/130um DC Fiber (Q) or 25/250um DC Fiber (R)
Max. Optical Power(Pump+Signal,CW) 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Signal Power (CW) 300mW, 500mW, 1W, 2W, 3W, 5W, 10W
Operating Temperature 0~50degreeC

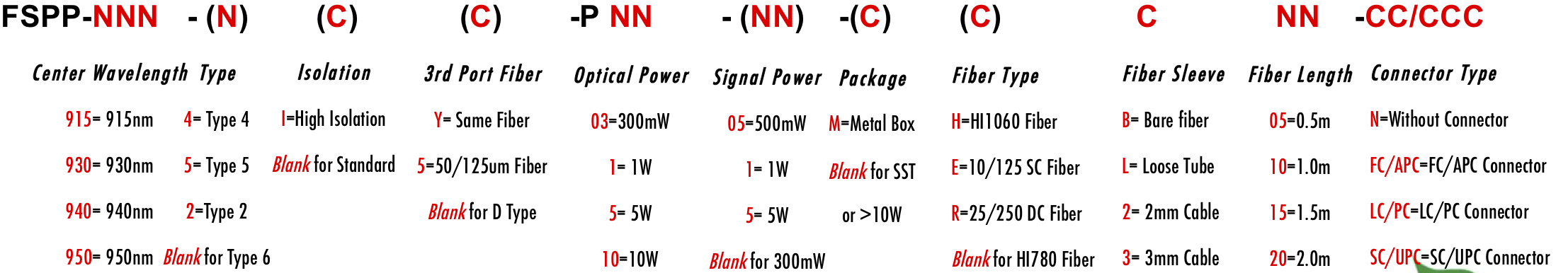

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
