950nm Multimode Pump Laser Protector for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Multimode Pump Laser Protector is made by Micro Optics Package technology with MM fiber in and MM fiber out. It features High Signal Isolation and Various Signal Ranges. The Pump Laser Protector will pass pump light while at the same time block backward signal light to protect pump laser diode. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FMPP 950nm 935nm 965nm 940nm 945nm 955nm 960nm high power Multimode Pump Laser protector optical fiber Hochleistungs-Multimode-Pumpe Laserschutz-Lichtwellenleiter potenza Fibra óptica de protección láser de bomba multimodo de alta potencia suuritehoinen monimoodipumppu Lasersuojan optinen kuitu Fibre optique de protection laser de pompe multimode haute puissance fibra óptica protetora laser multimodo de alta potência Wysokowydajna pompa wielomodowa z zabezpieczeniem laserowym 2-port 3-port Y type MM Multimode Fiber 50/125um 62.5/125um 105/125um 106.5/125um 200/220um 220/242um 400/440um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W 25W 30W 35W 40W 45W 50W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FMPP 950nm 935nm 965nm 940nm 945nm 955nm 960nm high power Multimode Pump Laser protector optical fiber Hochleistungs-Multimode-Pumpe Laserschutz-Lichtwellenleiter potenza Fibra óptica de protección láser de bomba multimodo de alta potencia suuritehoinen monimoodipumppu Lasersuojan optinen kuitu Fibre optique de protection laser de pompe multimode haute puissance fibra óptica protetora laser multimodo de alta potência Wysokowydajna pompa wielomodowa z zabezpieczeniem laserowym 2-port 3-port Y type MM Multimode Fiber 50/125um 62.5/125um 105/125um 106.5/125um 200/220um 220/242um 400/440um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W 25W 30W 35W 40W 45W 50W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FMPP 950nm 935nm 965nm 940nm 945nm 955nm 960nm high power Multimode Pump Laser protector optical fiber Hochleistungs-Multimode-Pumpe Laserschutz-Lichtwellenleiter potenza Fibra óptica de protección láser de bomba multimodo de alta potencia suuritehoinen monimoodipumppu Lasersuojan optinen kuitu Fibre optique de protection laser de pompe multimode haute puissance fibra óptica protetora laser multimodo de alta potência Wysokowydajna pompa wielomodowa z zabezpieczeniem laserowym 2-port 3-port Y type MM Multimode Fiber 50/125um 62.5/125um 105/125um 106.5/125um 200/220um 220/242um 400/440um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W 25W 30W 35W 40W 45W 50W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FMPP 950nm 935nm 965nm 940nm 945nm 955nm 960nm high power Multimode Pump Laser protector optical fiber Hochleistungs-Multimode-Pumpe Laserschutz-Lichtwellenleiter potenza Fibra óptica de protección láser de bomba multimodo de alta potencia suuritehoinen monimoodipumppu Lasersuojan optinen kuitu Fibre optique de protection laser de pompe multimode haute puissance fibra óptica protetora laser multimodo de alta potência Wysokowydajna pompa wielomodowa z zabezpieczeniem laserowym 2-port 3-port Y type MM Multimode Fiber 50/125um 62.5/125um 105/125um 106.5/125um 200/220um 220/242um 400/440um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W 25W 30W 35W 40W 45W 50W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 4IY 4I5 4IA 5IY 5I5 5IA 2IY 2I5 2IA 4Y 45 4A 5Y 55 5A 2Y 25 2A
TYPICAL SPECIFICATIONS
Pump Center Wavelength 950nm
Bandwidth +/-15nm
Block Signal Wavelength Type 6: 1020-1120nm
Type 4: 1000-1120nm
Type 5: 1500-1620nm
Type 2: 1020-1120nm & 1500-1620nm
Pump Insertion Loss <=0.7dB
Backward Signal Attenuation >=25dB (Standard), >=50dB (High Isolation)
Configuration D Type: 2-port
Y Type: 3-port (Backward Signal Guide Out)
Return Loss >=30dB
Fiber Type 105/125um NA=0.12(D), NA=0.15(B) or NA=0.22(A)
106.5/125um NA=0.22(J) or specified by customer
Max. Average Power (Pump+Signal) 6W, 10W, 25W, 35W, 40W, 50W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Max. Signal Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W
Operating Temperature 0~50degreeC

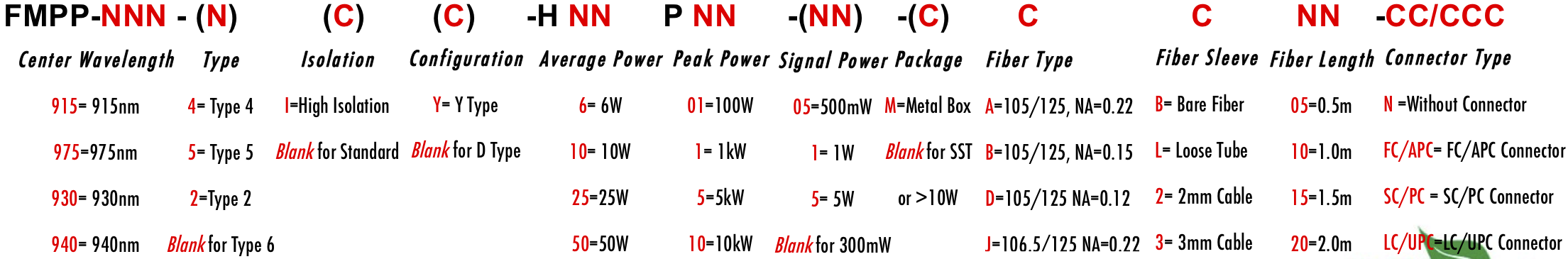

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
