915nm Singlemode PM Pump Laser Protector with Isolator

DESCRIPTION
Haphit provides fiber based passive components. The PM Pump Laser Protector with Isolator is made by Micro Optics Package technology with PM fiber in and PM fiber out. It features High Signal Isolation, Various Signal Ranges and high Extinction Ratio. The Pump Laser Protector with Isolator will pass pump light while at the same time block both backward signal and backward pump light to protect pump laser diode. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FSRI 915nm 900nm 930nm 905nm 910nm 920nm 925nm high power singlemode Pump Laser Protector with Isolator optical fiber z izolatorem com isolador avec isolateur eristimellä mit Isolator con isolatore con aislador ?wiat?owód z ochron? lasera jednomodowego pompy wysokiej mocy fibra óptica protetora laser de bomba monomodo de alta potência suuritehoinen yksitilapumppu lasersuoja optinen kuitu Hochleistungs-Singlemode-Pump-Laserschutz-Lichtwellenleiter fibre optique de protecteur de laser de pompe monomode de haute puissance Fibra óptica de protección láser de bomba monomodo de alta potencia fibra ottica protettore laser pompa monomodale ad alta potenza 2-port 3-port Y type PM850 PM780HP PM980XP PM1060L LMA 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W Watt Watts HP CW Continuous Wave FSRI 915nm 900nm 930nm 905nm 910nm 920nm 925nm high power singlemode Pump Laser Protector with Isolator optical fiber z izolatorem com isolador avec isolateur eristimellä mit Isolator con isolatore con aislador ?wiat?owód z ochron? lasera jednomodowego pompy wysokiej mocy fibra óptica protetora laser de bomba monomodo de alta potência suuritehoinen yksitilapumppu lasersuoja optinen kuitu Hochleistungs-Singlemode-Pump-Laserschutz-Lichtwellenleiter fibre optique de protecteur de laser de pompe monomode de haute puissance Fibra óptica de protección láser de bomba monomodo de alta potencia fibra ottica protettore laser pompa monomodale ad alta potenza 2-port 3-port Y type PM850 PM780HP PM980XP PM1060L LMA 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W Watt Watts HP CW Continuous Wave FSRI 915nm 900nm 930nm 905nm 910nm 920nm 925nm high power singlemode Pump Laser Protector with Isolator optical fiber z izolatorem com isolador avec isolateur eristimellä mit Isolator con isolatore con aislador ?wiat?owód z ochron? lasera jednomodowego pompy wysokiej mocy fibra óptica protetora laser de bomba monomodo de alta potência suuritehoinen yksitilapumppu lasersuoja optinen kuitu Hochleistungs-Singlemode-Pump-Laserschutz-Lichtwellenleiter fibre optique de protecteur de laser de pompe monomode de haute puissance Fibra óptica de protección láser de bomba monomodo de alta potencia fibra ottica protettore laser pompa monomodale ad alta potenza 2-port 3-port Y type PM850 PM780HP PM980XP PM1060L LMA 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W Watt Watts HP CW Continuous Wave FSRI 915nm 900nm 930nm 905nm 910nm 920nm 925nm high power singlemode Pump Laser Protector with Isolator optical fiber z izolatorem com isolador avec isolateur eristimellä mit Isolator con isolatore con aislador ?wiat?owód z ochron? lasera jednomodowego pompy wysokiej mocy fibra óptica protetora laser de bomba monomodo de alta potência suuritehoinen yksitilapumppu lasersuoja optinen kuitu Hochleistungs-Singlemode-Pump-Laserschutz-Lichtwellenleiter fibre optique de protecteur de laser de pompe monomode de haute puissance Fibra óptica de protección láser de bomba monomodo de alta potencia fibra ottica protettore laser pompa monomodale ad alta potenza 2-port 3-port Y type PM850 PM780HP PM980XP PM1060L LMA 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W Watt Watts HP CW Continuous Wave S4IYY S4IYA S4IY5 S4I5Y S4I55 S4I5A S4IAY S4IA5 S4IAA S4YY S4YA S4Y5 S45Y S455 S45A S4AY S4A5 S4AA S5IYY S5IYA S5IY5 S5I5Y S5I55 S5I5A S5IAY S5IA5 S5IAA S5YY S5YA S5Y5 S55Y S555 S55A S5AY S5A5 S5AA S2IYY S2IYA S2IY5 S2I5Y S2I55 S2I5A S2IAY S2IA5 S2IAA S2YY S2YA S2Y5 S25Y S255 S25A S2AY S2A5 S2AA F4IYY F4IYA F4IY5 F4I5Y F4I55 F4I5A F4IAY F4IA5 F4IAA F4YY F4YA F4Y5 F45Y F455 F45A F4AY F4A5 F4AA F5IYY F5IYA F5IY5 F5I5Y F5I55 F5I5A F5IAY F5IA5 F5IAA F5YY F5YA F5Y5 F55Y F555 F55A F5AY F5A5 F5AA F2IYY F2IYA F2IY5 F2I5Y F2I55 F2I5A F2IAY F2IA5 F2IAA F2YY F2YA F2Y5 F25Y F255 F25A F2AY F2A5 F2AA
TYPICAL SPECIFICATIONS
Pump Laser Wavelength 915+/-15nm
Block Signal Wavelength Type 6: 1020-1120nm
Type 4: 1000-1120nm
Type 5: 1500-1620nm
Type 2: 1020-1120nm & 1500-1620nm
Pump Insertion Loss <=1.5dB (Standard), <=1.8dB (High Signal Isolation)
Backward Pump Isolation >=22dB
Backward Signal Attenuation >=25dB (Standard), >=50dB (High Isolation)
Configuration D Type: 2-port
Y/X Type: 3/4-port (Backward Signal/Pump Guide Out)
Return Loss >=50dB
Extinction Ratio >=18dB
Fiber Type PM850 Fiber, PM980 Fiber or PM1060L Fiber (E)
10/125um PMDC Fiber (O), 15/130um PMDC Fiber (W)
20/130um PMDC Fiber (Q) or 25/250um PMDC Fiber (R)
Max. Optical Power(Pump+Signal,CW) 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Backward Signal/Pump Power (CW) 300mW, 500mW, 1W, 2W, 3W, 5W, 10W
Operating Temperature 0~50degreeC

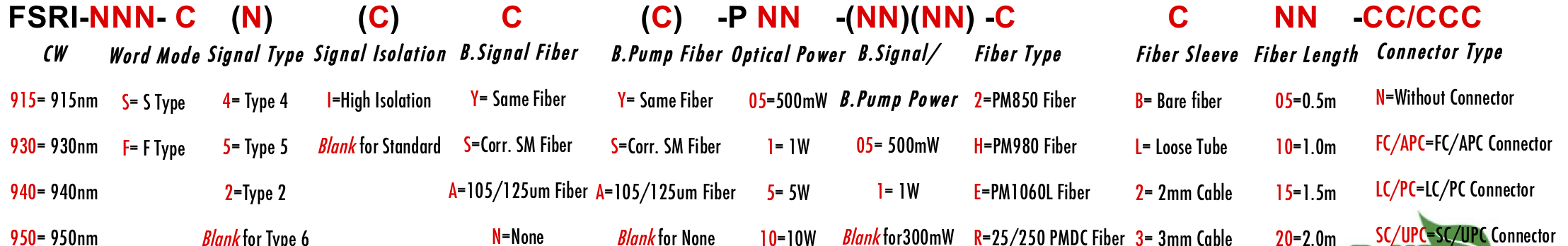

ORDERING INFORMATION/PART NUMBER(PN)
