930nm Singlemode Pump Laser Protector with Isolator

DESCRIPTION
Haphit provides fiber based passive components. The Pump Laser Protector with Isolator is made by Micro Optics Package technology with fiber in and fiber out. It features High Signal Isolation and Various Signal Ranges. The Pump Laser Protector with Isolator will pass pump light while at the same time block both backward signal and backward pump light to protect pump laser diode. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FSPI 930nm 915nm 945nm 920nm 925nm 935nm 940nm high power singlemode Pump Laser Protector with Isolator optical fiber z izolatorem com isolador avec isolateur eristimellä mit Isolator con isolatore con aislador ?wiat?owód z ochron? lasera jednomodowego pompy wysokiej mocy fibra óptica protetora laser de bomba monomodo de alta potência suuritehoinen yksitilapumppu lasersuoja optinen kuitu Hochleistungs-Singlemode-Pump-Laserschutz-Lichtwellenleiter fibre optique de protecteur de laser de pompe monomode de haute puissance Fibra óptica de protección láser de bomba monomodo de alta potencia fibra ottica protettore laser pompa monomodale ad alta potenza 2-port 3-port Y type HI780 780HP HI1060XP LMA 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad High Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W Watt Watts HP CW Continuous Wave FSPI 930nm 915nm 945nm 920nm 925nm 935nm 940nm high power singlemode Pump Laser Protector with Isolator optical fiber z izolatorem com isolador avec isolateur eristimellä mit Isolator con isolatore con aislador ?wiat?owód z ochron? lasera jednomodowego pompy wysokiej mocy fibra óptica protetora laser de bomba monomodo de alta potência suuritehoinen yksitilapumppu lasersuoja optinen kuitu Hochleistungs-Singlemode-Pump-Laserschutz-Lichtwellenleiter fibre optique de protecteur de laser de pompe monomode de haute puissance Fibra óptica de protección láser de bomba monomodo de alta potencia fibra ottica protettore laser pompa monomodale ad alta potenza 2-port 3-port Y type HI780 780HP HI1060XP LMA 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad High Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W Watt Watts HP CW Continuous Wave FSPI 930nm 915nm 945nm 920nm 925nm 935nm 940nm high power singlemode Pump Laser Protector with Isolator optical fiber z izolatorem com isolador avec isolateur eristimellä mit Isolator con isolatore con aislador ?wiat?owód z ochron? lasera jednomodowego pompy wysokiej mocy fibra óptica protetora laser de bomba monomodo de alta potência suuritehoinen yksitilapumppu lasersuoja optinen kuitu Hochleistungs-Singlemode-Pump-Laserschutz-Lichtwellenleiter fibre optique de protecteur de laser de pompe monomode de haute puissance Fibra óptica de protección láser de bomba monomodo de alta potencia fibra ottica protettore laser pompa monomodale ad alta potenza 2-port 3-port Y type HI780 780HP HI1060XP LMA 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad High Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W Watt Watts HP CW Continuous Wave FSPI 930nm 915nm 945nm 920nm 925nm 935nm 940nm high power singlemode Pump Laser Protector with Isolator optical fiber z izolatorem com isolador avec isolateur eristimellä mit Isolator con isolatore con aislador ?wiat?owód z ochron? lasera jednomodowego pompy wysokiej mocy fibra óptica protetora laser de bomba monomodo de alta potência suuritehoinen yksitilapumppu lasersuoja optinen kuitu Hochleistungs-Singlemode-Pump-Laserschutz-Lichtwellenleiter fibre optique de protecteur de laser de pompe monomode de haute puissance Fibra óptica de protección láser de bomba monomodo de alta potencia fibra ottica protettore laser pompa monomodale ad alta potenza 2-port 3-port Y type HI780 780HP HI1060XP LMA 6/125um 5/130um 10/125um 10/130um 12/130um 15/125um 15/130um 12/125um 20/125um 20/130um 25/250um 25/300um 30/250um 25/400um 30/400um SC Single Clad Cladding DC Double Clad High Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W Watt Watts HP CW Continuous Wave 4IYY 4IYA 4IY5 4I5Y 4I55 4I5A 4IAY 4IA5 4IAA 4YY 4YA 4Y5 45Y 455 45A 4AY 4A5 4AA 5IYY 5IYA 5IY5 5I5Y 5I55 5I5A 5IAY 5IA5 5IAA 5YY 5YA 5Y5 55Y 555 55A 5AY 5A5 5AA 2IYY 2IYA 2IY5 2I5Y 2I55 2I5A 2IAY 2IA5 2IAA 2YY 2YA 2Y5 25Y 255 25A 2AY 2A5 2AA
TYPICAL SPECIFICATIONS
Pump Laser Wavelength 930+/-15nm
Block Signal Wavelength Type 6: 1020-1120nm
Type 4: 1000-1120nm
Type 5: 1500-1620nm
Type 2: 1020-1120nm & 1500-1620nm
Pump Insertion Loss <=1.5dB (Standard), <=1.8dB (High Signal Isolation)
Backward Pump Isolation >=22dB
Backward Signal Attenuation >=25dB (Standard), >=50dB (High Isolation)
Configuration D Type: 2-port
Y/X Type: 3/4-port (Backward Signal/Pump Guide Out)
Return Loss >=50dB
Fiber Type HI780 Fiber, HI1060 Fiber or 10/125um SC Fiber (E)
10/125um DC Fiber (O) or 15/130um DC Fiber (W)
20/130um DC Fiber (Q) or 25/250um DC Fiber (R)
Max. Optical Power(Pump+Signal,CW) 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Backward Signal/Pump Power (CW) 300mW, 500mW, 1W, 2W, 3W, 5W, 10W
Operating Temperature 0~50degreeC

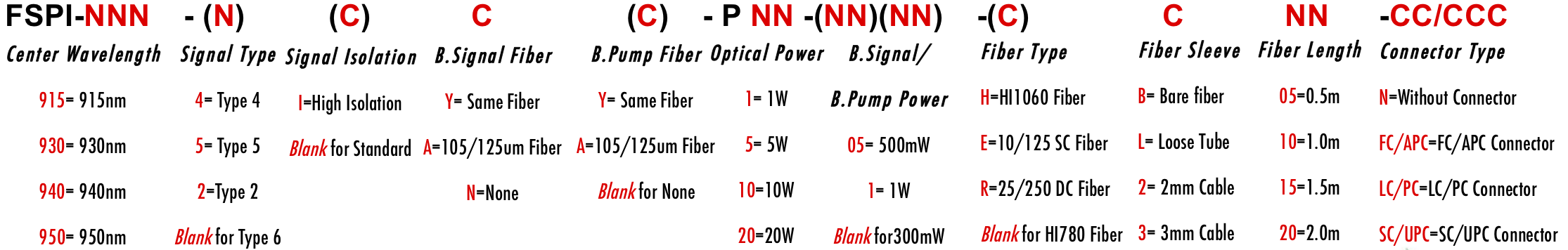

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
