1900nm Polarization Beam Combiner/Splitter for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Polarization Beam Combiner/Splitter is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and High Reliability. The Polarization Beam Combiner/Splitter will split or combine two orthogonal linear polarized light. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPBC FPBS 1900nm 1870nm 1880nm 1885nm 1890nm 1895nm 1905nm 1910nm 1915nm 1920nm 1925nm 1930nm Fiber optical polarization beam combiner and splitter with polarization sensitive optics Combinador e divisor de feixe de polarização óptica de fibra com óptica sensível à polarização Combinador y divisor de haz de polarización de fibra óptica con óptica sensible a la polarización Combinatore e splitter di fascio di polarizzazione ottica in fibra con ottica sensibile alla polarizzazione Kuituoptisen polarisointisäteen yhdistin ja jakaja polarisaatioherkällä optiikalla Combinateur et séparateur de faisceau de polarisation à fibre optique avec optique sensible à la polarisation Faseroptischer Polarisationsstrahlkombinierer und -teiler mit polarisationsempfindlicher Optik ?wiat?owodowy ??cznik i rozdzielacz wi?zki polaryzacyjnej z optyk? wra?liw? na polaryzacj? SMF-28 SMF28 SM1950 PM1950 PM1550 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPBC FPBS 1900nm 1870nm 1880nm 1885nm 1890nm 1895nm 1905nm 1910nm 1915nm 1920nm 1925nm 1930nm Fiber optical polarization beam combiner and splitter with polarization sensitive optics Combinador e divisor de feixe de polarização óptica de fibra com óptica sensível à polarização Combinador y divisor de haz de polarización de fibra óptica con óptica sensible a la polarización Combinatore e splitter di fascio di polarizzazione ottica in fibra con ottica sensibile alla polarizzazione Kuituoptisen polarisointisäteen yhdistin ja jakaja polarisaatioherkällä optiikalla Combinateur et séparateur de faisceau de polarisation à fibre optique avec optique sensible à la polarisation Faseroptischer Polarisationsstrahlkombinierer und -teiler mit polarisationsempfindlicher Optik ?wiat?owodowy ??cznik i rozdzielacz wi?zki polaryzacyjnej z optyk? wra?liw? na polaryzacj? SMF-28 SMF28 SM1950 PM1950 PM1550 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPBC FPBS 1900nm 1870nm 1880nm 1885nm 1890nm 1895nm 1905nm 1910nm 1915nm 1920nm 1925nm 1930nm Fiber optical polarization beam combiner and splitter with polarization sensitive optics Combinador e divisor de feixe de polarização óptica de fibra com óptica sensível à polarização Combinador y divisor de haz de polarización de fibra óptica con óptica sensible a la polarización Combinatore e splitter di fascio di polarizzazione ottica in fibra con ottica sensibile alla polarizzazione Kuituoptisen polarisointisäteen yhdistin ja jakaja polarisaatioherkällä optiikalla Combinateur et séparateur de faisceau de polarisation à fibre optique avec optique sensible à la polarisation Faseroptischer Polarisationsstrahlkombinierer und -teiler mit polarisationsempfindlicher Optik ?wiat?owodowy ??cznik i rozdzielacz wi?zki polaryzacyjnej z optyk? wra?liw? na polaryzacj? SMF-28 SMF28 SM1950 PM1950 PM1550 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP S P Q
TYPICAL SPECIFICATIONS
Center Wavelength 1900nm
Bandwidth +/-20nm
Insertion Loss <=1.6dB
Directivity >=45dB
Return Loss >=45dB
Extinction Ratio (for FPBS) >=18dB
Fiber Type at Port3 S Type: Corresponding SM Fiber
P Type: Same Fiber to Port1&2, Slow axis align to Port 1
Q Type: Same Fiber to Port1&2, Slow axis is 45° to Port 1
Fiber Type at Port1&2 PM1550 Fiber or PM1950 Fiber
10/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

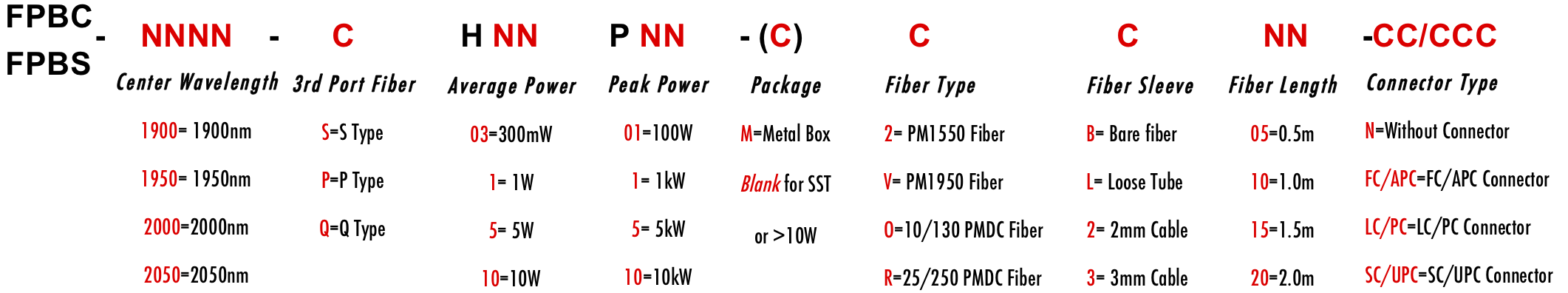

ORDERING INFORMATION/PART NUMBER(PN)
