1950nm Polarization Beam Combiner/Splitter

DESCRIPTION
Haphit provides fiber based passive components. The Polarization Beam Combiner/Splitter is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and High Reliability. The Polarization Beam Combiner/Splitter will split or combine two orthogonal linear polarized light. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPBC FPBS 1950nm 1930nm 1970nm 1935nm 1940nm 1945nm 1955nm 1960nm 1965nm Fiber optical polarization beam combiner and splitter with polarization sensitive optics Combinador e divisor de feixe de polarização óptica de fibra com óptica sensível à polarização Combinador y divisor de haz de polarización de fibra óptica con óptica sensible a la polarización Combinatore e splitter di fascio di polarizzazione ottica in fibra con ottica sensibile alla polarizzazione Kuituoptisen polarisointisäteen yhdistin ja jakaja polarisaatioherkällä optiikalla Combinateur et séparateur de faisceau de polarisation à fibre optique avec optique sensible à la polarisation Faseroptischer Polarisationsstrahlkombinierer und -teiler mit polarisationsempfindlicher Optik ?wiat?owodowy ??cznik i rozdzielacz wi?zki polaryzacyjnej z optyk? wra?liw? na polaryzacj? SMF-28 SMF28 SM1950 PM1950 PM1550 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda FPBC FPBS 1950nm 1930nm 1970nm 1935nm 1940nm 1945nm 1955nm 1960nm 1965nm Fiber optical polarization beam combiner and splitter with polarization sensitive optics Combinador e divisor de feixe de polarização óptica de fibra com óptica sensível à polarização Combinador y divisor de haz de polarización de fibra óptica con óptica sensible a la polarización Combinatore e splitter di fascio di polarizzazione ottica in fibra con ottica sensibile alla polarizzazione Kuituoptisen polarisointisäteen yhdistin ja jakaja polarisaatioherkällä optiikalla Combinateur et séparateur de faisceau de polarisation à fibre optique avec optique sensible à la polarisation Faseroptischer Polarisationsstrahlkombinierer und -teiler mit polarisationsempfindlicher Optik ?wiat?owodowy ??cznik i rozdzielacz wi?zki polaryzacyjnej z optyk? wra?liw? na polaryzacj? SMF-28 SMF28 SM1950 PM1950 PM1550 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda FPBC FPBS 1950nm 1930nm 1970nm 1935nm 1940nm 1945nm 1955nm 1960nm 1965nm Fiber optical polarization beam combiner and splitter with polarization sensitive optics Combinador e divisor de feixe de polarização óptica de fibra com óptica sensível à polarização Combinador y divisor de haz de polarización de fibra óptica con óptica sensible a la polarización Combinatore e splitter di fascio di polarizzazione ottica in fibra con ottica sensibile alla polarizzazione Kuituoptisen polarisointisäteen yhdistin ja jakaja polarisaatioherkällä optiikalla Combinateur et séparateur de faisceau de polarisation à fibre optique avec optique sensible à la polarisation Faseroptischer Polarisationsstrahlkombinierer und -teiler mit polarisationsempfindlicher Optik ?wiat?owodowy ??cznik i rozdzielacz wi?zki polaryzacyjnej z optyk? wra?liw? na polaryzacj? SMF-28 SMF28 SM1950 PM1950 PM1550 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad PMSC Cladding DC PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda S P Q
TYPICAL SPECIFICATIONS
Center Wavelength 1950nm
Bandwidth +/-30nm
Insertion Loss <=1.6dB
Directivity >=45dB
Return Loss >=45dB
Extinction Ratio (for FPBS) >=20dB
Fiber Type at Port3 S Type: Corresponding SM Fiber
P Type: Same Fiber to Port1&2, Slow axis align to Port 1
Q Type: Same Fiber to Port1&2, Slow axis is 45° to Port 1
Fiber Type at Port1&2 PM1550 Fiber or PM1950 Fiber
10/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

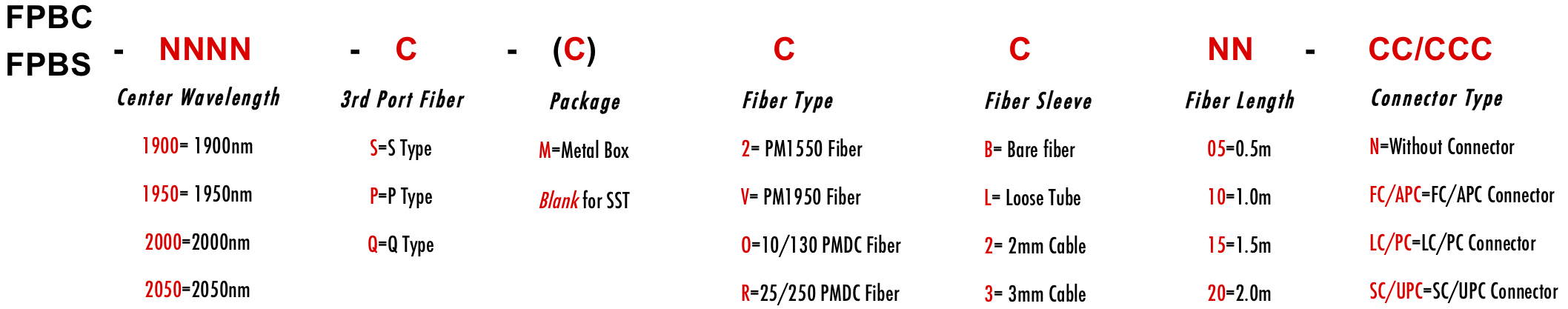

ORDERING INFORMATION/PART NUMBER(PN)
