1150nm High Power 2X2 Polarization Beam Combiner/Splitter

DESCRIPTION
Haphit provides fiber based passive components. The 2X2 Polarization Beam Combiner/Splitter is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and High Reliability. The 2X2 Polarization Beam Combiner/Splitter will split or combine double two orthogonal linear polarized light. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPDC FPDS 1150nm 1140nm 1190nm 1145nm 1155nm 1160nm 1165nm 1170nm 1175nm 1180nm 1185nm 1190nm 1195nm 1200nm Fiber optical polarization beam combiner and splitter with polarization sensitive optics Combinador e divisor de feixe de polarização óptica de fibra com óptica sensível à polarização Combinador y divisor de haz de polarización de fibra óptica con óptica sensible a la polarización Combinatore e splitter di fascio di polarizzazione ottica in fibra con ottica sensibile alla polarizzazione Kuituoptisen polarisointisäteen yhdistin ja jakaja polarisaatioherkällä optiikalla Combinateur et séparateur de faisceau de polarisation à fibre optique avec optique sensible à la polarisation Faseroptischer Polarisationsstrahlkombinierer und -teiler mit polarisationsempfindlicher Optik ?wiat?owodowy ??cznik i rozdzielacz wi?zki polaryzacyjnej z optyk? wra?liw? na polaryzacj? HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad X Type 2x2 4-port Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W  Watt Watts HP CW Continuous Wave FPDC FPDS 1150nm 1140nm 1190nm 1145nm 1155nm 1160nm 1165nm 1170nm 1175nm 1180nm 1185nm 1190nm 1195nm 1200nm Fiber optical polarization beam combiner and splitter with polarization sensitive optics Combinador e divisor de feixe de polarização óptica de fibra com óptica sensível à polarização Combinador y divisor de haz de polarización de fibra óptica con óptica sensible a la polarización Combinatore e splitter di fascio di polarizzazione ottica in fibra con ottica sensibile alla polarizzazione Kuituoptisen polarisointisäteen yhdistin ja jakaja polarisaatioherkällä optiikalla Combinateur et séparateur de faisceau de polarisation à fibre optique avec optique sensible à la polarisation Faseroptischer Polarisationsstrahlkombinierer und -teiler mit polarisationsempfindlicher Optik ?wiat?owodowy ??cznik i rozdzielacz wi?zki polaryzacyjnej z optyk? wra?liw? na polaryzacj? HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad X Type 2x2 4-port Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W  Watt Watts HP CW Continuous Wave FPDC FPDS 1150nm 1140nm 1190nm 1145nm 1155nm 1160nm 1165nm 1170nm 1175nm 1180nm 1185nm 1190nm 1195nm 1200nm Fiber optical polarization beam combiner and splitter with polarization sensitive optics Combinador e divisor de feixe de polarização óptica de fibra com óptica sensível à polarização Combinador y divisor de haz de polarización de fibra óptica con óptica sensible a la polarización Combinatore e splitter di fascio di polarizzazione ottica in fibra con ottica sensibile alla polarizzazione Kuituoptisen polarisointisäteen yhdistin ja jakaja polarisaatioherkällä optiikalla Combinateur et séparateur de faisceau de polarisation à fibre optique avec optique sensible à la polarisation Faseroptischer Polarisationsstrahlkombinierer und -teiler mit polarisationsempfindlicher Optik ?wiat?owodowy ??cznik i rozdzielacz wi?zki polaryzacyjnej z optyk? wra?liw? na polaryzacj? HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad PMSC Cladding DC PMDC Double Clad X Type 2x2 4-port Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W  Watt Watts HP CW Continuous Wave SS SP PP PS
TYPICAL SPECIFICATIONS
Center Wavelength 1150nm
Bandwidth +/-10nm
Insertion Loss <=1.5dB
Return Loss >=45dB
Extinction Ratio (for FPDS) >=18dB
Fiber Type at Port3&4 Same Fiber or Corresponding SM Fiber
Fiber Type at Port1&2 PM980 Fiber, PM1060L Fiber or PM1060L-FA Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W, 25W, 30W, 40W, 50W, 60W, 100W
Operating Temperature 0~50degreeC

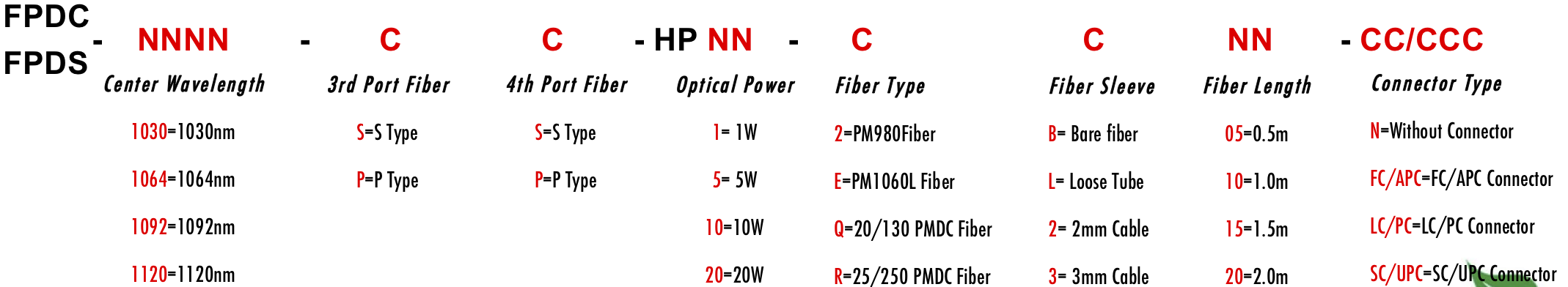

ORDERING INFORMATION/PART NUMBER(PN)
