2050nm PBC-PBS/Isolator Hybrid

DESCRIPTION
Haphit provides fiber based passive components. The PBC-PBS/Isolator Hybrid is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum, High Isolation and High Extinction Ratio. The PBC-PBS/Isolator Hybrid will combine or split two linear polarized light while at the same time block the backward signal to force signal transmitting at single direction. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FHIC FHIS 2050nm 2040nm 2030nm 2060nm 2070nm 2045nm 2055nm 2035nm 2065nm fiber optical PBS PBS polarization beam combiner and polariation beam splitter with isolator hybrid faseroptischer PBS PBS-Polarisationsstrahlkombinierer und Polarisationsstrahlteiler mit Isolatorhybrid ?wiat?owodowy ??cznik wi?zki polaryzacyjnej PBS PBS i rozdzielacz wi?zki polaryzacyjnej z hybrydowym izolatorem kuituoptinen PBS PBS -polarisaatiosädekombinaattori ja polarisaatiopalkinjakaja eristinhybridi Combinateur de faisceau de polarisation PBS PBS à fibre optique et séparateur de faisceau de polarisation avec isolateur hybride fibra óptica PBS PBS polarização feixe combinador e polarização feixe divisor com isolador híbrido Combinador de haz de polarización PBS PBS de fibra óptica y divisor de haz de polarización con aislador híbrido fibra ottica PBS PBS combinatore di fascio di polarizzazione e divisore di fascio di polarizzazione con isolatore ibrido PM1550 PM1950 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda FHIC FHIS 2050nm 2040nm 2030nm 2060nm 2070nm 2045nm 2055nm 2035nm 2065nm fiber optical PBS PBS polarization beam combiner and polariation beam splitter with isolator hybrid faseroptischer PBS PBS-Polarisationsstrahlkombinierer und Polarisationsstrahlteiler mit Isolatorhybrid ?wiat?owodowy ??cznik wi?zki polaryzacyjnej PBS PBS i rozdzielacz wi?zki polaryzacyjnej z hybrydowym izolatorem kuituoptinen PBS PBS -polarisaatiosädekombinaattori ja polarisaatiopalkinjakaja eristinhybridi Combinateur de faisceau de polarisation PBS PBS à fibre optique et séparateur de faisceau de polarisation avec isolateur hybride fibra óptica PBS PBS polarização feixe combinador e polarização feixe divisor com isolador híbrido Combinador de haz de polarización PBS PBS de fibra óptica y divisor de haz de polarización con aislador híbrido fibra ottica PBS PBS combinatore di fascio di polarizzazione e divisore di fascio di polarizzazione con isolatore ibrido PM1550 PM1950 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda FHIC FHIS 2050nm 2040nm 2030nm 2060nm 2070nm 2045nm 2055nm 2035nm 2065nm fiber optical PBS PBS polarization beam combiner and polariation beam splitter with isolator hybrid faseroptischer PBS PBS-Polarisationsstrahlkombinierer und Polarisationsstrahlteiler mit Isolatorhybrid ?wiat?owodowy ??cznik wi?zki polaryzacyjnej PBS PBS i rozdzielacz wi?zki polaryzacyjnej z hybrydowym izolatorem kuituoptinen PBS PBS -polarisaatiosädekombinaattori ja polarisaatiopalkinjakaja eristinhybridi Combinateur de faisceau de polarisation PBS PBS à fibre optique et séparateur de faisceau de polarisation avec isolateur hybride fibra óptica PBS PBS polarização feixe combinador e polarização feixe divisor com isolador híbrido Combinador de haz de polarización PBS PBS de fibra óptica y divisor de haz de polarización con aislador híbrido fibra ottica PBS PBS combinatore di fascio di polarizzazione e divisore di fascio di polarizzazione con isolatore ibrido PM1550 PM1950 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda SS SP SQ DS SP DQ
TYPICAL SPECIFICATIONS
Center Wavelength 2050nm
Bandwidth +/-20nm
Isolation >=16dB (Single Stage), >=30dB (Dual Stage)
Insertion Loss (23degree) <=1.6dB (Single Stage), <=1.9dB (Dual Stage)
Return Loss >=50/45dB
Extinction Ratio >=18dB
Fiber Type of Port3 S Type: Corresponding SM Fiber
P Type: Same Fiber to Port1&2, Slow axis align to Port 1
Q Type: Same Fiber to Port1&2, Slow axis is 45° to Port 1
Fiber Type of Port1&2 PM1550 Fiber or PM1950 Fiber
10/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

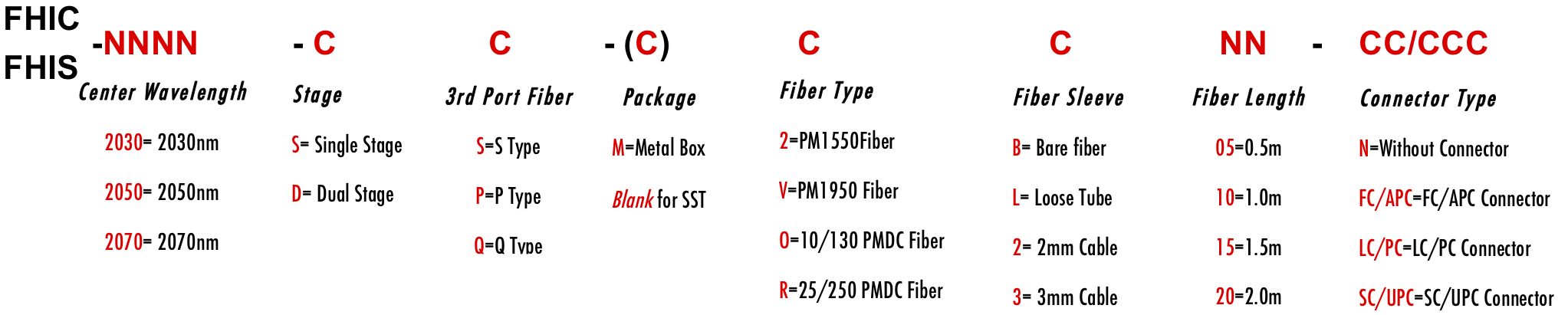

ORDERING INFORMATION/PART NUMBER(PN)
