1103nm Inline PBC-PBS/Isolator Hybrid for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The PBC-PBS/Isolator Hybrid is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum, High Isolation and High Extinction Ratio. The PBC-PBS/Isolator Hybrid will combine or split two linear polarized light while at the same time block the backward signal to force signal transmitting at single direction. The pulse power version is specially designed to withstand high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FHIC FHIS 1103nm 1090nm 1100nm 1103nm 1110nm 1102nm 1111nm 1104nm 1105nm 1095nm 1099nm 1098nm 1097nm 1096nmfiber optical PBS PBS polarization beam combiner and polariation beam splitter with isolator hybrid faseroptischer PBS PBS-Polarisationsstrahlkombinierer und Polarisationsstrahlteiler mit Isolatorhybrid ?wiat?owodowy ??cznik wi?zki polaryzacyjnej PBS PBS i rozdzielacz wi?zki polaryzacyjnej z hybrydowym izolatorem kuituoptinen PBS PBS -polarisaatiosädekombinaattori ja polarisaatiopalkinjakaja eristinhybridi Combinateur de faisceau de polarisation PBS PBS à fibre optique et séparateur de faisceau de polarisation avec isolateur hybride fibra óptica PBS PBS polarização feixe combinador e polarização feixe divisor com isolador híbrido Combinador de haz de polarización PBS PBS de fibra óptica y divisor de haz de polarización con aislador híbrido fibra ottica PBS PBS combinatore di fascio di polarizzazione e divisore di fascio di polarizzazione con isolatore ibrido PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 300mW 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FHIC FHIS 1103nm 1090nm 1100nm 1103nm 1110nm 1102nm 1111nm 1104nm 1105nm 1095nm 1099nm 1098nm 1097nm 1096nmfiber optical PBS PBS polarization beam combiner and polariation beam splitter with isolator hybrid faseroptischer PBS PBS-Polarisationsstrahlkombinierer und Polarisationsstrahlteiler mit Isolatorhybrid ?wiat?owodowy ??cznik wi?zki polaryzacyjnej PBS PBS i rozdzielacz wi?zki polaryzacyjnej z hybrydowym izolatorem kuituoptinen PBS PBS -polarisaatiosädekombinaattori ja polarisaatiopalkinjakaja eristinhybridi Combinateur de faisceau de polarisation PBS PBS à fibre optique et séparateur de faisceau de polarisation avec isolateur hybride fibra óptica PBS PBS polarização feixe combinador e polarização feixe divisor com isolador híbrido Combinador de haz de polarización PBS PBS de fibra óptica y divisor de haz de polarización con aislador híbrido fibra ottica PBS PBS combinatore di fascio di polarizzazione e divisore di fascio di polarizzazione con isolatore ibrido PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 300mW 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FHIC FHIS 1103nm 1090nm 1100nm 1103nm 1110nm 1102nm 1111nm 1104nm 1105nm 1095nm 1099nm 1098nm 1097nm 1096nmfiber optical PBS PBS polarization beam combiner and polariation beam splitter with isolator hybrid faseroptischer PBS PBS-Polarisationsstrahlkombinierer und Polarisationsstrahlteiler mit Isolatorhybrid ?wiat?owodowy ??cznik wi?zki polaryzacyjnej PBS PBS i rozdzielacz wi?zki polaryzacyjnej z hybrydowym izolatorem kuituoptinen PBS PBS -polarisaatiosädekombinaattori ja polarisaatiopalkinjakaja eristinhybridi Combinateur de faisceau de polarisation PBS PBS à fibre optique et séparateur de faisceau de polarisation avec isolateur hybride fibra óptica PBS PBS polarização feixe combinador e polarização feixe divisor com isolador híbrido Combinador de haz de polarización PBS PBS de fibra óptica y divisor de haz de polarización con aislador híbrido fibra ottica PBS PBS combinatore di fascio di polarizzazione e divisore di fascio di polarizzazione con isolatore ibrido PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 300mW 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP SS SP SQ DS SP DQ
TYPICAL SPECIFICATIONS
Center Wavelength 1103nm
Peak Isolation 25dB (Single Stage), 40dB (Dual Stage)
Isolation >=20dB (Single Stage), >=38dB (Dual Stage)
Insertion Loss (Typical, 23degree) 1.7dB (Single Stage), 2.6dB (Dual Stage)
Insertion Loss <=2.5dB (Single Stage), <=3.9dB (Dual Stage)
Return Loss >=50/45dB
Extinction Ratio >=18dB
Fiber Type of Port3 S Type: Corresponding SM Fiber
P Type: Same Fiber to Port1&2, Slow axis align to Port 1
Q Type: Same Fiber to Port1&2, Slow axis is 45° to Port 1
Fiber Type of Port1&2 PM980 Fiber, PM1060L Fiber or PM1060L-FA Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Average Power 300mW
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

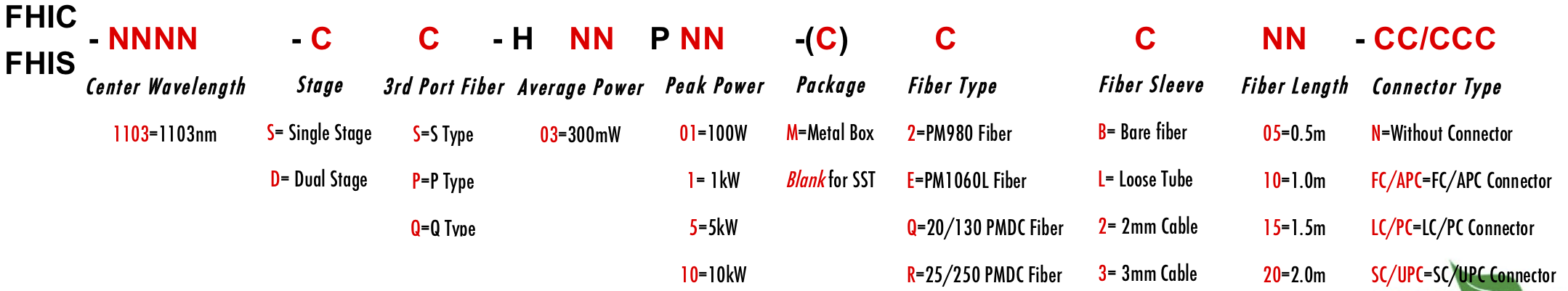

ORDERING INFORMATION/PART NUMBER(PN)
