1120nm Inline PBC-PBS/Isolator Hybrid

DESCRIPTION
Haphit provides fiber based passive components. The PBC-PBS/Isolator Hybrid is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum, High Isolation and High Extinction Ratio. The PBC-PBS/Isolator Hybrid will combine or split two linear polarized light while at the same time block the backward signal to force signal transmitting at single direction. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FHIC FHIS 1120nm 1110nm 1130nm 1125nm 1115nm 1116nm 1117nm 1118nm 1119nm 1121nm 1122nm 1123nm 1124nm fiber optical PBS PBS polarization beam combiner and polariation beam splitter with isolator hybrid faseroptischer PBS PBS-Polarisationsstrahlkombinierer und Polarisationsstrahlteiler mit Isolatorhybrid ?wiat?owodowy ??cznik wi?zki polaryzacyjnej PBS PBS i rozdzielacz wi?zki polaryzacyjnej z hybrydowym izolatorem kuituoptinen PBS PBS -polarisaatiosädekombinaattori ja polarisaatiopalkinjakaja eristinhybridi Combinateur de faisceau de polarisation PBS PBS à fibre optique et séparateur de faisceau de polarisation avec isolateur hybride fibra óptica PBS PBS polarização feixe combinador e polarização feixe divisor com isolador híbrido Combinador de haz de polarización PBS PBS de fibra óptica y divisor de haz de polarización con aislador híbrido fibra ottica PBS PBS combinatore di fascio di polarizzazione e divisore di fascio di polarizzazione con isolatore ibrido PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda FHIC FHIS 1120nm 1110nm 1130nm 1125nm 1115nm 1116nm 1117nm 1118nm 1119nm 1121nm 1122nm 1123nm 1124nm fiber optical PBS PBS polarization beam combiner and polariation beam splitter with isolator hybrid faseroptischer PBS PBS-Polarisationsstrahlkombinierer und Polarisationsstrahlteiler mit Isolatorhybrid ?wiat?owodowy ??cznik wi?zki polaryzacyjnej PBS PBS i rozdzielacz wi?zki polaryzacyjnej z hybrydowym izolatorem kuituoptinen PBS PBS -polarisaatiosädekombinaattori ja polarisaatiopalkinjakaja eristinhybridi Combinateur de faisceau de polarisation PBS PBS à fibre optique et séparateur de faisceau de polarisation avec isolateur hybride fibra óptica PBS PBS polarização feixe combinador e polarização feixe divisor com isolador híbrido Combinador de haz de polarización PBS PBS de fibra óptica y divisor de haz de polarización con aislador híbrido fibra ottica PBS PBS combinatore di fascio di polarizzazione e divisore di fascio di polarizzazione con isolatore ibrido PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda FHIC FHIS 1120nm 1110nm 1130nm 1125nm 1115nm 1116nm 1117nm 1118nm 1119nm 1121nm 1122nm 1123nm 1124nm fiber optical PBS PBS polarization beam combiner and polariation beam splitter with isolator hybrid faseroptischer PBS PBS-Polarisationsstrahlkombinierer und Polarisationsstrahlteiler mit Isolatorhybrid ?wiat?owodowy ??cznik wi?zki polaryzacyjnej PBS PBS i rozdzielacz wi?zki polaryzacyjnej z hybrydowym izolatorem kuituoptinen PBS PBS -polarisaatiosädekombinaattori ja polarisaatiopalkinjakaja eristinhybridi Combinateur de faisceau de polarisation PBS PBS à fibre optique et séparateur de faisceau de polarisation avec isolateur hybride fibra óptica PBS PBS polarização feixe combinador e polarização feixe divisor com isolador híbrido Combinador de haz de polarización PBS PBS de fibra óptica y divisor de haz de polarización con aislador híbrido fibra ottica PBS PBS combinatore di fascio di polarizzazione e divisore di fascio di polarizzazione con isolatore ibrido PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda SS SP SQ DS SP DQ
TYPICAL SPECIFICATIONS
Center Wavelength 1120nm
Peak Isolation 25dB (Single Stage), 40dB (Dual Stage)
Isolation >=18dB (Single Stage), >=35dB (Dual Stage)
Insertion Loss (Typical, 23degree) 1.7dB (Single Stage), 2.6dB (Dual Stage)
Insertion Loss <=2.5dB (Single Stage), <=3.9dB (Dual Stage)
Return Loss >=50/45dB
Extinction Ratio >=20dB
Fiber Type of Port3 S Type: Corresponding SM Fiber
P Type: Same Fiber to Port1&2, Slow axis align to Port 1
Q Type: Same Fiber to Port1&2, Slow axis is 45° to Port 1
Fiber Type of Port1&2 PM980 Fiber, PM1060L Fiber or PM1060L-FA Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

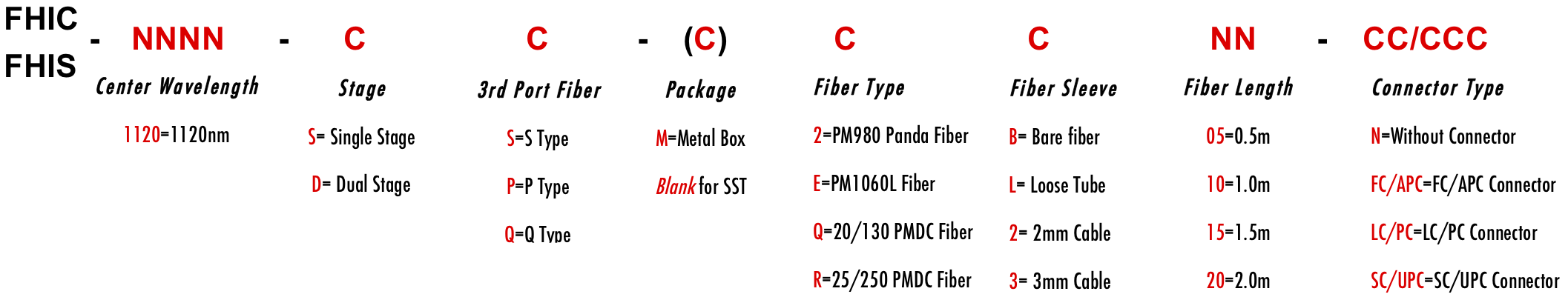

ORDERING INFORMATION/PART NUMBER(PN)
