1030nm Optical Inline Depolarizer for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Optical Inline Depolarizer is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and High Reliability. The Optical Inline Depolarizer will depolarize light signal by transforming linear polarized light into circular polarized light. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FIDP 1030nm 1010nm 1050nm 1015nm 1016nm 1020nm 1025nm 1035nm 1036nm 1040nm 1045nm Optical fiber Inline Depolarizer polarization dependent depolarise polariser polariser polariser Polarizador en línea de fibra óptica polarizador despolarizado polarizador polarizador polarizador en línea Polarizador em linha de fibra ótica polarizador dependente despolarizar polarizador polarizador polarizador Polarizzatore in linea a fibra ottica polarizzatore polarizzatore depolarizzato dipendente dalla polarizzazione Optisen kuidun linjapolarisaattorin polarisaatiosta riippuvainen depolarisoiva polarisoija polariser polariser Polariseur en ligne à fibre optique polarisant dépolarisant polariseur polariseur polariseur Optische Faser Inline-Polarisator Polarisation abhängig Depolarisationspolarisator Polarisator Polarisator Wbudowany polaryzator ?wiat?owodowy, zale?ny od polaryzacji, polaryzacyjny polaryzator polaryzacyjny HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um SC Single Clad PMSC Cladding Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FIDP 1030nm 1010nm 1050nm 1015nm 1016nm 1020nm 1025nm 1035nm 1036nm 1040nm 1045nm Optical fiber Inline Depolarizer polarization dependent depolarise polariser polariser polariser Polarizador en línea de fibra óptica polarizador despolarizado polarizador polarizador polarizador en línea Polarizador em linha de fibra ótica polarizador dependente despolarizar polarizador polarizador polarizador Polarizzatore in linea a fibra ottica polarizzatore polarizzatore depolarizzato dipendente dalla polarizzazione Optisen kuidun linjapolarisaattorin polarisaatiosta riippuvainen depolarisoiva polarisoija polariser polariser Polariseur en ligne à fibre optique polarisant dépolarisant polariseur polariseur polariseur Optische Faser Inline-Polarisator Polarisation abhängig Depolarisationspolarisator Polarisator Polarisator Wbudowany polaryzator ?wiat?owodowy, zale?ny od polaryzacji, polaryzacyjny polaryzator polaryzacyjny HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um SC Single Clad PMSC Cladding Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FIDP 1030nm 1010nm 1050nm 1015nm 1016nm 1020nm 1025nm 1035nm 1036nm 1040nm 1045nm Optical fiber Inline Depolarizer polarization dependent depolarise polariser polariser polariser Polarizador en línea de fibra óptica polarizador despolarizado polarizador polarizador polarizador en línea Polarizador em linha de fibra ótica polarizador dependente despolarizar polarizador polarizador polarizador Polarizzatore in linea a fibra ottica polarizzatore polarizzatore depolarizzato dipendente dalla polarizzazione Optisen kuidun linjapolarisaattorin polarisaatiosta riippuvainen depolarisoiva polarisoija polariser polariser Polariseur en ligne à fibre optique polarisant dépolarisant polariseur polariseur polariseur Optische Faser Inline-Polarisator Polarisation abhängig Depolarisationspolarisator Polarisator Polarisator Wbudowany polaryzator ?wiat?owodowy, zale?ny od polaryzacji, polaryzacyjny polaryzator polaryzacyjny HI1060 1060XP PM980 PM980XP PM980HP LMA 6/125um SC Single Clad PMSC Cladding Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP P
TYPICAL SPECIFICATIONS
Center Wavelength 1030nm
Bandwidth +/-20nm
Insertion Loss <=0.8dB
Max. Degree of Polarization 10%
Return Loss >=50dB
Input Fiber Type HI1060 Fiber or PM980 Panda Fiber
Output Fiber Type HI1060 Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

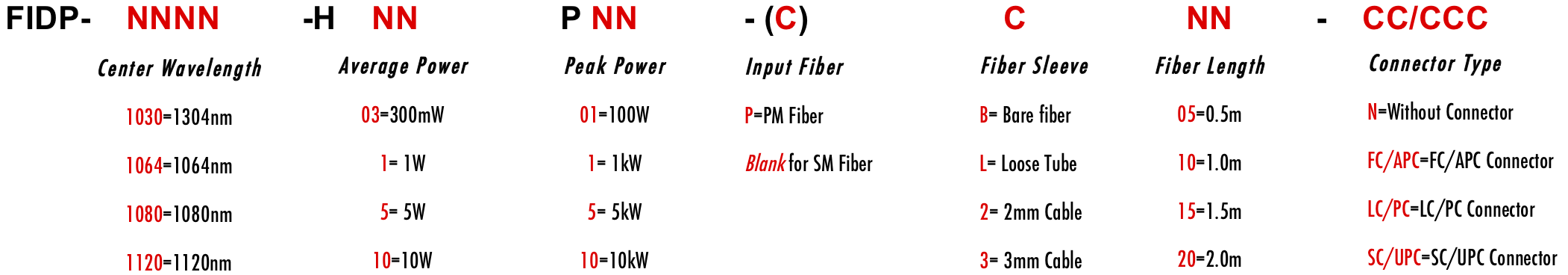

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
