	1900nm Chirped Fiber Bragg Grating (FBG) for Pulse Power

DESCRIPTION

Haphit provides fiber based passive components. The Chirped Fiber Bragg Grating (FBG) is made by special technology with fiber in and out. It features various Bandwidth and Reflectivity. The Fiber Bragg Grating will reflect particular wavelengths of light and transmit all others. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.

FBGC 1900nm 1880nm 1920nm 1885nm 1890nm 1905nm 1910nm 1915nm polarization insensitive fiber pigtailed fiber bragg grating FBG for light signal sensing and high power laser with high reflectivity mirror and optical coupler polarisaatiolle herkkä kuitu pigtailed -kuitukerroin FBG valosignaalin tunnistamiseen ja suuritehoinen laser, jossa on heijastava peili ja optinen liitin Fibre insensible à la polarisation réseau de Bragg à fibre amorce FBG pour la détection du signal lumineux et laser haute puissance avec miroir à haute réflectivité et coupleur optique polarisationsunempfindliches Faser-Pigtail-Faser-Bragg-Gitter FBG für die Lichtsignalerfassung und Hochleistungslaser mit hochreflektierendem Spiegel und Optokoppler fibra insensibile alla polarizzazione reticolo di bragg fibra pigtailed FBG per il rilevamento del segnale luminoso e laser ad alta potenza con specchio ad alta riflettività e accoppiatore ottico niewra?liwy na polaryzacj? w?ókno typu pigtailed siatka Bragga FBG do wykrywania sygna?u ?wietlnego i laser o du?ej mocy z lustrem o wysokim wspó?czynniku odbicia i sprz?gaczem optycznym fibra insensível à polarização fibra trançada com grade FBG para detecção de sinal de luz e laser de alta potência com espelho de alta refletividade e acoplador óptico fibra insensible a la polarización fibra trenzada rejilla bragg FBG para detección de señales de luz y láser de alta potencia con espejo de alta reflectividad y acoplador óptico SMF-28 SMF28 SM1950 PM1550 PM1950 PM2000 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 300mW 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FBGC 1900nm 1880nm 1920nm 1885nm 1890nm 1905nm 1910nm 1915nm polarization insensitive fiber pigtailed fiber bragg grating FBG for light signal sensing and high power laser with high reflectivity mirror and optical coupler polarisaatiolle herkkä kuitu pigtailed -kuitukerroin FBG valosignaalin tunnistamiseen ja suuritehoinen laser, jossa on heijastava peili ja optinen liitin Fibre insensible à la polarisation réseau de Bragg à fibre amorce FBG pour la détection du signal lumineux et laser haute puissance avec miroir à haute réflectivité et coupleur optique polarisationsunempfindliches Faser-Pigtail-Faser-Bragg-Gitter FBG für die Lichtsignalerfassung und Hochleistungslaser mit hochreflektierendem Spiegel und Optokoppler fibra insensibile alla polarizzazione reticolo di bragg fibra pigtailed FBG per il rilevamento del segnale luminoso e laser ad alta potenza con specchio ad alta riflettività e accoppiatore ottico niewra?liwy na polaryzacj? w?ókno typu pigtailed siatka Bragga FBG do wykrywania sygna?u ?wietlnego i laser o du?ej mocy z lustrem o wysokim wspó?czynniku odbicia i sprz?gaczem optycznym fibra insensível à polarização fibra trançada com grade FBG para detecção de sinal de luz e laser de alta potência com espelho de alta refletividade e acoplador óptico fibra insensible a la polarización fibra trenzada rejilla bragg FBG para detección de señales de luz y láser de alta potencia con espejo de alta reflectividad y acoplador óptico SMF-28 SMF28 SM1950 PM1550 PM1950 PM2000 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 300mW 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FBGC 1900nm 1880nm 1920nm 1885nm 1890nm 1905nm 1910nm 1915nm polarization insensitive fiber pigtailed fiber bragg grating FBG for light signal sensing and high power laser with high reflectivity mirror and optical coupler polarisaatiolle herkkä kuitu pigtailed -kuitukerroin FBG valosignaalin tunnistamiseen ja suuritehoinen laser, jossa on heijastava peili ja optinen liitin Fibre insensible à la polarisation réseau de Bragg à fibre amorce FBG pour la détection du signal lumineux et laser haute puissance avec miroir à haute réflectivité et coupleur optique polarisationsunempfindliches Faser-Pigtail-Faser-Bragg-Gitter FBG für die Lichtsignalerfassung und Hochleistungslaser mit hochreflektierendem Spiegel und Optokoppler fibra insensibile alla polarizzazione reticolo di bragg fibra pigtailed FBG per il rilevamento del segnale luminoso e laser ad alta potenza con specchio ad alta riflettività e accoppiatore ottico niewra?liwy na polaryzacj? w?ókno typu pigtailed siatka Bragga FBG do wykrywania sygna?u ?wietlnego i laser o du?ej mocy z lustrem o wysokim wspó?czynniku odbicia i sprz?gaczem optycznym fibra insensível à polarização fibra trançada com grade FBG para detecção de sinal de luz e laser de alta potência com espelho de alta refletividade e acoplador óptico fibra insensible a la polarización fibra trenzada rejilla bragg FBG para detección de señales de luz y láser de alta potencia con espejo de alta reflectividad y acoplador óptico SMF-28 SMF28 SM1950 PM1550 PM1950 PM2000 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 300mW 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP AP ATP ASP BP BTP BSP CP CTP CSP DP DTP DSP EP ETP ESP

TYPICAL SPECIFICATIONS

Center Wavelength	1880~1930nm
Reflectivity	0.5~99.9%
FWHM	1~20nm
Side Mode Suppression Ratio (SMSR)	A: >=8dB; B: >=10dB; C: >=15dB; D: >=20dB; E: >=25dB
Extinction Ratio (for PM Fiber Type)	>=18dB
SM Fiber Type	SMF-28 Fiber, SM1950 Fiber(V), 10/130um NA=0.15(O), 25/250um NA=0.09(R), 25/400um NA=0.09(R4), or specified by customer
PM Fiber Type	PM1550 Fiber, PM1950 Fiber(V), 10/130um NA=0.15(O), 25/250um NA=0.09(R), 25/400um NA=0.09(R4), or specified by customer
Max. Signal Average Optical Power	1W, 5W, 10W, 30W, 50W, 100W, 300W, 500W, 1000W, 2000W, 3000W
Max. Cladding Average Optical Power	1W, 5W, 10W, 30W, 50W, 100W, 300W, 500W, 1000W, 2000W, 3000W
Max. Peak Power for Pulse	100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW, 50kW, 100kW
Operating Temperature	0~50degreeC

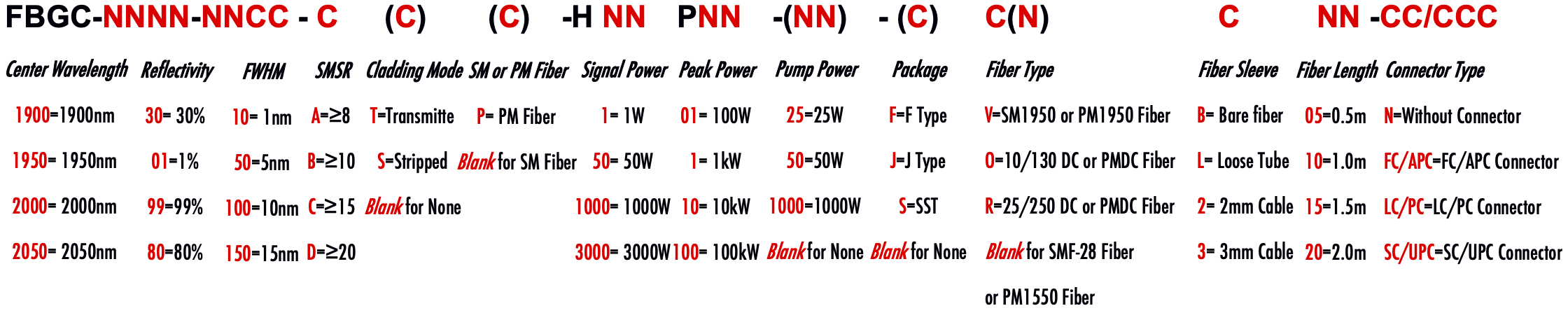

ORDERING INFORMATION/PART NUMBER(PN)
