976nm Fiber Bragg Grating (FBG) for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Fiber Bragg Grating (FBG) is made by special technology with fiber in and out. It features various Bandwidth and Reflectivity. The Fiber Bragg Grating will reflect particular wavelengths of light and transmit all others. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FBGA 976nm 975nm 1000nm 978nm 980nm 985nm 986nm 990nm 995nm 996nm polarization insensitive fiber pigtailed fiber bragg grating FBG for light signal sensing and high power laser with high reflectivity mirror and optical coupler polarisaatiolle herkkä kuitu pigtailed -kuitukerroin FBG valosignaalin tunnistamiseen ja suuritehoinen laser, jossa on heijastava peili ja optinen liitin Fibre insensible à la polarisation réseau de Bragg à fibre amorce FBG pour la détection du signal lumineux et laser haute puissance avec miroir à haute réflectivité et coupleur optique polarisationsunempfindliches Faser-Pigtail-Faser-Bragg-Gitter FBG für die Lichtsignalerfassung und Hochleistungslaser mit hochreflektierendem Spiegel und Optokoppler fibra insensibile alla polarizzazione reticolo di bragg fibra pigtailed FBG per il rilevamento del segnale luminoso e laser ad alta potenza con specchio ad alta riflettività e accoppiatore ottico niewra?liwy na polaryzacj? w?ókno typu pigtailed siatka Bragga FBG do wykrywania sygna?u ?wietlnego i laser o du?ej mocy z lustrem o wysokim wspó?czynniku odbicia i sprz?gaczem optycznym fibra insensível à polarização fibra trançada com grade FBG para detecção de sinal de luz e laser de alta potência com espelho de alta refletividade e acoplador óptico fibra insensible a la polarización fibra trenzada rejilla bragg FBG para detección de señales de luz y láser de alta potencia con espejo de alta reflectividad y acoplador óptico HI1060 1060XP PM980 PM1060L PM980HP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 300mW 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FBGA 976nm 975nm 1000nm 978nm 980nm 985nm 986nm 990nm 995nm 996nm polarization insensitive fiber pigtailed fiber bragg grating FBG for light signal sensing and high power laser with high reflectivity mirror and optical coupler polarisaatiolle herkkä kuitu pigtailed -kuitukerroin FBG valosignaalin tunnistamiseen ja suuritehoinen laser, jossa on heijastava peili ja optinen liitin Fibre insensible à la polarisation réseau de Bragg à fibre amorce FBG pour la détection du signal lumineux et laser haute puissance avec miroir à haute réflectivité et coupleur optique polarisationsunempfindliches Faser-Pigtail-Faser-Bragg-Gitter FBG für die Lichtsignalerfassung und Hochleistungslaser mit hochreflektierendem Spiegel und Optokoppler fibra insensibile alla polarizzazione reticolo di bragg fibra pigtailed FBG per il rilevamento del segnale luminoso e laser ad alta potenza con specchio ad alta riflettività e accoppiatore ottico niewra?liwy na polaryzacj? w?ókno typu pigtailed siatka Bragga FBG do wykrywania sygna?u ?wietlnego i laser o du?ej mocy z lustrem o wysokim wspó?czynniku odbicia i sprz?gaczem optycznym fibra insensível à polarização fibra trançada com grade FBG para detecção de sinal de luz e laser de alta potência com espelho de alta refletividade e acoplador óptico fibra insensible a la polarización fibra trenzada rejilla bragg FBG para detección de señales de luz y láser de alta potencia con espejo de alta reflectividad y acoplador óptico HI1060 1060XP PM980 PM1060L PM980HP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 300mW 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FBGA 976nm 975nm 1000nm 978nm 980nm 985nm 986nm 990nm 995nm 996nm polarization insensitive fiber pigtailed fiber bragg grating FBG for light signal sensing and high power laser with high reflectivity mirror and optical coupler polarisaatiolle herkkä kuitu pigtailed -kuitukerroin FBG valosignaalin tunnistamiseen ja suuritehoinen laser, jossa on heijastava peili ja optinen liitin Fibre insensible à la polarisation réseau de Bragg à fibre amorce FBG pour la détection du signal lumineux et laser haute puissance avec miroir à haute réflectivité et coupleur optique polarisationsunempfindliches Faser-Pigtail-Faser-Bragg-Gitter FBG für die Lichtsignalerfassung und Hochleistungslaser mit hochreflektierendem Spiegel und Optokoppler fibra insensibile alla polarizzazione reticolo di bragg fibra pigtailed FBG per il rilevamento del segnale luminoso e laser ad alta potenza con specchio ad alta riflettività e accoppiatore ottico niewra?liwy na polaryzacj? w?ókno typu pigtailed siatka Bragga FBG do wykrywania sygna?u ?wietlnego i laser o du?ej mocy z lustrem o wysokim wspó?czynniku odbicia i sprz?gaczem optycznym fibra insensível à polarização fibra trançada com grade FBG para detecção de sinal de luz e laser de alta potência com espelho de alta refletividade e acoplador óptico fibra insensible a la polarización fibra trenzada rejilla bragg FBG para detección de señales de luz y láser de alta potencia con espejo de alta reflectividad y acoplador óptico HI1060 1060XP PM980 PM1060L PM980HP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 300mW 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP AP ATP ASP BP BTP BSP CP CTP CSP DP DTP DSP EP ETP ESP
TYPICAL SPECIFICATIONS
Center Wavelength 975~1000nm
Reflectivity 0.5~99.9%
FWHM 0.1~3.0nm
Side Mode Suppression Ratio (SMSR) A: >=8dB; B: >=10dB; C: >=15dB;
D: >=20dB; E: >=25dB
Extinction Ratio (for PM Fiber Type) >=18dB
SM Fiber Type HI1060 Fiber, 6/125um NA=0.14(N), 5/130um NA=0.12(N1),
10/125um NA=0.075(O), 15/130um NA=0.075(W), 20/130um NA=0.075(Q),
SM Fiber Type 25/250um NA=0.065(R), 25/400um NA=0.065(R1), 30/250um NA=0.06(R6),
30/400um NA=0.06(R3) or specified by customer
PM Fiber Type PM980 Fiber, PM1060L Fiber (E), 6/125um NA=0.14(N),
5/130um NA=0.12(N1), 10/125um NA=0.075(O), 15/130um NA=0.075(W),
PM Fiber Type 20/130um NA=0.075(Q), 25/250um NA=0.065(R), 25/400um NA=0.065(R1),
30/250um NA=0.06(R6), 30/400um NA=0.06(R3) or specified by customer
Max. Signal Average Optical Power 1W, 5W, 10W, 30W, 50W, 100W, 300W, 500W,
1000W, 2000W, 3000W
Max. Cladding Average Optical Power 1W, 5W, 10W, 30W, 50W, 100W, 300W, 500W,
1000W, 2000W, 3000W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW, 50kW, 100kW
Operating Temperature 0~50degreeC

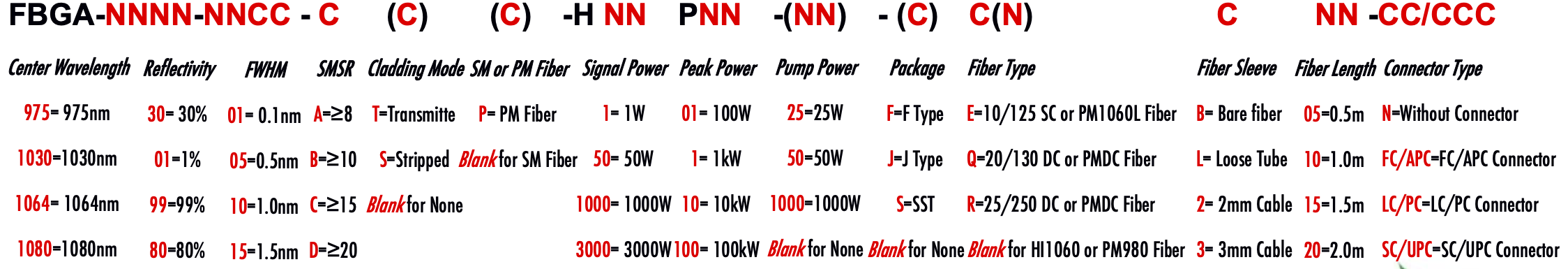

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
