1310nm Fiber Pigtailed PhotoDiode for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Fiber Pigtailed PhotoDiode is made by micro-optics package technology with fiber in. It features Wide Spectrum and High Responsivity. The Fiber Pigtailed PhotoDiode will convert the input light signals into electronic signals. The pulse power version is specially designed to withstand high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
PFPD 1310nm 1260nm 1350nm 1265nm 1270nm 1275nm 1280nm 1285nm 1290nm 1295nm 1300nm 1305nm 1306nm 1315nm 1320nm 1325nm 1330nm 1335nm 1340nm 1245nm polarization insensitive fiber pigtailed photodiode PD for power monitoring with light signal polarisationsunempfindliche Faser-Pigtail-Photodiode PD zur Leistungsüberwachung mit Lichtsignal Photodiode PD en queue de cochon à fibre insensible à la polarisation pour la surveillance de la puissance avec signal lumineux polarisaatioherkkä kuitu pigtailed -fotodiodi PD tehonvalvontaan valosignaalin avulla fotodiodo PD pigtail in fibra insensibile alla polarizzazione per il monitoraggio della potenza con segnale luminoso niewra?liwa na polaryzacj? fotodioda typu pigtailed PD do monitorowania mocy z sygna?em ?wietlnym fotodiodo de fibra insensível à polarização PD para monitoramento de energia com sinal de luz fotodiodo PD de fibra flexible insensible a la polarización para monitorización de potencia con señal luminosa SMF-28 SMF28 PM1310 PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 10mW 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP PFPD 1310nm 1260nm 1350nm 1265nm 1270nm 1275nm 1280nm 1285nm 1290nm 1295nm 1300nm 1305nm 1306nm 1315nm 1320nm 1325nm 1330nm 1335nm 1340nm 1245nm polarization insensitive fiber pigtailed photodiode PD for power monitoring with light signal polarisationsunempfindliche Faser-Pigtail-Photodiode PD zur Leistungsüberwachung mit Lichtsignal Photodiode PD en queue de cochon à fibre insensible à la polarisation pour la surveillance de la puissance avec signal lumineux polarisaatioherkkä kuitu pigtailed -fotodiodi PD tehonvalvontaan valosignaalin avulla fotodiodo PD pigtail in fibra insensibile alla polarizzazione per il monitoraggio della potenza con segnale luminoso niewra?liwa na polaryzacj? fotodioda typu pigtailed PD do monitorowania mocy z sygna?em ?wietlnym fotodiodo de fibra insensível à polarização PD para monitoramento de energia com sinal de luz fotodiodo PD de fibra flexible insensible a la polarización para monitorización de potencia con señal luminosa SMF-28 SMF28 PM1310 PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 10mW 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP PFPD 1310nm 1260nm 1350nm 1265nm 1270nm 1275nm 1280nm 1285nm 1290nm 1295nm 1300nm 1305nm 1306nm 1315nm 1320nm 1325nm 1330nm 1335nm 1340nm 1245nm polarization insensitive fiber pigtailed photodiode PD for power monitoring with light signal polarisationsunempfindliche Faser-Pigtail-Photodiode PD zur Leistungsüberwachung mit Lichtsignal Photodiode PD en queue de cochon à fibre insensible à la polarisation pour la surveillance de la puissance avec signal lumineux polarisaatioherkkä kuitu pigtailed -fotodiodi PD tehonvalvontaan valosignaalin avulla fotodiodo PD pigtail in fibra insensibile alla polarizzazione per il monitoraggio della potenza con segnale luminoso niewra?liwa na polaryzacj? fotodioda typu pigtailed PD do monitorowania mocy z sygna?em ?wietlnym fotodiodo de fibra insensível à polarização PD para monitoramento de energia com sinal de luz fotodiodo PD de fibra flexible insensible a la polarización para monitorización de potencia con señal luminosa SMF-28 SMF28 PM1310 PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 10mW 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 20SP 20MP 05SP 05MP
TYPICAL SPECIFICATIONS
Center Wavelength 1310nm
Bandwidth +/-30nm
Responsivity >=0.75A/W@1310nm
>=0.80A/W@1550nm
Return Loss >=40dB
Dark Current (Vr=5V, 70degree) <=2.5nA (Bandwidth=2G)
<=10nA (Bandwidth=0.5G)
Capacitance (Vr=5V, 1MHz) <=1pF (Bandwidth=2G)
<=8pF (Bandwidth=0.5G)
SM Fiber Type SMF-28 Fiber or 10/130um DC Fiber
12/130um DC Fiber or 20/130um DC Fiber
25/250um DC Fiber or 25/300um DC Fiber
PM Fiber Type PM1310 Fiber or 10/125um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Max. Average Optical Power on PD 10mW
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~70degreeC

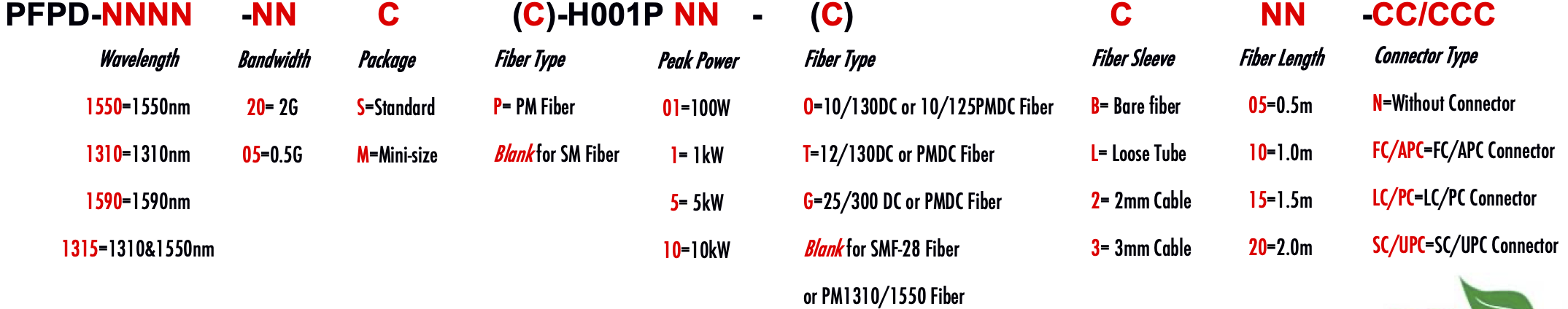

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
