1480nm Fiber Pigtailed Tap PhotoDiode for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Fiber Pigtailed Tap PhotoDiode is made by micro-optics package technology with fiber in or fiber out. It features Wide Spectrum and High Responsivity. The Fiber Pigtailed Tap PhotoDiode will tap a small portion of input light signals and convert the tapped light signals into electronic signals. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
PTPD 1480nm 1410nm 1530nm 1415nm 1420nm 1425nm 1430nm 1435nm 1440nm 1445nm 1450nm 1455nm 1460nm 1465nm 1470nm 1475nm 1485nm 1490nm 1495nm 1500nm 1505nm 1510nm 1515nm 1520nm 1525nm polarization insensitive fiber pigtailed tap photodiode PD for power monitoring with coupler and splitter to tapped light signal fotodiodo de derivación en espiral de fibra insensible a la polarización PD para monitoreo de potencia con acoplador y divisor a señal de luz derivada fotodiodo PD de derivação de fibra insensível à polarização para monitoramento de energia com acoplador e divisor para sinal de luz derivado Niewra?liwa na polaryzacj? fotodioda PD z pigtailami z odczepami do monitorowania mocy ze sprz?gaczem i rozdzielaczem do odczepianego sygna?u ?wietlnego polarisaatiolle herkkä kuitu pigtailed tap -valodiodi PD tehonvalvontaan kytkimellä ja jakajalla napautetulle valosignaalille Photodiode à prise en queue de cochon à fibre insensible à la polarisation PD pour la surveillance de l'alimentation avec coupleur et répartiteur au signal lumineux à prise polarisationsunempfindliche Faser Pigtailed Tap Photodiode PD zur Leistungsüberwachung mit Koppler und Splitter zum abgegriffenen Lichtsignal fotodiodo PD con presa a spirale in fibra insensibile alla polarizzazione per il monitoraggio della potenza con accoppiatore e sdoppiatore per segnale luminoso intercettato SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP PTPD 1480nm 1410nm 1530nm 1415nm 1420nm 1425nm 1430nm 1435nm 1440nm 1445nm 1450nm 1455nm 1460nm 1465nm 1470nm 1475nm 1485nm 1490nm 1495nm 1500nm 1505nm 1510nm 1515nm 1520nm 1525nm polarization insensitive fiber pigtailed tap photodiode PD for power monitoring with coupler and splitter to tapped light signal fotodiodo de derivación en espiral de fibra insensible a la polarización PD para monitoreo de potencia con acoplador y divisor a señal de luz derivada fotodiodo PD de derivação de fibra insensível à polarização para monitoramento de energia com acoplador e divisor para sinal de luz derivado Niewra?liwa na polaryzacj? fotodioda PD z pigtailami z odczepami do monitorowania mocy ze sprz?gaczem i rozdzielaczem do odczepianego sygna?u ?wietlnego polarisaatiolle herkkä kuitu pigtailed tap -valodiodi PD tehonvalvontaan kytkimellä ja jakajalla napautetulle valosignaalille Photodiode à prise en queue de cochon à fibre insensible à la polarisation PD pour la surveillance de l'alimentation avec coupleur et répartiteur au signal lumineux à prise polarisationsunempfindliche Faser Pigtailed Tap Photodiode PD zur Leistungsüberwachung mit Koppler und Splitter zum abgegriffenen Lichtsignal fotodiodo PD con presa a spirale in fibra insensibile alla polarizzazione per il monitoraggio della potenza con accoppiatore e sdoppiatore per segnale luminoso intercettato SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP PTPD 1480nm 1410nm 1530nm 1415nm 1420nm 1425nm 1430nm 1435nm 1440nm 1445nm 1450nm 1455nm 1460nm 1465nm 1470nm 1475nm 1485nm 1490nm 1495nm 1500nm 1505nm 1510nm 1515nm 1520nm 1525nm polarization insensitive fiber pigtailed tap photodiode PD for power monitoring with coupler and splitter to tapped light signal fotodiodo de derivación en espiral de fibra insensible a la polarización PD para monitoreo de potencia con acoplador y divisor a señal de luz derivada fotodiodo PD de derivação de fibra insensível à polarização para monitoramento de energia com acoplador e divisor para sinal de luz derivado Niewra?liwa na polaryzacj? fotodioda PD z pigtailami z odczepami do monitorowania mocy ze sprz?gaczem i rozdzielaczem do odczepianego sygna?u ?wietlnego polarisaatiolle herkkä kuitu pigtailed tap -valodiodi PD tehonvalvontaan kytkimellä ja jakajalla napautetulle valosignaalille Photodiode à prise en queue de cochon à fibre insensible à la polarisation PD pour la surveillance de l'alimentation avec coupleur et répartiteur au signal lumineux à prise polarisationsunempfindliche Faser Pigtailed Tap Photodiode PD zur Leistungsüberwachung mit Koppler und Splitter zum abgegriffenen Lichtsignal fotodiodo PD con presa a spirale in fibra insensibile alla polarizzazione per il monitoraggio della potenza con accoppiatore e sdoppiatore per segnale luminoso intercettato SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 000120S 000120M 000120US 000120UM 000105S 000105M 000105US 000105UM 00120S 00120M 00120US 00120UM 00105S 00105M 00105US 00105UM 0120S 0120M 0120US 0120UM 0105S 0105M 0105US 0105UM 0220S 0220M 0220US 0220UM 0205S 0205M 0205US 0205UM 0520S 0520M 0520US 0520UM 0505S 0505M 0505US 0505UM 1020S 1020M 1020US 1020UM 1005S 1005M 1005US 1005UM 2020S 2020M 2020US 2020UM 2005S 2005M 2005US 2005UM 3020S 3020M 3020US 3020UM 3005S 3005M 3005US 3005UM 4020S 4020M 4020US 4020UM 4005S 4005M 4005US 4005UM 5020S 5020M 5020US 5020UM 5005S 5005M 5005US 5005UM
TYPICAL SPECIFICATIONS
Center Wavelength 1480nm
Bandwidth +/-30nm
Tap Ratio 0.01%, 0.1%, 1%, 2%, 5%, 10%, 20%, 30%, 40% 50%
Excess Loss <=0.8dB
Responsivity@tapped power >=750mA/W
Return Loss >=40dB
Dark Current (Vr=5V, 70degree) <=2.5nA (Bandwidth=2G)
<=10nA (Bandwidth=0.5G)
Work Mode Standard: Backward Light may leak to PD
U Type: Isolate Backward Light to PD
Fiber Type SMF-28 Fiber or 10/130um DC Fiber
12/130um DC Fiber or 20/130um DC Fiber
25/250um DC Fiber or 25/300um DC Fiber
Max. Average Power on PD 10mW
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~70degreeC

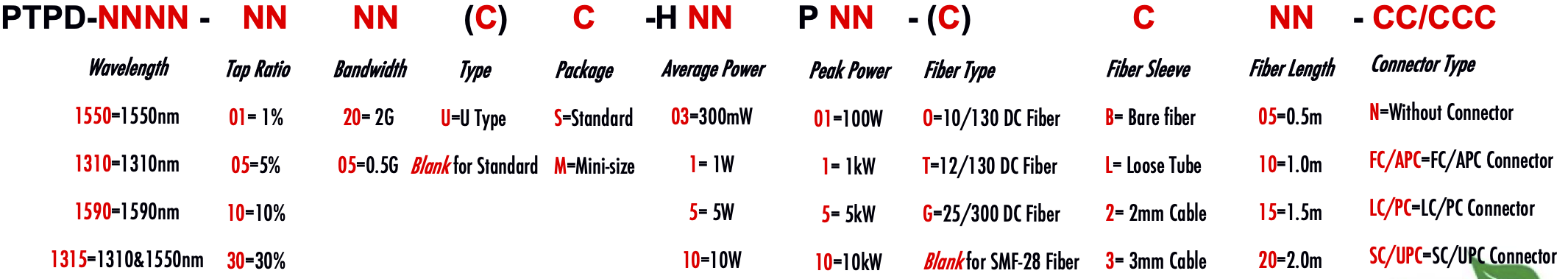

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
