1080nm Fiber Pigtailed PhotoDiode for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Fiber Pigtailed PhotoDiode is made by micro-optics package technology with fiber in. It features Wide Spectrum and High Responsivity. The Fiber Pigtailed PhotoDiode will convert the input light signals into electronic signals. The pulse power version is specially designed to withstand high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
PFPD 1080nm 1060nm 1100nm 1063nm 1064nm 1065nm 1070nm 1075nm 1080nm 1083nm 1085nm 1090nm 1092nm 1095nm polarization insensitive fiber pigtailed photodiode PD for power monitoring with light signal polarisationsunempfindliche Faser-Pigtail-Photodiode PD zur Leistungsüberwachung mit Lichtsignal Photodiode PD en queue de cochon à fibre insensible à la polarisation pour la surveillance de la puissance avec signal lumineux polarisaatioherkkä kuitu pigtailed -fotodiodi PD tehonvalvontaan valosignaalin avulla fotodiodo PD pigtail in fibra insensibile alla polarizzazione per il monitoraggio della potenza con segnale luminoso niewra?liwa na polaryzacj? fotodioda typu pigtailed PD do monitorowania mocy z sygna?em ?wietlnym fotodiodo de fibra insensível à polarização PD para monitoramento de energia com sinal de luz fotodiodo PD de fibra flexible insensible a la polarización para monitorización de potencia con señal luminosa HI1060 1060XP PM980 PM1060L PM980HP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 10mW 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP PFPD 1080nm 1060nm 1100nm 1063nm 1064nm 1065nm 1070nm 1075nm 1080nm 1083nm 1085nm 1090nm 1092nm 1095nm polarization insensitive fiber pigtailed photodiode PD for power monitoring with light signal polarisationsunempfindliche Faser-Pigtail-Photodiode PD zur Leistungsüberwachung mit Lichtsignal Photodiode PD en queue de cochon à fibre insensible à la polarisation pour la surveillance de la puissance avec signal lumineux polarisaatioherkkä kuitu pigtailed -fotodiodi PD tehonvalvontaan valosignaalin avulla fotodiodo PD pigtail in fibra insensibile alla polarizzazione per il monitoraggio della potenza con segnale luminoso niewra?liwa na polaryzacj? fotodioda typu pigtailed PD do monitorowania mocy z sygna?em ?wietlnym fotodiodo de fibra insensível à polarização PD para monitoramento de energia com sinal de luz fotodiodo PD de fibra flexible insensible a la polarización para monitorización de potencia con señal luminosa HI1060 1060XP PM980 PM1060L PM980HP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 10mW 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP PFPD 1080nm 1060nm 1100nm 1063nm 1064nm 1065nm 1070nm 1075nm 1080nm 1083nm 1085nm 1090nm 1092nm 1095nm polarization insensitive fiber pigtailed photodiode PD for power monitoring with light signal polarisationsunempfindliche Faser-Pigtail-Photodiode PD zur Leistungsüberwachung mit Lichtsignal Photodiode PD en queue de cochon à fibre insensible à la polarisation pour la surveillance de la puissance avec signal lumineux polarisaatioherkkä kuitu pigtailed -fotodiodi PD tehonvalvontaan valosignaalin avulla fotodiodo PD pigtail in fibra insensibile alla polarizzazione per il monitoraggio della potenza con segnale luminoso niewra?liwa na polaryzacj? fotodioda typu pigtailed PD do monitorowania mocy z sygna?em ?wietlnym fotodiodo de fibra insensível à polarização PD para monitoramento de energia com sinal de luz fotodiodo PD de fibra flexible insensible a la polarización para monitorización de potencia con señal luminosa HI1060 1060XP PM980 PM1060L PM980HP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 10mW 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 20SP 20MP 05SP 05MP
TYPICAL SPECIFICATIONS
Center Wavelength 1080nm
Bandwidth +/-15nm
Responsivity >=0.35A/W
Return Loss >=40dB
Dark Current (70degree, 5V Bias) <=10nA
SM Fiber Type HI1060 or 10/125um SC Fiber
10/125um DC Fiber or 15/130um DC Fiber
20/130um DC Fiber or 25/250um DC Fiber
PM Fiber Type PM980 Fiber, PM1060L Fiber or PM1060L-FA Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Average Optical Power on PD 10mW
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

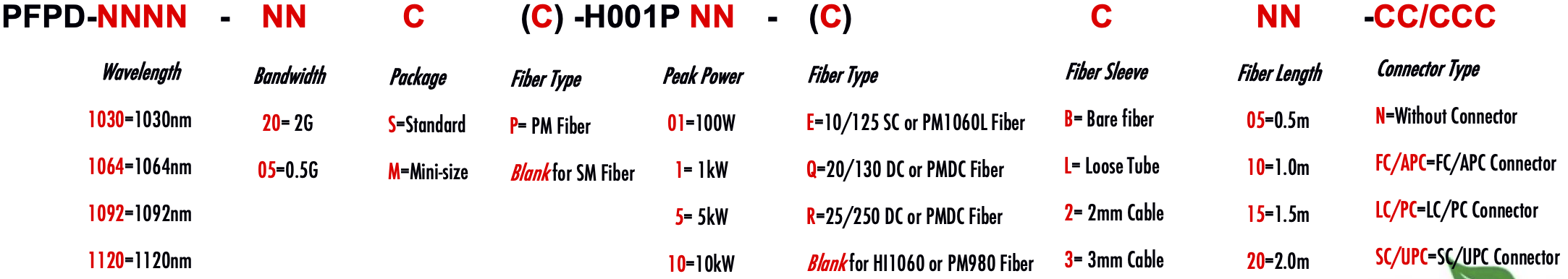

ORDERING INFORMATION/PART NUMBER(PN)
