650nm Fiber Pigtailed PhotoDiode

DESCRIPTION
Haphit provides fiber based passive components. The Fiber Pigtailed PhotoDiode is made by micro-optics package technology with fiber in. It features Wide Spectrum and High Responsivity. The Fiber Pigtailed PhotoDiode will convert the input light signals into electronic signals. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
PFPD 650nm 640nm 660nm 645nm 665nm polarization insensitive fiber pigtailed photodiode PD for power monitoring with light signal polarisationsunempfindliche Faser-Pigtail-Photodiode PD zur Leistungsüberwachung mit Lichtsignal Photodiode PD en queue de cochon à fibre insensible à la polarisation pour la surveillance de la puissance avec signal lumineux polarisaatioherkkä kuitu pigtailed -fotodiodi PD tehonvalvontaan valosignaalin avulla fotodiodo PD pigtail in fibra insensibile alla polarizzazione per il monitoraggio della potenza con segnale luminoso niewra?liwa na polaryzacj? fotodioda typu pigtailed PD do monitorowania mocy z sygna?em ?wietlnym fotodiodo de fibra insensível à polarização PD para monitoramento de energia com sinal de luz fotodiodo PD de fibra flexible insensible a la polarización para monitorización de potencia con señal luminosa 630HP 630XP S630HP PM630HP PM630XP 4/125um 3/125um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen PFPD 650nm 640nm 660nm 645nm 665nm polarization insensitive fiber pigtailed photodiode PD for power monitoring with light signal polarisationsunempfindliche Faser-Pigtail-Photodiode PD zur Leistungsüberwachung mit Lichtsignal Photodiode PD en queue de cochon à fibre insensible à la polarisation pour la surveillance de la puissance avec signal lumineux polarisaatioherkkä kuitu pigtailed -fotodiodi PD tehonvalvontaan valosignaalin avulla fotodiodo PD pigtail in fibra insensibile alla polarizzazione per il monitoraggio della potenza con segnale luminoso niewra?liwa na polaryzacj? fotodioda typu pigtailed PD do monitorowania mocy z sygna?em ?wietlnym fotodiodo de fibra insensível à polarização PD para monitoramento de energia com sinal de luz fotodiodo PD de fibra flexible insensible a la polarización para monitorización de potencia con señal luminosa 630HP 630XP S630HP PM630HP PM630XP 4/125um 3/125um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen PFPD 650nm 640nm 660nm 645nm 665nm polarization insensitive fiber pigtailed photodiode PD for power monitoring with light signal polarisationsunempfindliche Faser-Pigtail-Photodiode PD zur Leistungsüberwachung mit Lichtsignal Photodiode PD en queue de cochon à fibre insensible à la polarisation pour la surveillance de la puissance avec signal lumineux polarisaatioherkkä kuitu pigtailed -fotodiodi PD tehonvalvontaan valosignaalin avulla fotodiodo PD pigtail in fibra insensibile alla polarizzazione per il monitoraggio della potenza con segnale luminoso niewra?liwa na polaryzacj? fotodioda typu pigtailed PD do monitorowania mocy z sygna?em ?wietlnym fotodiodo de fibra insensível à polarização PD para monitoramento de energia com sinal de luz fotodiodo PD de fibra flexible insensible a la polarización para monitorización de potencia con señal luminosa 630HP 630XP S630HP PM630HP PM630XP 4/125um 3/125um SC Single Clad Cladding DC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen 20SP 20MP 05SP 05MP
TYPICAL SPECIFICATIONS
Center Wavelength 650nm
Bandwidth +/-10nm
Responsivity ~200mA/W
Return Loss >=40dB
Cutoff Frequency 0.4GHz
Dark Current (Vr=5V, 23degree) <=5nA
SM Fiber Type 630HP Fiber
PM Fiber Type PM630-HP Fiber
Max. Optical Power on PD (CW) 10mW
Operating Temperature 0~50degreeC

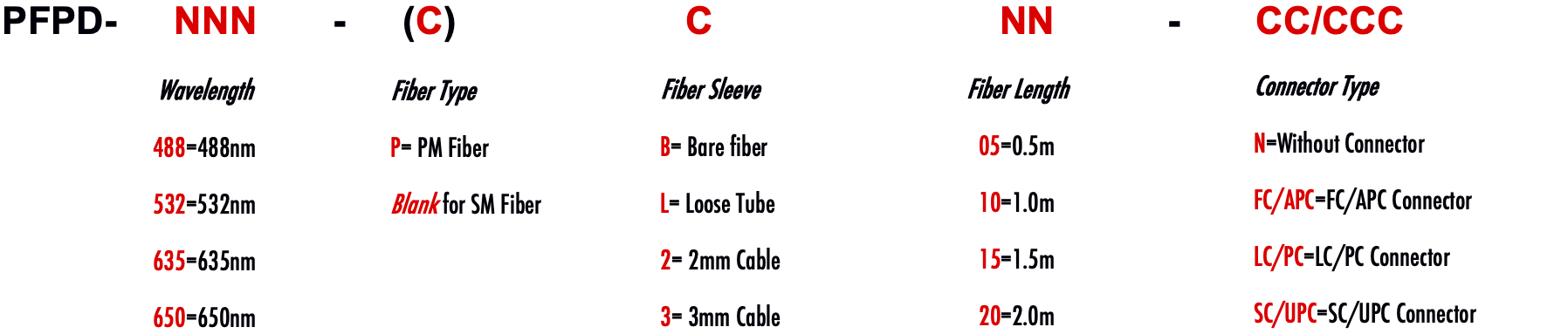

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
