1550nm Optical Manual VOA
DESCRIPTION
Haphit provides fiber based passive components. The Optical Manual VOA is made by micro-optics package technology with fiber in and fiber out. It features Wide & Flat Spectrum and Continuous Attenuation Value. The Optical Manual VOA will attenuate the input light signal at variable value by rotating the knob. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
PMVA 1550nm 1510nm 1515nm 1520nm 1525nm 1530nm 1535nm 1540nm 1545nm 1555nm 1560nm 1565nm 1570nm 1575nm 1580nm 1585nm 1590nmpolarization insensitive optical fiber inline manual adjustable variable attenuator VOA atenuador variável ajustável manual embutido de fibra óptica insensível à polarização attenuatore variabile regolabile in linea in fibra ottica insensibile alla polarizzazione polarisationsunempfindliches optisches Inline-Inline-Schaltgetriebe mit manueller Einstellung polarisaatioherkkä optinen kuitu inline manuaalisesti säädettävä muuttuva vaimennin Atténuateur variable réglable manuel en ligne de fibre optique insensible à la polarisation niewra?liwy na polaryzacj? ?wiat?owód wbudowany r?cznie regulowany zmienny t?umik tenuador variable ajustable manual en línea de fibra óptica insensible a la polarización SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type PMVA 1550nm 1510nm 1515nm 1520nm 1525nm 1530nm 1535nm 1540nm 1545nm 1555nm 1560nm 1565nm 1570nm 1575nm 1580nm 1585nm 1590nmpolarization insensitive optical fiber inline manual adjustable variable attenuator VOA atenuador variável ajustável manual embutido de fibra óptica insensível à polarização attenuatore variabile regolabile in linea in fibra ottica insensibile alla polarizzazione polarisationsunempfindliches optisches Inline-Inline-Schaltgetriebe mit manueller Einstellung polarisaatioherkkä optinen kuitu inline manuaalisesti säädettävä muuttuva vaimennin Atténuateur variable réglable manuel en ligne de fibre optique insensible à la polarisation niewra?liwy na polaryzacj? ?wiat?owód wbudowany r?cznie regulowany zmienny t?umik tenuador variable ajustable manual en línea de fibra óptica insensible a la polarización SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type PMVA 1550nm 1510nm 1515nm 1520nm 1525nm 1530nm 1535nm 1540nm 1545nm 1555nm 1560nm 1565nm 1570nm 1575nm 1580nm 1585nm 1590nmpolarization insensitive optical fiber inline manual adjustable variable attenuator VOA atenuador variável ajustável manual embutido de fibra óptica insensível à polarização attenuatore variabile regolabile in linea in fibra ottica insensibile alla polarizzazione polarisationsunempfindliches optisches Inline-Inline-Schaltgetriebe mit manueller Einstellung polarisaatioherkkä optinen kuitu inline manuaalisesti säädettävä muuttuva vaimennin Atténuateur variable réglable manuel en ligne de fibre optique insensible à la polarisation niewra?liwy na polaryzacj? ?wiat?owód wbudowany r?cznie regulowany zmienny t?umik tenuador variable ajustable manual en línea de fibra óptica insensible a la polarización SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type
TYPICAL SPECIFICATIONS
Center Wavelength
1550nm
Bandwidth
+/-20nm
Attenuation Range
0.6-30dB
Resolution (<10dB attenuation)
0.1dB
Return Loss
>=45dB
PDL (at lowest attenuation)
<=0.1dB
Fiber Type
SMF-28 Fiber or 10/130um DC Fiber
12/130um DC Fiber or 20/130um DC Fiber
25/250um DC Fiber or 25/300um DC Fiber
Max. Optical Power (CW)
300mW
Operating Temperature
0~70degreeC

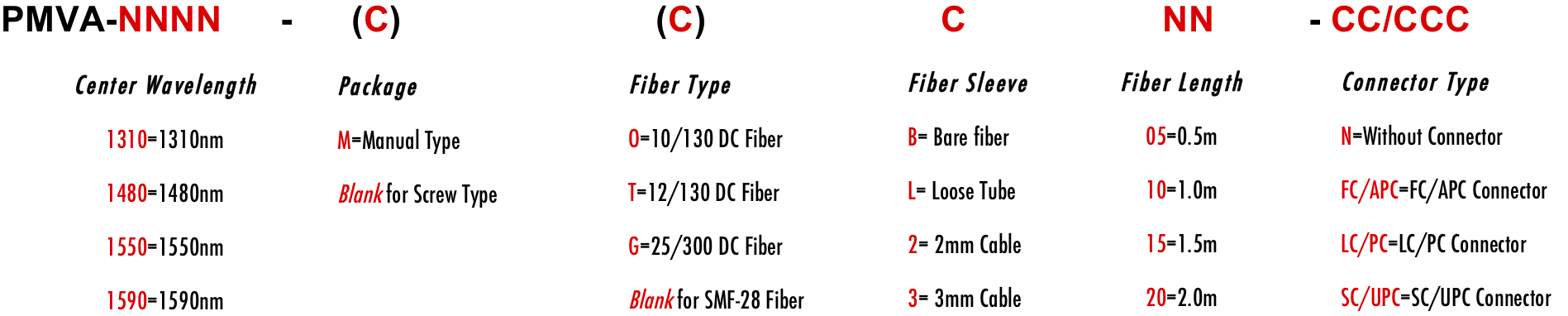

ORDERING INFORMATION/PART NUMBER(PN)
Standard specifications and
design parameters
Serial
Reference
Part Number (PN)*:
The change on PN will save a new product.
Product Description:
Comment/Other Information:
