1120nm MM Optical Manual VOA

DESCRIPTION
Haphit provides fiber based passive components. The Optical Manual VOA is made by micro-optics package technology with Multimode (MM) fiber in and MM fiber out. It features Wide & Flat Spectrum and Continuous Attenuation Value. The Optical Manual VOA will attenuate the input light signal at variable value by rotating the knob. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
PMAM 1120nm 1100nm 1140nm 1103nm 1105nm 1110nm 1115nm 1125nm 1130nm 1135nm polarization insensitive optical fiber inline manual adjustable variable attenuator VOA atenuador variável ajustável manual embutido de fibra óptica insensível à polarização attenuatore variabile regolabile in linea in fibra ottica insensibile alla polarizzazione polarisationsunempfindliches optisches Inline-Inline-Schaltgetriebe mit manueller Einstellung polarisaatioherkkä optinen kuitu inline manuaalisesti säädettävä muuttuva vaimennin Atténuateur variable réglable manuel en ligne de fibre optique insensible à la polarisation niewra?liwy na polaryzacj? ?wiat?owód wbudowany r?cznie regulowany zmienny t?umik tenuador variable ajustable manual en línea de fibra óptica insensible a la polarización Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type PMAM 1120nm 1100nm 1140nm 1103nm 1105nm 1110nm 1115nm 1125nm 1130nm 1135nm polarization insensitive optical fiber inline manual adjustable variable attenuator VOA atenuador variável ajustável manual embutido de fibra óptica insensível à polarização attenuatore variabile regolabile in linea in fibra ottica insensibile alla polarizzazione polarisationsunempfindliches optisches Inline-Inline-Schaltgetriebe mit manueller Einstellung polarisaatioherkkä optinen kuitu inline manuaalisesti säädettävä muuttuva vaimennin Atténuateur variable réglable manuel en ligne de fibre optique insensible à la polarisation niewra?liwy na polaryzacj? ?wiat?owód wbudowany r?cznie regulowany zmienny t?umik tenuador variable ajustable manual en línea de fibra óptica insensible a la polarización Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type PMAM 1120nm 1100nm 1140nm 1103nm 1105nm 1110nm 1115nm 1125nm 1130nm 1135nm polarization insensitive optical fiber inline manual adjustable variable attenuator VOA atenuador variável ajustável manual embutido de fibra óptica insensível à polarização attenuatore variabile regolabile in linea in fibra ottica insensibile alla polarizzazione polarisationsunempfindliches optisches Inline-Inline-Schaltgetriebe mit manueller Einstellung polarisaatioherkkä optinen kuitu inline manuaalisesti säädettävä muuttuva vaimennin Atténuateur variable réglable manuel en ligne de fibre optique insensible à la polarisation niewra?liwy na polaryzacj? ?wiat?owód wbudowany r?cznie regulowany zmienny t?umik tenuador variable ajustable manual en línea de fibra óptica insensible a la polarización Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type
TYPICAL SPECIFICATIONS
Center Wavelength 1120nm
Bandwidth +/-10nm
Attenuation Range 0.6-30dB
Resolution (<10dB attenuation) 0.3dB
Return Loss >=30dB
Fiber Type 50/125um GIMM Fiber(5) or 62.5/125um GIMM Fiber(6)
50/125um GIMM OM3 Fiber(3) or 106.5/125um NA=0.22(J)
105/125um NA=0.12(D), NA=0.15(B) or NA=0.22(A)
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

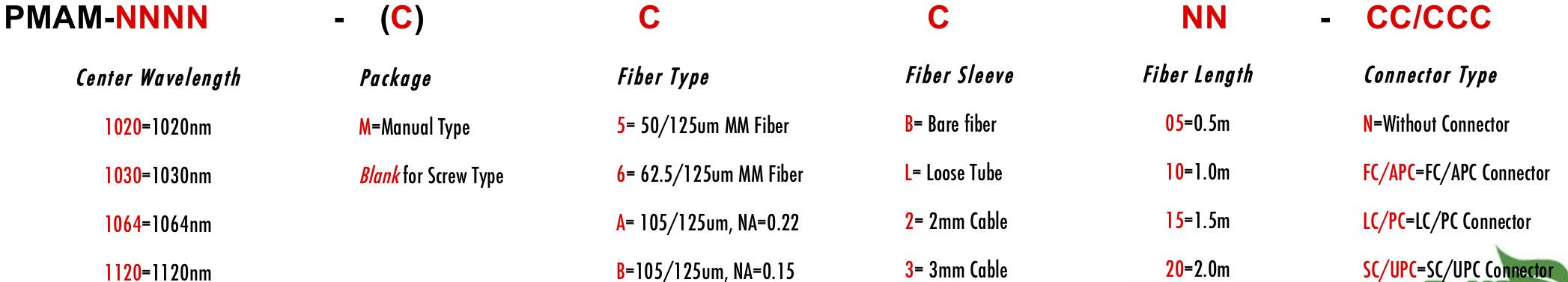

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
