1150nm Optical Manual VOA

DESCRIPTION
Haphit provides fiber based passive components. The Optical Manual VOA is made by micro-optics package technology with fiber in and fiber out. It features Wide & Flat Spectrum and Continuous Attenuation Value. The Optical Manual VOA will attenuate the input light signal at variable value by rotating the knob. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
PMVA 1150nm 1130nm 1200nm 1135nm 1140nm 1145nm 1155nm 1160nm 1165nm 1170nm 1175nm 1180nm 1185nm 1190nm 1195nm polarization insensitive optical fiber inline manual adjustable variable attenuator VOA atenuador variável ajustável manual embutido de fibra óptica insensível à polarização attenuatore variabile regolabile in linea in fibra ottica insensibile alla polarizzazione polarisationsunempfindliches optisches Inline-Inline-Schaltgetriebe mit manueller Einstellung polarisaatioherkkä optinen kuitu inline manuaalisesti säädettävä muuttuva vaimennin Atténuateur variable réglable manuel en ligne de fibre optique insensible à la polarisation niewra?liwy na polaryzacj? ?wiat?owód wbudowany r?cznie regulowany zmienny t?umik tenuador variable ajustable manual en línea de fibra óptica insensible a la polarización HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type PMVA 1150nm 1130nm 1200nm 1135nm 1140nm 1145nm 1155nm 1160nm 1165nm 1170nm 1175nm 1180nm 1185nm 1190nm 1195nm polarization insensitive optical fiber inline manual adjustable variable attenuator VOA atenuador variável ajustável manual embutido de fibra óptica insensível à polarização attenuatore variabile regolabile in linea in fibra ottica insensibile alla polarizzazione polarisationsunempfindliches optisches Inline-Inline-Schaltgetriebe mit manueller Einstellung polarisaatioherkkä optinen kuitu inline manuaalisesti säädettävä muuttuva vaimennin Atténuateur variable réglable manuel en ligne de fibre optique insensible à la polarisation niewra?liwy na polaryzacj? ?wiat?owód wbudowany r?cznie regulowany zmienny t?umik tenuador variable ajustable manual en línea de fibra óptica insensible a la polarización HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type PMVA 1150nm 1130nm 1200nm 1135nm 1140nm 1145nm 1155nm 1160nm 1165nm 1170nm 1175nm 1180nm 1185nm 1190nm 1195nm polarization insensitive optical fiber inline manual adjustable variable attenuator VOA atenuador variável ajustável manual embutido de fibra óptica insensível à polarização attenuatore variabile regolabile in linea in fibra ottica insensibile alla polarizzazione polarisationsunempfindliches optisches Inline-Inline-Schaltgetriebe mit manueller Einstellung polarisaatioherkkä optinen kuitu inline manuaalisesti säädettävä muuttuva vaimennin Atténuateur variable réglable manuel en ligne de fibre optique insensible à la polarisation niewra?liwy na polaryzacj? ?wiat?owód wbudowany r?cznie regulowany zmienny t?umik tenuador variable ajustable manual en línea de fibra óptica insensible a la polarización HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type
TYPICAL SPECIFICATIONS
Center Wavelength 1150nm
Bandwidth +/-10nm
Attenuation Range 0.6-30dB
Resolution (<10dB attenuation) 0.1dB
Return Loss >=45dB
PDL (at lowest attenuation) <=0.15dB
Fiber Type HI1060 or 10/125um SC Fiber
10/125um DC Fiber or 15/130um DC Fiber
20/130um DC Fiber or 25/250um DC Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

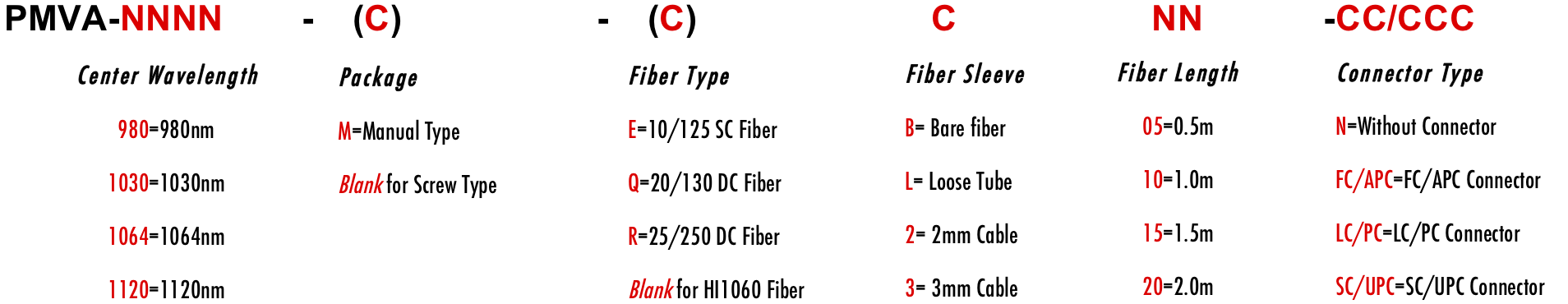

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
