780nm Optical Manual VOA

DESCRIPTION
Haphit provides fiber based passive components. The Optical Manual VOA is made by micro-optics package technology with fiber in and fiber out. It features Wide & Flat Spectrum and Continuous Attenuation Value. The Optical Manual VOA will attenuate the input light signal at variable value by rotating the knob. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
PMVA 780nm 760nm 800nm 765nm 766nm 770nm 775nm 785nm 790nm 793nm 795nm polarization insensitive optical fiber inline manual adjustable variable attenuator VOA atenuador variável ajustável manual embutido de fibra óptica insensível à polarização attenuatore variabile regolabile in linea in fibra ottica insensibile alla polarizzazione polarisationsunempfindliches optisches Inline-Inline-Schaltgetriebe mit manueller Einstellung polarisaatioherkkä optinen kuitu inline manuaalisesti säädettävä muuttuva vaimennin Atténuateur variable réglable manuel en ligne de fibre optique insensible à la polarisation niewra?liwy na polaryzacj? ?wiat?owód wbudowany r?cznie regulowany zmienny t?umik tenuador variable ajustable manual en línea de fibra óptica insensible a la polarización HI780 780HP 5/125um 4/125um SC Single Clad Cladding DC Double Clad 3-port Y Type PMVA 780nm 760nm 800nm 765nm 766nm 770nm 775nm 785nm 790nm 793nm 795nm polarization insensitive optical fiber inline manual adjustable variable attenuator VOA atenuador variável ajustável manual embutido de fibra óptica insensível à polarização attenuatore variabile regolabile in linea in fibra ottica insensibile alla polarizzazione polarisationsunempfindliches optisches Inline-Inline-Schaltgetriebe mit manueller Einstellung polarisaatioherkkä optinen kuitu inline manuaalisesti säädettävä muuttuva vaimennin Atténuateur variable réglable manuel en ligne de fibre optique insensible à la polarisation niewra?liwy na polaryzacj? ?wiat?owód wbudowany r?cznie regulowany zmienny t?umik tenuador variable ajustable manual en línea de fibra óptica insensible a la polarización HI780 780HP 5/125um 4/125um SC Single Clad Cladding DC Double Clad 3-port Y Type PMVA 780nm 760nm 800nm 765nm 766nm 770nm 775nm 785nm 790nm 793nm 795nm polarization insensitive optical fiber inline manual adjustable variable attenuator VOA atenuador variável ajustável manual embutido de fibra óptica insensível à polarização attenuatore variabile regolabile in linea in fibra ottica insensibile alla polarizzazione polarisationsunempfindliches optisches Inline-Inline-Schaltgetriebe mit manueller Einstellung polarisaatioherkkä optinen kuitu inline manuaalisesti säädettävä muuttuva vaimennin Atténuateur variable réglable manuel en ligne de fibre optique insensible à la polarisation niewra?liwy na polaryzacj? ?wiat?owód wbudowany r?cznie regulowany zmienny t?umik tenuador variable ajustable manual en línea de fibra óptica insensible a la polarización HI780 780HP 5/125um 4/125um SC Single Clad Cladding DC Double Clad 3-port Y Type
TYPICAL SPECIFICATIONS
Center Wavelength 780nm
Bandwidth +/-10nm
Attenuation Range 1.2-30dB
Resolution (<10dB attenuation) 0.3dB
Return Loss >=45dB
PDL (at lowest attenuation) <=0.2dB
Fiber Type HI780 Fiber or 780-HP Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

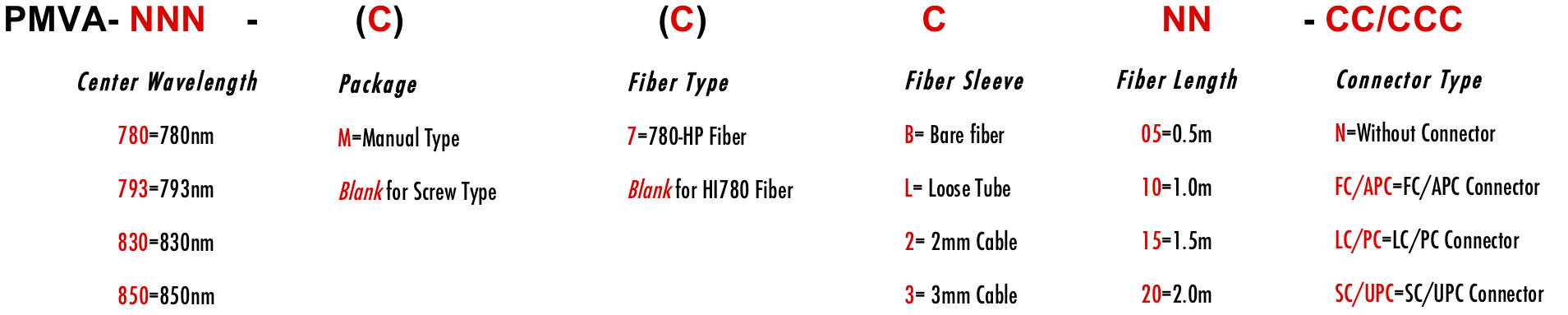

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
