635nm Optical Manual VOA

DESCRIPTION
Haphit provides fiber based passive components. The Optical Manual VOA is made by micro-optics package technology with fiber in and fiber out. It features Wide & Flat Spectrum and Continuous Attenuation Value. The Optical Manual VOA will attenuate the input light signal at variable value by rotating the knob. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
PMVA 635nm 600nm 650nm 605nm 610nm 615nm 620nm 625nm 630nm 640nm 645nm polarization insensitive optical fiber inline manual adjustable variable attenuator VOA atenuador variável ajustável manual embutido de fibra óptica insensível à polarização attenuatore variabile regolabile in linea in fibra ottica insensibile alla polarizzazione polarisationsunempfindliches optisches Inline-Inline-Schaltgetriebe mit manueller Einstellung polarisaatioherkkä optinen kuitu inline manuaalisesti säädettävä muuttuva vaimennin Atténuateur variable réglable manuel en ligne de fibre optique insensible à la polarisation niewra?liwy na polaryzacj? ?wiat?owód wbudowany r?cznie regulowany zmienny t?umik tenuador variable ajustable manual en línea de fibra óptica insensible a la polarización 630HP 630XP S630HP 4/125um 3/125um SC Single Clad Cladding DC Double Clad 3-port Y Type PMVA 635nm 600nm 650nm 605nm 610nm 615nm 620nm 625nm 630nm 640nm 645nm polarization insensitive optical fiber inline manual adjustable variable attenuator VOA atenuador variável ajustável manual embutido de fibra óptica insensível à polarização attenuatore variabile regolabile in linea in fibra ottica insensibile alla polarizzazione polarisationsunempfindliches optisches Inline-Inline-Schaltgetriebe mit manueller Einstellung polarisaatioherkkä optinen kuitu inline manuaalisesti säädettävä muuttuva vaimennin Atténuateur variable réglable manuel en ligne de fibre optique insensible à la polarisation niewra?liwy na polaryzacj? ?wiat?owód wbudowany r?cznie regulowany zmienny t?umik tenuador variable ajustable manual en línea de fibra óptica insensible a la polarización 630HP 630XP S630HP 4/125um 3/125um SC Single Clad Cladding DC Double Clad 3-port Y Type PMVA 635nm 600nm 650nm 605nm 610nm 615nm 620nm 625nm 630nm 640nm 645nm polarization insensitive optical fiber inline manual adjustable variable attenuator VOA atenuador variável ajustável manual embutido de fibra óptica insensível à polarização attenuatore variabile regolabile in linea in fibra ottica insensibile alla polarizzazione polarisationsunempfindliches optisches Inline-Inline-Schaltgetriebe mit manueller Einstellung polarisaatioherkkä optinen kuitu inline manuaalisesti säädettävä muuttuva vaimennin Atténuateur variable réglable manuel en ligne de fibre optique insensible à la polarisation niewra?liwy na polaryzacj? ?wiat?owód wbudowany r?cznie regulowany zmienny t?umik tenuador variable ajustable manual en línea de fibra óptica insensible a la polarización 630HP 630XP S630HP 4/125um 3/125um SC Single Clad Cladding DC Double Clad 3-port Y Type
TYPICAL SPECIFICATIONS
Center Wavelength 635nm
Bandwidth +/-10nm
Attenuation Range 1.5-30dB
Resolution (<10dB attenuation) 0.3dB
Return Loss >=40dB
PDL (at lowest attenuation) <=0.3dB
Fiber Type 630HP Fiber
Max. Optical Power (CW) 100mW
Operating Temperature 0~50degreeC

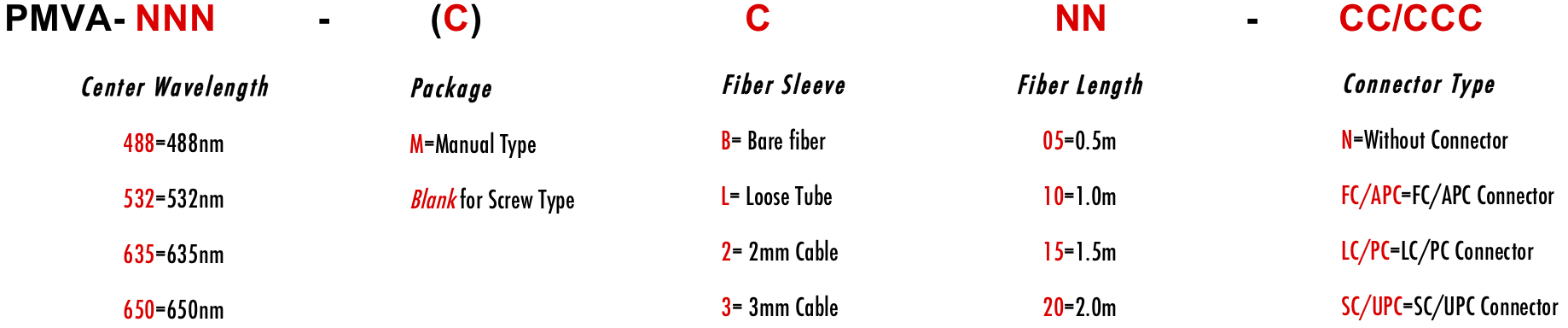

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
