1030nm High Power PM Inline Fixed Attenuator

DESCRIPTION
Haphit provides fiber based passive components. The Inline Fixed Attenuator is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features various and precise attenuation value. The Inline Fixed Attenuator will attenuate the input signal at a certain ratio. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
PIAP 1030nm 1010nm 1050nm 1015nm 1020nm 1015nm 1035nm 1036nm 1040nm 1045nm polarization insensitive optical fiber inline fixed attenuator atenuador fijo en línea de fibra óptica insensible a la polarización sta?y t?umik ?wiat?owodowy niewra?liwy na polaryzacj? polarisaatioherkkä optinen kuitu kiinteä vaimennin atténuateur fixe en ligne à fibre optique insensible à la polarisation polarisationsunempfindlicher Inline-Festdämpfer für optische Fasern ttenuatore fisso in linea in fibra ottica insensibile alla polarizzazione atenuador fixo em linha de fibra óptica insensível à polarização 1x2 2x2 PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen High Power 1W 2W 3W 5W 10W Watt Watts HP CW Continuous Wave PIAP 1030nm 1010nm 1050nm 1015nm 1020nm 1015nm 1035nm 1036nm 1040nm 1045nm polarization insensitive optical fiber inline fixed attenuator atenuador fijo en línea de fibra óptica insensible a la polarización sta?y t?umik ?wiat?owodowy niewra?liwy na polaryzacj? polarisaatioherkkä optinen kuitu kiinteä vaimennin atténuateur fixe en ligne à fibre optique insensible à la polarisation polarisationsunempfindlicher Inline-Festdämpfer für optische Fasern ttenuatore fisso in linea in fibra ottica insensibile alla polarizzazione atenuador fixo em linha de fibra óptica insensível à polarização 1x2 2x2 PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen High Power 1W 2W 3W 5W 10W Watt Watts HP CW Continuous Wave PIAP 1030nm 1010nm 1050nm 1015nm 1020nm 1015nm 1035nm 1036nm 1040nm 1045nm polarization insensitive optical fiber inline fixed attenuator atenuador fijo en línea de fibra óptica insensible a la polarización sta?y t?umik ?wiat?owodowy niewra?liwy na polaryzacj? polarisaatioherkkä optinen kuitu kiinteä vaimennin atténuateur fixe en ligne à fibre optique insensible à la polarisation polarisationsunempfindlicher Inline-Festdämpfer für optische Fasern ttenuatore fisso in linea in fibra ottica insensibile alla polarizzazione atenuador fixo em linha de fibra óptica insensível à polarização 1x2 2x2 PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen High Power 1W 2W 3W 5W 10W Watt Watts HP CW Continuous Wave 01Y 02Y 03Y 04Y 05Y 06Y 07Y 08Y 09Y 10Y 11Y 12Y 13Y 14Y 15Y 16Y 17Y 18Y 19Y 20Y 21Y 22Y 23Y 24Y 25Y 26Y 27Y 28Y 29Y 30Y
TYPICAL SPECIFICATIONS
Center Wavelength 1030nm
Bandwidth +/-10nm
Attenuation Range 0-30dB
Standard Attenuation Value 3dB, 5dB, 10dB, 15dB, 20dB
Attenuation Tolerance +/-0.5dB (<5dB)
+/-10%(>=5dB)
Return Loss >=45dB
Configuration D Type: 2-port
Y Type: 3-port, attenuated power guide out
Extinction Ratio >=18dB
Fiber Type PM980 Fiber or PM1060L Fiber
10/125um PMDC Fiber
Max. Thru Optical Power (CW) 1W, 2W, 3W, 5W, 10W
Max. Attenuated Optical Power (CW) 2W
Operating Temperature 0~50degreeC

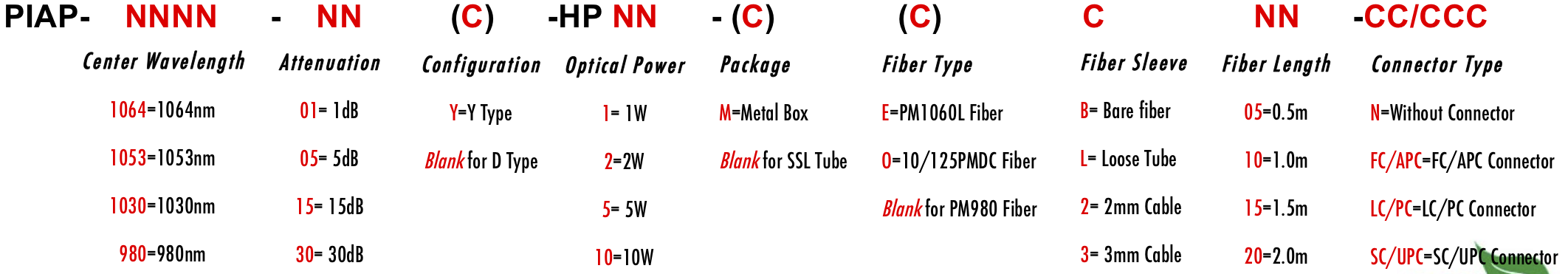

ORDERING INFORMATION/PART NUMBER(PN)
