850nm Fixed Attenuator

DESCRIPTION
Haphit provides fiber based passive components. The Fixed Attenuator is made by micro-optics package technology with MM fiber in and MM fiber out. It features various and precise attenuation value. The Fixed Attenuator will attenuate the input signal at a certain ratio. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
PFAT 850nm 830nm 870nm 835nm 840nm 845nm 855nm 860nm 865nm polarization insensitive optical fiber Fixed Attenuator atenuador fijo en línea de fibra óptica insensible a la polarización sta?y t?umik ?wiat?owodowy niewra?liwy na polaryzacj? polarisaatioherkkä optinen kuitu kiinteä vaimennin atténuateur fixe en ligne à fibre optique insensible à la polarisation polarisationsunempfindlicher Inline-Festdämpfer für optische Fasern ttenuatore fisso in linea in fibra ottica insensibile alla polarizzazione atenuador fixo em linha de fibra óptica insensível à polarização 1x1 Graded Index Step GIMM SIMM 50/125um 62.5/125um SC Single Clad Cladding PFAT 850nm 830nm 870nm 835nm 840nm 845nm 855nm 860nm 865nm polarization insensitive optical fiber Fixed Attenuator atenuador fijo en línea de fibra óptica insensible a la polarización sta?y t?umik ?wiat?owodowy niewra?liwy na polaryzacj? polarisaatioherkkä optinen kuitu kiinteä vaimennin atténuateur fixe en ligne à fibre optique insensible à la polarisation polarisationsunempfindlicher Inline-Festdämpfer für optische Fasern ttenuatore fisso in linea in fibra ottica insensibile alla polarizzazione atenuador fixo em linha de fibra óptica insensível à polarização 1x1 Graded Index Step GIMM SIMM 50/125um 62.5/125um SC Single Clad Cladding PFAT 850nm 830nm 870nm 835nm 840nm 845nm 855nm 860nm 865nm polarization insensitive optical fiber Fixed Attenuator atenuador fijo en línea de fibra óptica insensible a la polarización sta?y t?umik ?wiat?owodowy niewra?liwy na polaryzacj? polarisaatioherkkä optinen kuitu kiinteä vaimennin atténuateur fixe en ligne à fibre optique insensible à la polarisation polarisationsunempfindlicher Inline-Festdämpfer für optische Fasern ttenuatore fisso in linea in fibra ottica insensibile alla polarizzazione atenuador fixo em linha de fibra óptica insensível à polarização 1x1 Graded Index Step GIMM SIMM 50/125um 62.5/125um SC Single Clad Cladding 5A01 5A02 5A03 5A04 5A05 5A06 5A07 5A08 5A09 5A10 5A11 5A12 5A13 5A14 5A15 5A16 5A17 5A18 5A19 5A20 5A21 5A22 5A23 5A24 5A25 5A26 5A27 5A28 5A29 5A30Y 6A01 6A02 6A03 6A04 6A05 6A06 6A07 6A08 6A09 6A10 6A11 6A12 6A13 6A14 6A15 6A16 6A17 6A18 6A19 6A20 6A21 6A22 6A23 6A24 6A25 6A26 6A27 6A28 6A29 6A30Y
TYPICAL SPECIFICATIONS
Center Wavelength 850nm
Bandwidth +/-20nm
Attenuation Range 0-30dB
Standard Attenuation Value 1dB, 3dB, 5dB, 10dB, 15dB, 20dB
Attenuation Tolerance +/-0.5dB (<5dB)
+/-10%(>=5dB)
Return Loss >=20dB (PC Polish)
>=25dB (UPC Polish)
>=30dB (APC Polish)
Fiber Type 50/125um GIMM Fiber(5) or 62.5/125um GIMM Fiber(6)
Max. Optical Power (CW) 300mW
Operating Temperature -40~85degreeC

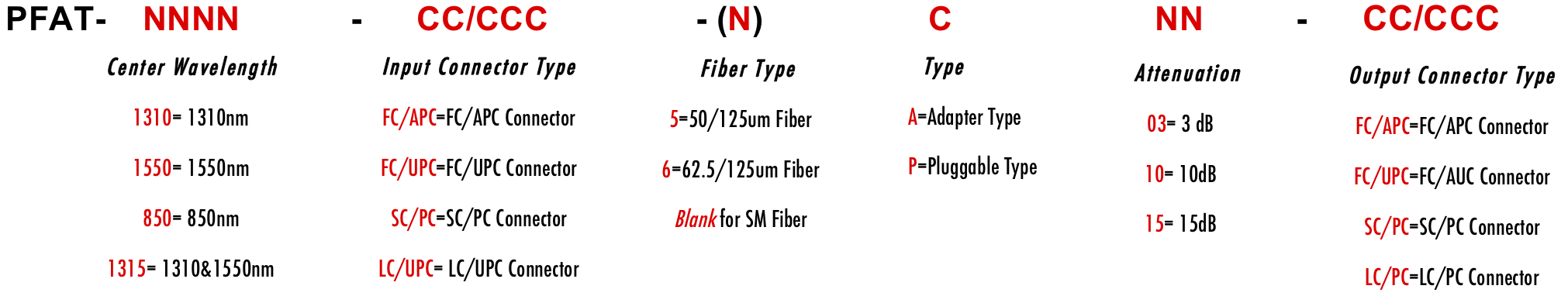

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
