	850nm Inline Fixed Attenuator for Pulse Power

DESCRIPTION

Haphit provides fiber based passive components. The Inline Fixed Attenuator is made by micro-optics package technology with fiber in and fiber out. It features various and precise attenuation value. The Inline Fixed Attenuator will attenuate the input signal at a certain ratio. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.

PIAT 850nm 830nm 870nm 835nm 840nm 845nm 855nm 860nm 865nm polarization insensitive optical fiber inline fixed attenuator atenuador fijo en línea de fibra óptica insensible a la polarización sta?y t?umik ?wiat?owodowy niewra?liwy na polaryzacj? polarisaatioherkkä optinen kuitu kiinteä vaimennin atténuateur fixe en ligne à fibre optique insensible à la polarisation polarisationsunempfindlicher Inline-Festdämpfer für optische Fasern ttenuatore fisso in linea in fibra ottica insensibile alla polarizzazione atenuador fixo em linha de fibra óptica insensível à polarização 1x2 2x2 HI780 780HP 5/125um 4/125um SC Single Clad Cladding DC Double Clad 3-port Y Type for Pulse Power 1W 2W 3W 5W 10W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP PIAT 850nm 830nm 870nm 835nm 840nm 845nm 855nm 860nm 865nm polarization insensitive optical fiber inline fixed attenuator atenuador fijo en línea de fibra óptica insensible a la polarización sta?y t?umik ?wiat?owodowy niewra?liwy na polaryzacj? polarisaatioherkkä optinen kuitu kiinteä vaimennin atténuateur fixe en ligne à fibre optique insensible à la polarisation polarisationsunempfindlicher Inline-Festdämpfer für optische Fasern ttenuatore fisso in linea in fibra ottica insensibile alla polarizzazione atenuador fixo em linha de fibra óptica insensível à polarização 1x2 2x2 HI780 780HP 5/125um 4/125um SC Single Clad Cladding DC Double Clad 3-port Y Type for Pulse Power 1W 2W 3W 5W 10W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP PIAT 850nm 830nm 870nm 835nm 840nm 845nm 855nm 860nm 865nm polarization insensitive optical fiber inline fixed attenuator atenuador fijo en línea de fibra óptica insensible a la polarización sta?y t?umik ?wiat?owodowy niewra?liwy na polaryzacj? polarisaatioherkkä optinen kuitu kiinteä vaimennin atténuateur fixe en ligne à fibre optique insensible à la polarisation polarisationsunempfindlicher Inline-Festdämpfer für optische Fasern ttenuatore fisso in linea in fibra ottica insensibile alla polarizzazione atenuador fixo em linha de fibra óptica insensível à polarização 1x2 2x2 HI780 780HP 5/125um 4/125um SC Single Clad Cladding DC Double Clad 3-port Y Type for Pulse Power 1W 2W 3W 5W 10W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 01Y 02Y 03Y 04Y 05Y 06Y 07Y 08Y 09Y 10Y 11Y 12Y 13Y 14Y 15Y 16Y 17Y 18Y 19Y 20Y 21Y 22Y 23Y 24Y 25Y 26Y 27Y 28Y 29Y 30Y

TYPICAL SPECIFICATIONS

Center Wavelength	850nm
Bandwidth	+/-10nm
Attenuation Range	0-30dB
Standard Attenuation Value	3dB, 5dB, 10dB, 15dB, 20dB
Attenuation Tolerance	+/-0.5dB (<5dB) +/-10%(>=5dB)
Return Loss	>=45dB
Configuration	D Type: 2-port Y Type: 3-port, attenuated power guide out
Fiber Type	HI780 Fiber or 780-HP Fiber
Max. Thru Average Power	300mW, 500mW, 1W, 2W, 3W, 5W, 10W
Max. Peak Power for Pulse	100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Max. Attenuated Average Power	2W
Operating Temperature	0~50degreeC

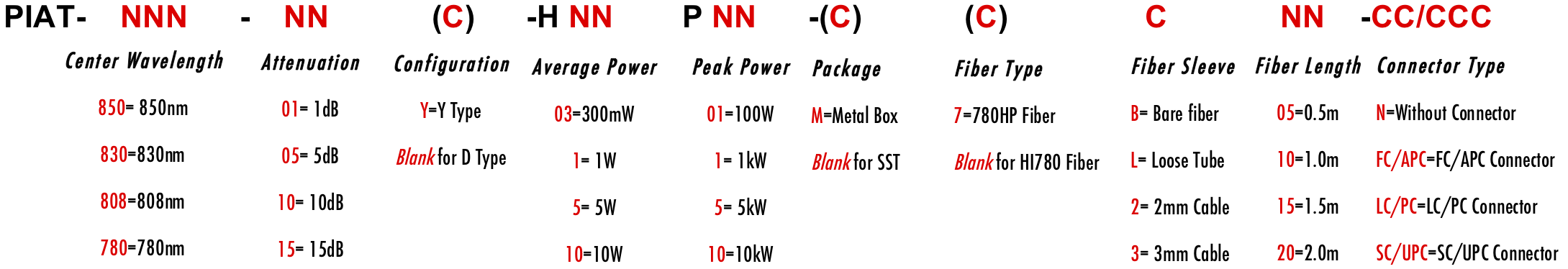

ORDERING INFORMATION/PART NUMBER(PN)

Standard specifications and
design parameters

Serial	Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:

Comment/Other Information:
