1480nm MM 1X1/1X2 Opto-Mechanical Switch

DESCRIPTION
Haphit provides fiber based passive components. The 1X1/1X2 Opto-Mechanical Switch is made by micro-optics package technology with Multimode (MM) fiber in or MM fiber out. It features Wide & Flat Spectrum and Various Working Distance. The 1X1/1X2 Opto-Mechanical Switch will switch the input light signal between 2 different outputs. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FMMS 1480nm 1410nm 1530nm 1415nm 1420nm 1425nm 1430nm 1435nm 1440nm 1445nm 1450nm 1455nm 1460nm 1465nm 1470nm 1475nm 1485nm 1490nm 1495nm 1500nm 1505nm 1510nm 1515nm 1520nm 1525nm polarization insensitive optical mechanical 1X2 switch with fiber in and out Commutateur 1X2 optique mécanique insensible à la polarisation avec entrée et sortie fibre polarisationsunempfindlicher optisch-mechanischer 1X2-Schalter mit Glasfaser-Eingang und -Ausgang interruttore ottico meccanico 1X2 insensibile alla polarizzazione con fibra in entrata e in uscita polarisaatioherkkä optinen mekaaninen 1X2-kytkin kuidun sisään ja ulos niewra?liwy na polaryzacj? optyczny mechaniczny prze??cznik 1X2 z wej?ciem i wyj?ciem ?wiat?owodu Interruptor 1X2 mecánico óptico insensible a la polarización con entrada y salida de fibra interruptor 1X2 óptico-mecânico insensível à polarização com entrada e saída de fibra Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type FMMS 1480nm 1410nm 1530nm 1415nm 1420nm 1425nm 1430nm 1435nm 1440nm 1445nm 1450nm 1455nm 1460nm 1465nm 1470nm 1475nm 1485nm 1490nm 1495nm 1500nm 1505nm 1510nm 1515nm 1520nm 1525nm polarization insensitive optical mechanical 1X2 switch with fiber in and out Commutateur 1X2 optique mécanique insensible à la polarisation avec entrée et sortie fibre polarisationsunempfindlicher optisch-mechanischer 1X2-Schalter mit Glasfaser-Eingang und -Ausgang interruttore ottico meccanico 1X2 insensibile alla polarizzazione con fibra in entrata e in uscita polarisaatioherkkä optinen mekaaninen 1X2-kytkin kuidun sisään ja ulos niewra?liwy na polaryzacj? optyczny mechaniczny prze??cznik 1X2 z wej?ciem i wyj?ciem ?wiat?owodu Interruptor 1X2 mecánico óptico insensible a la polarización con entrada y salida de fibra interruptor 1X2 óptico-mecânico insensível à polarização com entrada e saída de fibra Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type FMMS 1480nm 1410nm 1530nm 1415nm 1420nm 1425nm 1430nm 1435nm 1440nm 1445nm 1450nm 1455nm 1460nm 1465nm 1470nm 1475nm 1485nm 1490nm 1495nm 1500nm 1505nm 1510nm 1515nm 1520nm 1525nm polarization insensitive optical mechanical 1X2 switch with fiber in and out Commutateur 1X2 optique mécanique insensible à la polarisation avec entrée et sortie fibre polarisationsunempfindlicher optisch-mechanischer 1X2-Schalter mit Glasfaser-Eingang und -Ausgang interruttore ottico meccanico 1X2 insensibile alla polarizzazione con fibra in entrata e in uscita polarisaatioherkkä optinen mekaaninen 1X2-kytkin kuidun sisään ja ulos niewra?liwy na polaryzacj? optyczny mechaniczny prze??cznik 1X2 z wej?ciem i wyj?ciem ?wiat?owodu Interruptor 1X2 mecánico óptico insensible a la polarización con entrada y salida de fibra interruptor 1X2 óptico-mecânico insensível à polarização com entrada e saída de fibra Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type 11L3 11L5 11N3 11N5 12L3 12L5 12N3 12N5
TYPICAL SPECIFICATIONS
Center Wavelength 1480nm
Bandwidth +/-30nm
Insertion Loss <=1.0dB
Wavelength Dependent Loss <=0.25dB
Return Loss >=30dB
Cross Talk >=35dB
Switch Speed <=10ms
Operating Voltage 3V or 5V
Fiber Type 50/125um GIMM Fiber(5) or 62.5/125um GIMM Fiber(6)
50/125um GIMM OM3 Fiber(3)
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

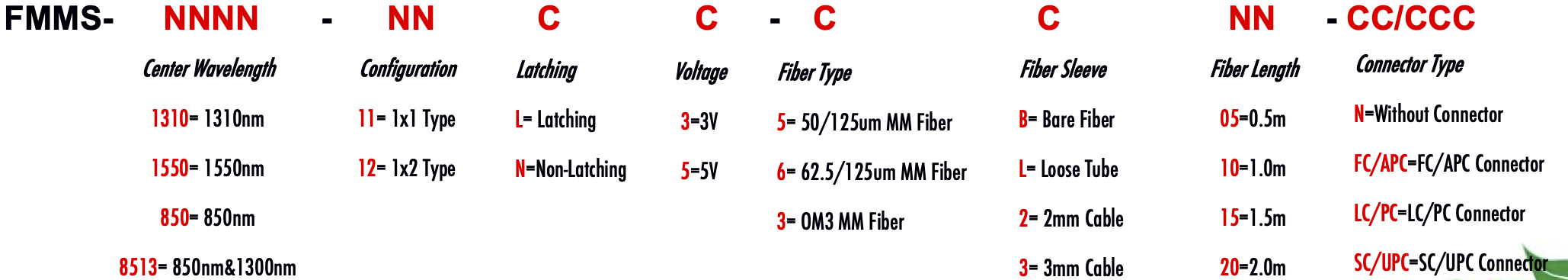

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
