1310nm & 1550nm 1X1/1X2 Opto-Mechanical Switch

DESCRIPTION
Haphit provides fiber based passive components. The 1X1/1X2 Opto-Mechanical Switch is made by micro-optics package technology with fiber in or fiber out. It features Wide & Flat Spectrum and Various Configuration. The 1X1/1X2 Opto-Mechanical Switch will switch the input light signal between 2 different outputs. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FOMS 1550nm 1510nm 1515nm 1520nm 1525nm 1530nm 1535nm 1540nm 1545nm 1590nm 1630nm 1555nm 1560nm 1565nm 1570nm 1575nm 1580nm 1585nm 1310nm 1270nm 1275nm 1280nm 1285nm 1290nm 1295nm 1300nm 1305nm 1315nm 1320nm 1325nm 1330nm 1335nm 1340nm 1345nm polarization insensitive optical mechanical 1X2 switch with fiber in and out Commutateur 1X2 optique mécanique insensible à la polarisation avec entrée et sortie fibre polarisationsunempfindlicher optisch-mechanischer 1X2-Schalter mit Glasfaser-Eingang und -Ausgang interruttore ottico meccanico 1X2 insensibile alla polarizzazione con fibra in entrata e in uscita polarisaatioherkkä optinen mekaaninen 1X2-kytkin kuidun sisään ja ulos niewra?liwy na polaryzacj? optyczny mechaniczny prze??cznik 1X2 z wej?ciem i wyj?ciem ?wiat?owodu Interruptor 1X2 mecánico óptico insensible a la polarización con entrada y salida de fibra interruptor 1X2 óptico-mecânico insensível à polarização com entrada e saída de fibra SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type FOMS 1550nm 1510nm 1515nm 1520nm 1525nm 1530nm 1535nm 1540nm 1545nm 1590nm 1630nm 1555nm 1560nm 1565nm 1570nm 1575nm 1580nm 1585nm 1310nm 1270nm 1275nm 1280nm 1285nm 1290nm 1295nm 1300nm 1305nm 1315nm 1320nm 1325nm 1330nm 1335nm 1340nm 1345nm polarization insensitive optical mechanical 1X2 switch with fiber in and out Commutateur 1X2 optique mécanique insensible à la polarisation avec entrée et sortie fibre polarisationsunempfindlicher optisch-mechanischer 1X2-Schalter mit Glasfaser-Eingang und -Ausgang interruttore ottico meccanico 1X2 insensibile alla polarizzazione con fibra in entrata e in uscita polarisaatioherkkä optinen mekaaninen 1X2-kytkin kuidun sisään ja ulos niewra?liwy na polaryzacj? optyczny mechaniczny prze??cznik 1X2 z wej?ciem i wyj?ciem ?wiat?owodu Interruptor 1X2 mecánico óptico insensible a la polarización con entrada y salida de fibra interruptor 1X2 óptico-mecânico insensível à polarização com entrada e saída de fibra SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type FOMS 1550nm 1510nm 1515nm 1520nm 1525nm 1530nm 1535nm 1540nm 1545nm 1590nm 1630nm 1555nm 1560nm 1565nm 1570nm 1575nm 1580nm 1585nm 1310nm 1270nm 1275nm 1280nm 1285nm 1290nm 1295nm 1300nm 1305nm 1315nm 1320nm 1325nm 1330nm 1335nm 1340nm 1345nm polarization insensitive optical mechanical 1X2 switch with fiber in and out Commutateur 1X2 optique mécanique insensible à la polarisation avec entrée et sortie fibre polarisationsunempfindlicher optisch-mechanischer 1X2-Schalter mit Glasfaser-Eingang und -Ausgang interruttore ottico meccanico 1X2 insensibile alla polarizzazione con fibra in entrata e in uscita polarisaatioherkkä optinen mekaaninen 1X2-kytkin kuidun sisään ja ulos niewra?liwy na polaryzacj? optyczny mechaniczny prze??cznik 1X2 z wej?ciem i wyj?ciem ?wiat?owodu Interruptor 1X2 mecánico óptico insensible a la polarización con entrada y salida de fibra interruptor 1X2 óptico-mecânico insensível à polarização com entrada e saída de fibra SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 1315 11L3 11L5 11N3 11N5 12L3 12L5 12N3 12N5
TYPICAL SPECIFICATIONS
Center Wavelength 1310nm & 1550nm
Bandwidth +/-30nm
Insertion Loss <=1.0dB
Wavelength Dependent Loss <=0.3dB
Return Loss >=50dB
PDL <=0.1dB
Cross Talk >=55dB
Switch Speed <=10ms
Operating Voltage 3V or 5V
Fiber Type SMF-28 Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~70degreeC

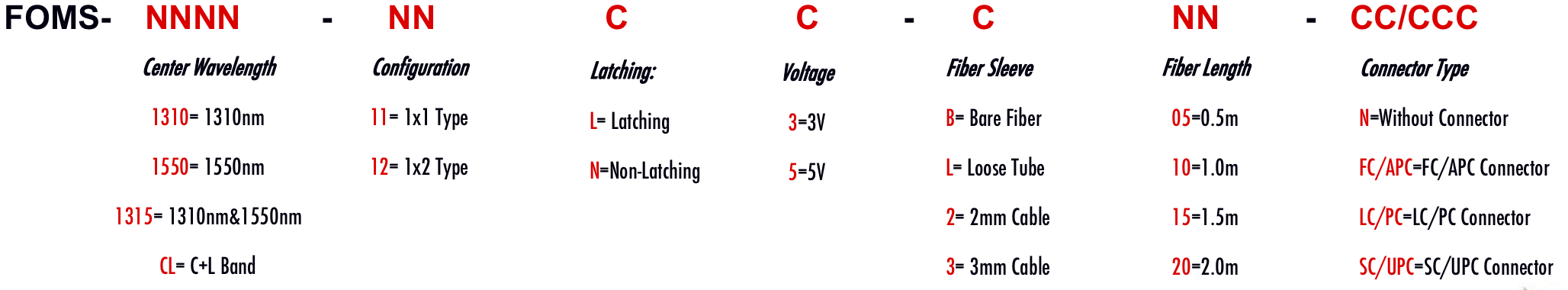

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
