C+L Band 2X2 Opto-Mechanical Switch

DESCRIPTION
Haphit provides fiber based passive components. The 2X2 Opto-Mechanical Switch is made by micro-optics package technology with fiber in or fiber out. It features Wide & Flat Spectrum and Various Configuration. The 2X2 Opto-Mechanical Switch will switch the input light signal between 2 different outputs. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FOMS 1550nm 1510nm 1515nm 1520nm 1525nm 1530nm 1535nm 1540nm 1545nm 1590nm 1630nm 1555nm 1560nm 1565nm 1570nm 1575nm 1580nm 1585nm 1595nm 1600nm 1605nm 1610nm 1615nm 1620nm 1625nm polarization insensitive optical mechanical 2X2 switch with fiber in and out Commutateur 2X2 optique mécanique insensible à la polarisation avec entrée et sortie fibre polarisationsunempfindlicher optisch-mechanischer 2X2-Schalter mit Glasfaser-Eingang und -Ausgang interruttore ottico meccanico 2X2 insensibile alla polarizzazione con fibra in entrata e in uscita polarisaatioherkkä optinen mekaaninen 2X2-kytkin kuidun sisään ja ulos niewra?liwy na polaryzacj? optyczny mechaniczny prze??cznik 2X2 z wej?ciem i wyj?ciem ?wiat?owodu Interruptor 2X2 mecánico óptico insensible a la polarización con entrada y salida de fibra interruptor 2X2 óptico-mecânico insensível à polarização com entrada e saída de fibra SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type FOMS 1550nm 1510nm 1515nm 1520nm 1525nm 1530nm 1535nm 1540nm 1545nm 1590nm 1630nm 1555nm 1560nm 1565nm 1570nm 1575nm 1580nm 1585nm 1595nm 1600nm 1605nm 1610nm 1615nm 1620nm 1625nm polarization insensitive optical mechanical 2X2 switch with fiber in and out Commutateur 2X2 optique mécanique insensible à la polarisation avec entrée et sortie fibre polarisationsunempfindlicher optisch-mechanischer 2X2-Schalter mit Glasfaser-Eingang und -Ausgang interruttore ottico meccanico 2X2 insensibile alla polarizzazione con fibra in entrata e in uscita polarisaatioherkkä optinen mekaaninen 2X2-kytkin kuidun sisään ja ulos niewra?liwy na polaryzacj? optyczny mechaniczny prze??cznik 2X2 z wej?ciem i wyj?ciem ?wiat?owodu Interruptor 2X2 mecánico óptico insensible a la polarización con entrada y salida de fibra interruptor 2X2 óptico-mecânico insensível à polarização com entrada e saída de fibra SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type FOMS 1550nm 1510nm 1515nm 1520nm 1525nm 1530nm 1535nm 1540nm 1545nm 1590nm 1630nm 1555nm 1560nm 1565nm 1570nm 1575nm 1580nm 1585nm 1595nm 1600nm 1605nm 1610nm 1615nm 1620nm 1625nm polarization insensitive optical mechanical 2X2 switch with fiber in and out Commutateur 2X2 optique mécanique insensible à la polarisation avec entrée et sortie fibre polarisationsunempfindlicher optisch-mechanischer 2X2-Schalter mit Glasfaser-Eingang und -Ausgang interruttore ottico meccanico 2X2 insensibile alla polarizzazione con fibra in entrata e in uscita polarisaatioherkkä optinen mekaaninen 2X2-kytkin kuidun sisään ja ulos niewra?liwy na polaryzacj? optyczny mechaniczny prze??cznik 2X2 z wej?ciem i wyj?ciem ?wiat?owodu Interruptor 2X2 mecánico óptico insensible a la polarización con entrada y salida de fibra interruptor 2X2 óptico-mecânico insensível à polarização com entrada e saída de fibra SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 1315 22L3 22L5 22N3 22N5
TYPICAL SPECIFICATIONS
Center Wavelength 1550nm & 1590nm
Bandwidth +/-30nm
Insertion Loss <=1.2dB
Wavelength Dependent Loss <=0.35dB
Return Loss >=50dB
PDL <=0.1dB
Cross Talk >=55dB
Switch Speed <=10ms
Operating Voltage 3V or 5V
Fiber Type SMF-28 Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~70degreeC

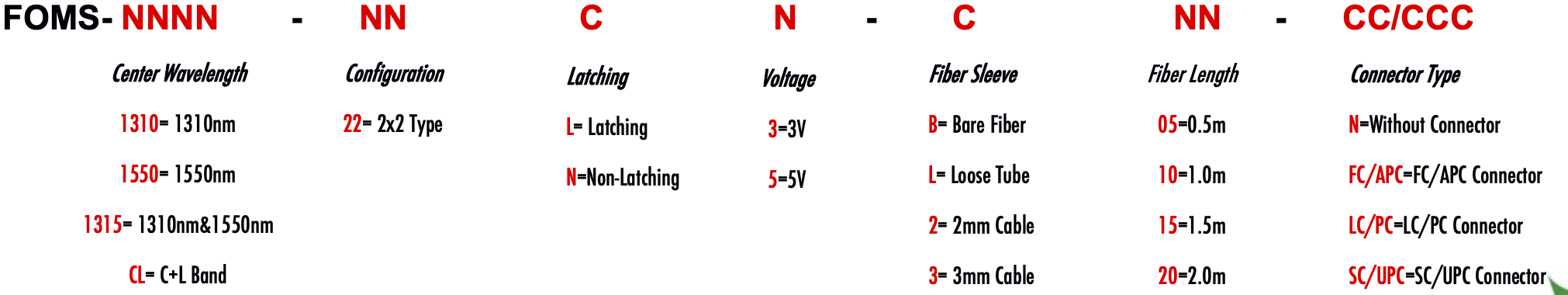

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
