1480nm PM Long Working Distance Single Fiber Collimator for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Fiber Collimator is made by micro-optics package technology with Polarization Maintaining (PM) fiber in or PM fiber out. It features Wide & Flat Spectrum and Various Working Distance. The Fiber Collimator will output and collimate the light signal into free space or collect collimating beam into optical fiber. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPCO 1480nm 1410nm 1530nm 1415nm 1420nm 1425nm 1430nm 1435nm 1440nm 1445nm 1450nm 1455nm 1460nm 1465nm 1470nm 1475nm 1485nm 1490nm 1495nm 1500nm 1505nm 1510nm 1515nm 1520nm 1525nm polarization insensitive optical fiber collimator with collimated gaussian beam for free space output or space doublet to collect light from free space with Grin lens C spherical lens and aspherical lens colimador de fibra óptica insensible a la polarización con haz gaussiano colimado para salida de espacio libre o doblete espacial para recoger luz del espacio libre con lente esférica C y lente asférica de lente Grin colimador de fibra óptica insensível à polarização com feixe gaussiano colimado para saída de espaço livre ou dupleto de espaço para coletar luz do espaço livre com lente Grin lente esférica C e lente asférica polarisaatioherkkä optisen kuidun kollimaattori, jossa on kollimoitu gaussinen säde vapaan tilan tuottamiseksi tai avaruusdubletti valon keräämiseksi vapaasta tilasta Grin-linssin pallomaisella linssillä ja asfäärisellä linssillä polarisationsunempfindlicher Lichtleiterkollimator mit kollimiertem Gaußschen Strahl für die Ausgabe im freien Raum oder Raumdublett zum Sammeln von Licht aus dem freien Raum mit der sphärischen Linse C und der asphärischen Linse der Grin-Linse C Collimateur à fibre optique insensible à la polarisation avec faisceau gaussien collimaté pour une sortie d'espace libre ou doublet d'espace pour collecter la lumière de l'espace libre avec lentille Grin C lentille sphérique et lentille asphérique kolimator ?wiat?owodowy niewra?liwy na polaryzacj? ze skolimowan? wi?zk? Gaussa zapewniaj?c? wyj?cie w wolnej przestrzeni lub dublet kosmiczny do zbierania ?wiat?a z wolnej przestrzeni za pomoc? soczewki sferycznej Grin C i soczewki asferycznej collimatore in fibra ottica insensibile alla polarizzazione con fascio gaussiano collimato per l'uscita nello spazio libero o doppietto nello spazio per raccogliere la luce dallo spazio libero con lente Grin C lente sferica e lente asferica PM1310 PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPCO 1480nm 1410nm 1530nm 1415nm 1420nm 1425nm 1430nm 1435nm 1440nm 1445nm 1450nm 1455nm 1460nm 1465nm 1470nm 1475nm 1485nm 1490nm 1495nm 1500nm 1505nm 1510nm 1515nm 1520nm 1525nm polarization insensitive optical fiber collimator with collimated gaussian beam for free space output or space doublet to collect light from free space with Grin lens C spherical lens and aspherical lens colimador de fibra óptica insensible a la polarización con haz gaussiano colimado para salida de espacio libre o doblete espacial para recoger luz del espacio libre con lente esférica C y lente asférica de lente Grin colimador de fibra óptica insensível à polarização com feixe gaussiano colimado para saída de espaço livre ou dupleto de espaço para coletar luz do espaço livre com lente Grin lente esférica C e lente asférica polarisaatioherkkä optisen kuidun kollimaattori, jossa on kollimoitu gaussinen säde vapaan tilan tuottamiseksi tai avaruusdubletti valon keräämiseksi vapaasta tilasta Grin-linssin pallomaisella linssillä ja asfäärisellä linssillä polarisationsunempfindlicher Lichtleiterkollimator mit kollimiertem Gaußschen Strahl für die Ausgabe im freien Raum oder Raumdublett zum Sammeln von Licht aus dem freien Raum mit der sphärischen Linse C und der asphärischen Linse der Grin-Linse C Collimateur à fibre optique insensible à la polarisation avec faisceau gaussien collimaté pour une sortie d'espace libre ou doublet d'espace pour collecter la lumière de l'espace libre avec lentille Grin C lentille sphérique et lentille asphérique kolimator ?wiat?owodowy niewra?liwy na polaryzacj? ze skolimowan? wi?zk? Gaussa zapewniaj?c? wyj?cie w wolnej przestrzeni lub dublet kosmiczny do zbierania ?wiat?a z wolnej przestrzeni za pomoc? soczewki sferycznej Grin C i soczewki asferycznej collimatore in fibra ottica insensibile alla polarizzazione con fascio gaussiano collimato per l'uscita nello spazio libero o doppietto nello spazio per raccogliere la luce dallo spazio libero con lente Grin C lente sferica e lente asferica PM1310 PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPCO 1480nm 1410nm 1530nm 1415nm 1420nm 1425nm 1430nm 1435nm 1440nm 1445nm 1450nm 1455nm 1460nm 1465nm 1470nm 1475nm 1485nm 1490nm 1495nm 1500nm 1505nm 1510nm 1515nm 1520nm 1525nm polarization insensitive optical fiber collimator with collimated gaussian beam for free space output or space doublet to collect light from free space with Grin lens C spherical lens and aspherical lens colimador de fibra óptica insensible a la polarización con haz gaussiano colimado para salida de espacio libre o doblete espacial para recoger luz del espacio libre con lente esférica C y lente asférica de lente Grin colimador de fibra óptica insensível à polarização com feixe gaussiano colimado para saída de espaço livre ou dupleto de espaço para coletar luz do espaço livre com lente Grin lente esférica C e lente asférica polarisaatioherkkä optisen kuidun kollimaattori, jossa on kollimoitu gaussinen säde vapaan tilan tuottamiseksi tai avaruusdubletti valon keräämiseksi vapaasta tilasta Grin-linssin pallomaisella linssillä ja asfäärisellä linssillä polarisationsunempfindlicher Lichtleiterkollimator mit kollimiertem Gaußschen Strahl für die Ausgabe im freien Raum oder Raumdublett zum Sammeln von Licht aus dem freien Raum mit der sphärischen Linse C und der asphärischen Linse der Grin-Linse C Collimateur à fibre optique insensible à la polarisation avec faisceau gaussien collimaté pour une sortie d'espace libre ou doublet d'espace pour collecter la lumière de l'espace libre avec lentille Grin C lentille sphérique et lentille asphérique kolimator ?wiat?owodowy niewra?liwy na polaryzacj? ze skolimowan? wi?zk? Gaussa zapewniaj?c? wyj?cie w wolnej przestrzeni lub dublet kosmiczny do zbierania ?wiat?a z wolnej przestrzeni za pomoc? soczewki sferycznej Grin C i soczewki asferycznej collimatore in fibra ottica insensibile alla polarizzazione con fascio gaussiano collimato per l'uscita nello spazio libero o doppietto nello spazio per raccogliere la luce dallo spazio libero con lente Grin C lente sferica e lente asferica PM1310 PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda Polarizzazione Mantenimento del rapporto di estinzione Polarisation Aufrechterhaltung des Extinktionsverhältnisses Polarización Mantener la relación de extinción Polarização Mantendo a taxa de extinção Polarisation maintenant le rapport d'extinction Polarisaatio ylläpitämällä sukupuuttoon suhteen for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP LMCF LMCD LMAF LMAD LGCF LGCD LGAD LGCF L050 L50 L100 L150 L200 L250 L300 L350 L400 L450 L500 L550 L600 L650 L700 L750 L800 L850 L900 L1000 L1050 L1100 L1150 L1200
TYPICAL SPECIFICATIONS
Center Wavelength 1480nm
Bandwidth +/-20nm
Working Distance (WD) 50~800mm
Insertion Loss <=0.4dB (WD: 50~100), <=0.5dB (WD: 101~250)
<=0.6dB (WD: 251~500), <=0.8dB (WD: 501~800)
Return Loss >=50dB
Nominal Beam Diameter ~0.45mm (WD: 50~100), ~0.75mm (WD: 101~250)
~0.95mm (WD: 251~500), ~1.2mm (WD: 501~800)
Work Mode Free Space Output or Space Doublet
Extinction Ratio >=20dB
Lens Type Long Distance C-Lens or Aspherical-Lens
Fiber Type PM1310 Fiber or 10/125um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~70degreeC

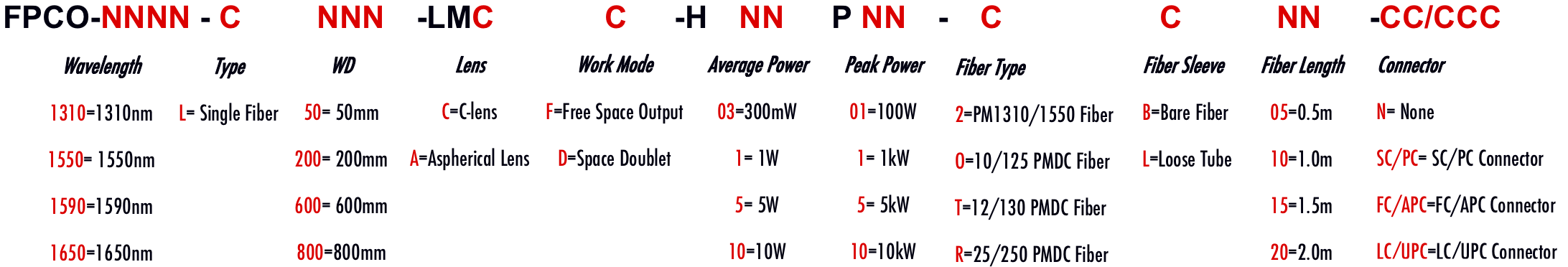

ORDERING INFORMATION/PART NUMBER(PN)
