1650nm PM Fiber Patchcord

DESCRIPTION
Haphit provides fiber based passive components. The Optical PM Fiber Patchcord is made by micro-optics package technology with PM fiber in and PM fiber out. It features Low Insertion Loss and Various Length. The Optical Filter Patchcord will connect two fiber ports with an adapter. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
PPTC 1650nm 1630nm 1670nm 1635nm 1640nm 1645nm 1655nm 1660nm 1665nm polarization insensitive singlemode optical fiber patchcord and jumper cable Cavo patch in fibra ottica monomodale insensibile alla polarizzazione e cavo jumper Cable de conexión y puente de fibra óptica monomodo insensible a la polarización patchcord de fibra óptica monomodo insensível à polarização e cabo jumper polarisaatioherkkä yksimoodinen optisen kuidun patchcord ja jumpperikaapeli Câble de raccordement et câble de raccordement à fibre optique monomode insensible à la polarisation polarisationsunempfindliches Singlemode-Patchkabel und Überbrückungskabel ?wiat?owodowy patchcord i kabel po??czeniowy niewra?liwy na polaryzacj? SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad Polarization Maintaining single clad fiber and polarization double clad fiber with extinction ratio and panda style PMSC PMDC ER Polaryzacja Utrzymanie pojedynczego w?ókna i podwójnego w?ókna polaryzacyjnego ze wspó?czynnikiem ekstynkcji i stylem pandy Polarisation Aufrechterhaltung einer einfach ummantelten Faser und einer doppelt ummantelten Polarisationsfaser mit Extinktionsverhältnis und Panda-Stil Polarisation Maintien de la fibre à simple revêtement et de la fibre à double revêtement de polarisation avec rapport d'extinction et style panda Polarisaatio Yksikerroksisen kuidun ja kaksoisverhotun kuidun säilyttäminen sukupuuttoasteella ja pandatyylillä Polarizzazione Mantenimento della fibra a rivestimento singolo e fibra a doppio rivestimento di polarizzazione con rapporto di estinzione e stile panda Polarização Mantendo fibra de revestimento único e fibra de revestimento duplo de polarização com taxa de extinção e estilo panda olarización Mantenimiento de fibra de revestimiento simple y fibra de revestimiento doble de polarización con relación de extinción y estilo panda PPTC 1650nm 1630nm 1670nm 1635nm 1640nm 1645nm 1655nm 1660nm 1665nm polarization insensitive singlemode optical fiber patchcord and jumper cable Cavo patch in fibra ottica monomodale insensibile alla polarizzazione e cavo jumper Cable de conexión y puente de fibra óptica monomodo insensible a la polarización patchcord de fibra óptica monomodo insensível à polarização e cabo jumper polarisaatioherkkä yksimoodinen optisen kuidun patchcord ja jumpperikaapeli Câble de raccordement et câble de raccordement à fibre optique monomode insensible à la polarisation polarisationsunempfindliches Singlemode-Patchkabel und Überbrückungskabel ?wiat?owodowy patchcord i kabel po??czeniowy niewra?liwy na polaryzacj? SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad Polarization Maintaining single clad fiber and polarization double clad fiber with extinction ratio and panda style PMSC PMDC ER Polaryzacja Utrzymanie pojedynczego w?ókna i podwójnego w?ókna polaryzacyjnego ze wspó?czynnikiem ekstynkcji i stylem pandy Polarisation Aufrechterhaltung einer einfach ummantelten Faser und einer doppelt ummantelten Polarisationsfaser mit Extinktionsverhältnis und Panda-Stil Polarisation Maintien de la fibre à simple revêtement et de la fibre à double revêtement de polarisation avec rapport d'extinction et style panda Polarisaatio Yksikerroksisen kuidun ja kaksoisverhotun kuidun säilyttäminen sukupuuttoasteella ja pandatyylillä Polarizzazione Mantenimento della fibra a rivestimento singolo e fibra a doppio rivestimento di polarizzazione con rapporto di estinzione e stile panda Polarização Mantendo fibra de revestimento único e fibra de revestimento duplo de polarização com taxa de extinção e estilo panda olarización Mantenimiento de fibra de revestimiento simple y fibra de revestimiento doble de polarización con relación de extinción y estilo panda PPTC 1650nm 1630nm 1670nm 1635nm 1640nm 1645nm 1655nm 1660nm 1665nm polarization insensitive singlemode optical fiber patchcord and jumper cable Cavo patch in fibra ottica monomodale insensibile alla polarizzazione e cavo jumper Cable de conexión y puente de fibra óptica monomodo insensible a la polarización patchcord de fibra óptica monomodo insensível à polarização e cabo jumper polarisaatioherkkä yksimoodinen optisen kuidun patchcord ja jumpperikaapeli Câble de raccordement et câble de raccordement à fibre optique monomode insensible à la polarisation polarisationsunempfindliches Singlemode-Patchkabel und Überbrückungskabel ?wiat?owodowy patchcord i kabel po??czeniowy niewra?liwy na polaryzacj? SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad Polarization Maintaining single clad fiber and polarization double clad fiber with extinction ratio and panda style PMSC PMDC ER Polaryzacja Utrzymanie pojedynczego w?ókna i podwójnego w?ókna polaryzacyjnego ze wspó?czynnikiem ekstynkcji i stylem pandy Polarisation Aufrechterhaltung einer einfach ummantelten Faser und einer doppelt ummantelten Polarisationsfaser mit Extinktionsverhältnis und Panda-Stil Polarisation Maintien de la fibre à simple revêtement et de la fibre à double revêtement de polarisation avec rapport d'extinction et style panda Polarisaatio Yksikerroksisen kuidun ja kaksoisverhotun kuidun säilyttäminen sukupuuttoasteella ja pandatyylillä Polarizzazione Mantenimento della fibra a rivestimento singolo e fibra a doppio rivestimento di polarizzazione con rapporto di estinzione e stile panda Polarização Mantendo fibra de revestimento único e fibra de revestimento duplo de polarização com taxa de extinção e estilo panda olarización Mantenimiento de fibra de revestimiento simple y fibra de revestimiento doble de polarización con relación de extinción y estilo panda PM1650. S2B S2BCL S2LYL S2LBL S2LRD S2LOR S2LBK S2LGR S2LWT S2TYL S2TBL S2TRD S2TOR S2TBK S2TGR S2TWT D2LYL D2LBL D2LRD D2LOR D2LBK D2LGR D2LWT D2TYL D2TBL D2TRD D2TOR D2TBK D2TGR D2TWT S2YL S22BL S22RD S22OR S22BK S22GR S22WT D22YL D22BL D22RD D22OR D22BK D22GR D22WT S23YL S23BL S23RD S23OR S23BK S23GR S23WT D23YL D23BL D23RD D23OR D23BK D23GR D23WT SB SOBCL SOLYL SOLBL SOLRD SOLOR SOLBK SOLGR SOLWT SOTYL SOTBL SOTRD SOTOR SOTBK SOTGR SOTWT DOLYL DOLBL DOLRD DOLOR DOLBK DOLGR DOLWT DOTYL DOTBL DOTRD DOTOR DOTBK DOTGR DOTWT S2YL SO2BL SO2RD SO2OR SO2BK SO2GR SO2WT DO2YL DO2BL DO2RD DO2OR DO2BK DO2GR DO2WT SO3YL SO3BL SO3RD SO3OR SO3BK SO3GR SO3WT DO3YL DO3BL DO3RD DO3OR DO3BK DO3GR DO3WT STB STBCL STLYL STLBL STLRD STLOR STLBK STLGR STLWT STTYL STTBL STTRD STTOR STTBK STTGR STTWT DTLYL DTLBL DTLRD DTLOR DTLBK DTLGR DTLWT DTTYL DTTBL DTTRD DTTOR DTTBK DTTGR DTTWT S2YL ST2BL ST2RD ST2OR ST2BK ST2GR ST2WT DT2YL DT2BL DT2RD DT2OR DT2BK DT2GR DT2WT ST3YL ST3BL ST3RD ST3OR ST3BK ST3GR ST3WT DT3YL DT3BL DT3RD DT3OR DT3BK DT3GR DT3WT QSB QSBCL QSLYL QSLBL QSLRD QSLOR QSLBK QSLGR QSLWT QSTYL QSTBL QSTRD QSTOR QSTBK QSTGR QSTWT QDLYL QDLBL QDLRD QDLOR QDLBK QDLGR QDLWT QDTYL QDTBL QDTRD QDTOR QDTBK QDTGR QDTWT S2YL QS2BL QS2RD QS2OR QS2BK QS2GR QS2WT QD2YL QD2BL QD2RD QD2OR QD2BK QD2GR QD2WT QS3YL QS3BL QS3RD QS3OR QS3BK QS3GR QS3WT QD3YL QD3BL QD3RD QD3OR QD3BK QD3GR QD3WT SRB SRBCL SRLYL SRLBL SRLRD SRLOR SRLBK SRLGR SRLWT SRTYL SRTBL SRTRD SRTOR SRTBK SRTGR SRTWT RDLYL DRLBL DRLRD DRLOR DRLBK DRLGR DRLWT DRTYL DRTBL DRTRD DRTOR DRTBK DRTGR DRTWT S2YL SR2BL SR2RD SR2OR SR2BK SR2GR SR2WT DR2YL DR2BL DR2RD DR2OR DR2BK DR2GR DR2WT SR3YL SR3BL SR3RD SR3OR SR3BK SR3GR SR3WT DR3YL DR3BL DR3RD DR3OR DR3BK DR3GR DR3WT SGB SGBCL SGLYL SGLBL SGLRD SGLOR SGLBK SGLGR SGLWT SGTYL SGTBL SGTRD SGTOR SGTBK SGTGR SGTWT DGLYL DGLBL DGLRD DGLOR DGLBK DGLGR DGLWT DGTYL DGTBL DGTRD DGTOR DGTBK DGTGR DGTWT S2YL SG2BL SG2RD SG2OR SG2BK SG2GR SG2WT DG2YL DG2BL DG2RD DG2OR DG2BK DG2GR DG2WT SG3YL SG3BL SG3RD SG3OR SG3BK SG3GR SG3WT DG3YL DG3BL DG3RD DG3OR DG3BK DG3GR DG3WT
TYPICAL SPECIFICATIONS
Optical Wavelength 1650nm
Insertion Loss (Typ.) <=0.3dB (PC, SPC, UPC Polish)
<=0.4dB (APC Polish)
Insertion Loss <=0.5dB
Return Loss >=40dB (PC Polish)
>=45 (SPC Polish)
>=50dB (UPC Polish)
>=60dB (APC Polish)
Extinction Ratio >=23dB
Key Alignment Slow axis
Connector Type FC, SC, LC, MU
Fiber Type PM1550 Fiber or 10/125um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Jacket Type Bare Fiber (B),
900um Loose Tube (L), 900um Tight Buffer (T),
2mm Cable (2), 3mm Cable (3)
Jacket Color Yellow (YL); Black (BK); Green (GR); Blue (BL);
Red (RD); Orange (OR); White (WT); Clear (CL)
Max. Optical Power (CW) 300mW
Operating Temperature 0~70degreeC

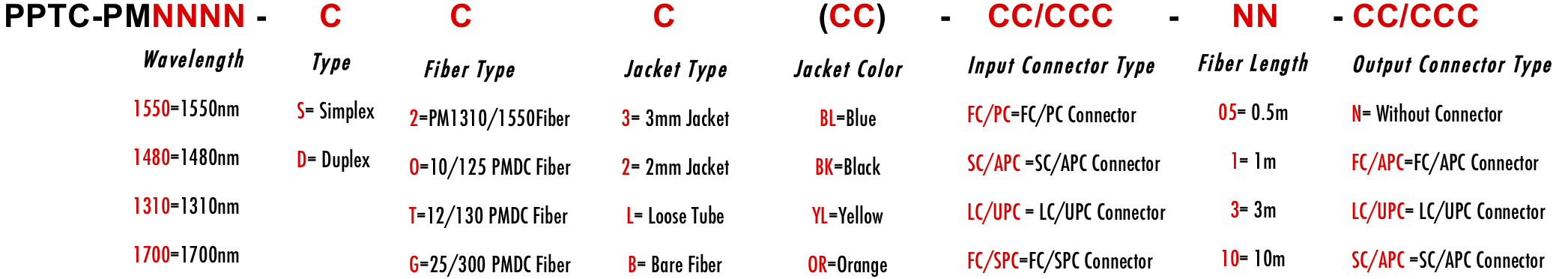

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
