2000nm SM Fiber Patchcord
DESCRIPTION
Haphit provides fiber based passive components. The Optical Fiber Patchcord is made by micro-optics package technology with fiber in and fiber out. It features Low Insertion Loss and Various Length. The Optical Filter Patchcord will connect two fiber ports with an adapter. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
PPTC 2000nm 1970nm 2030nm 1975nm 1980nm 1985nm 1990nm 1995nm 2005nm 2010nm 2015nm 2020nm 2025nm polarization insensitive singlemode optical fiber patchcord and jumper cable Cavo patch in fibra ottica monomodale insensibile alla polarizzazione e cavo jumper Cable de conexión y puente de fibra óptica monomodo insensible a la polarización patchcord de fibra óptica monomodo insensível à polarização e cabo jumper polarisaatioherkkä yksimoodinen optisen kuidun patchcord ja jumpperikaapeli Câble de raccordement et câble de raccordement à fibre optique monomode insensible à la polarisation polarisationsunempfindliches Singlemode-Patchkabel und Überbrückungskabel ?wiat?owodowy patchcord i kabel po??czeniowy niewra?liwy na polaryzacj? SMF-28 SMF28 SM1950 SM2000 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad PPTC 2000nm 1970nm 2030nm 1975nm 1980nm 1985nm 1990nm 1995nm 2005nm 2010nm 2015nm 2020nm 2025nm polarization insensitive singlemode optical fiber patchcord and jumper cable Cavo patch in fibra ottica monomodale insensibile alla polarizzazione e cavo jumper Cable de conexión y puente de fibra óptica monomodo insensible a la polarización patchcord de fibra óptica monomodo insensível à polarização e cabo jumper polarisaatioherkkä yksimoodinen optisen kuidun patchcord ja jumpperikaapeli Câble de raccordement et câble de raccordement à fibre optique monomode insensible à la polarisation polarisationsunempfindliches Singlemode-Patchkabel und Überbrückungskabel ?wiat?owodowy patchcord i kabel po??czeniowy niewra?liwy na polaryzacj? SMF-28 SMF28 SM1950 SM2000 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad PPTC 2000nm 1970nm 2030nm 1975nm 1980nm 1985nm 1990nm 1995nm 2005nm 2010nm 2015nm 2020nm 2025nm polarization insensitive singlemode optical fiber patchcord and jumper cable Cavo patch in fibra ottica monomodale insensibile alla polarizzazione e cavo jumper Cable de conexión y puente de fibra óptica monomodo insensible a la polarización patchcord de fibra óptica monomodo insensível à polarização e cabo jumper polarisaatioherkkä yksimoodinen optisen kuidun patchcord ja jumpperikaapeli Câble de raccordement et câble de raccordement à fibre optique monomode insensible à la polarisation polarisationsunempfindliches Singlemode-Patchkabel und Überbrückungskabel ?wiat?owodowy patchcord i kabel po??czeniowy niewra?liwy na polaryzacj? SMF-28 SMF28 SM1950 SM2000 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad S8B S8BCL S8LYL S8LBL S8LRD S8LOR S8LBK S8LGR S8LWT S8TYL S8TBL S8TRD S8TOR S8TBK S8TGR S8TWT D8LYL D8LBL D8LRD D8LOR D8LBK D8LGR D8LWT D8TYL D8TBL D8TRD D8TOR D8TBK D8TGR D8TWT S8YL S82BL S82RD S82OR S82BK S82GR S82WT D82YL D82BL D82RD D82OR D82BK D82GR D82WT S83YL S83BL S83RD S83OR S83BK S83GR S83WT D83YL D83BL D83RD D83OR D83BK D83GR D83WT SOB SOBCL SOLYL SOLBL SOLRD SOLOR SOLBK SOLGR SOLWT SOTYL SOTBL SOTRD SOTOR SOTBK SOTGR SOTWT DOLYL DOLBL DOLRD DOLOR DOLBK DOLGR DOLWT DOTYL DOTBL DOTRD DOTOR DOTBK DOTGR DOTWT S2YL SO2BL SO2RD SO2OR SO2BK SO2GR SO2WT DO2YL DO2BL DO2RD DO2OR DO2BK DO2GR DO2WT SO3YL SO3BL SO3RD SO3OR SO3BK SO3GR SO3WT DO3YL DO3BL DO3RD DO3OR DO3BK DO3GR DO3WT SVB SVBCL SVLYL SVLBL SVLRD SVLOR SVLBK SVLGR SVLWT SVTYL SVTBL SVTRD SVTOR SVTBK SVTGR SVTWT DVLYL DVLBL DVLRD DVLOR DVLBK DVLGR DVLWT DVTYL DVTBL DVTRD DVTOR DVTBK DVTGR DVTWT SV2YL SV2BL SV2RD SV2OR SV2BK SV2GR SV2WT DV2YL DV2BL DV2RD DV2OR DV2BK DV2GR DV2WT SV3YL SV3BL SV3RD SV3OR SV3BK SV3GR SV3WT DV3YL DV3BL DV3RD DV3OR DV3BK DV3GR DV3WT SRB SRBCL SRLYL SRLBL SRLRD SRLOR SRLBK SRLGR SRLWT SRTYL SRTBL SRTRD SRTOR SRTBK SRTGR SRTWT RDLYL DRLBL DRLRD DRLOR DRLBK DRLGR DRLWT DRTYL DRTBL DRTRD DRTOR DRTBK DRTGR DRTWT S2YL SR2BL SR2RD SR2OR SR2BK SR2GR SR2WT DR2YL DR2BL DR2RD DR2OR DR2BK DR2GR DR2WT SR3YL SR3BL SR3RD SR3OR SR3BK SR3GR SR3WT DR3YL DR3BL DR3RD DR3OR DR3BK DR3GR DR3WT
TYPICAL SPECIFICATIONS
Optical Wavelength
2000nm
Insertion Loss (Typ.)
<=0.3dB (PC, SPC, UPC Polish)
<=0.4dB (APC Polish)
Insertion Loss
<=0.5dB
Return Loss
>=40dB (PC Polish)
>=45 (SPC Polish)
>=50dB (UPC Polish)
>=60dB (APC Polish)
Connector Type
FC, SC, ST, LC, MU
Fiber Type
SMF-28 Fiber or SM1950 Fiber
10/130um DC Fiber or 25/250um DC Fiber
Jacket Type
Bare Fiber (B),
900um Loose Tube (L), 900um Tight Buffer (T),
2mm Cable (2), 3mm Cable (3)
Jacket Color
Yellow (YL); Black (BK); Green (GR); Blue (BL);
Red (RD); Orange (OR); White (WT); Clear (CL)
Max. Optical Power (CW)
300mW
Operating Temperature
0~50degreeC

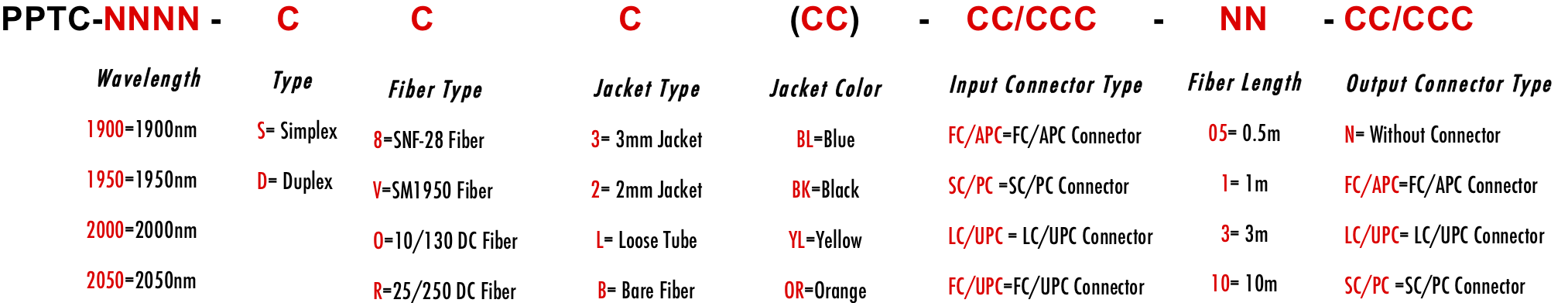

ORDERING INFORMATION/PART NUMBER(PN)
Standard specifications and
design parameters
Serial
Reference
Part Number (PN)*:
The change on PN will save a new product.
Product Description:
Comment/Other Information:
