532nm MM Fiber Patchcord

DESCRIPTION
Haphit provides fiber based passive components. The Optical Multimode Fiber Patchcord is made by micro-optics package technology with MM fiber in and MM fiber out. It features Low Insertion Loss and Various Length. The Optical Filter Patchcord will connect two fiber ports with an adapter. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
PPTC 532nm 500nm 600nm 505nm 510nm 515nm 520nm 525nm 530nm 535nm 540nm 545nm 550nm 555nm 560nm 565nm 570nm 575nm 580nm 585nm 590nm 595nm polarization insensitive singlemode optical fiber patchcord and jumper cable with graded index or step index Cable de conexión de fibra óptica multimodo insensible a la polarización y cable puente con índice graduado o índice de pasos polarisaatioherkkä monimoodinen optisen kuidun patchcord ja jumpperikaapeli, jolla on luokiteltu indeksi tai askelindeksi Cordon de raccordement et câble de raccordement à fibre optique multimode insensible à la polarisation avec indice gradué ou indice de pas polarisationsunempfindliches Multimode-Glasfaser-Patchkabel und Überbrückungskabel mit abgestuftem Index oder Stufenindex Cavo patch in fibra ottica multimodale insensibile alla polarizzazione e cavo jumper con indice graduato o indice di passo patchcord de fibra óptica multimodo insensível à polarização e cabo jumper com índice graduado ou índice de etapas wielomodowy patchcord ?wiat?owodowy i kabel po??czeniowy niewra?liwy na polaryzacj? ze stopniowanym indeksem lub skokiem Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 SC Single Clad Cladding DC Double Clad PPTC 532nm 500nm 600nm 505nm 510nm 515nm 520nm 525nm 530nm 535nm 540nm 545nm 550nm 555nm 560nm 565nm 570nm 575nm 580nm 585nm 590nm 595nm polarization insensitive singlemode optical fiber patchcord and jumper cable with graded index or step index Cable de conexión de fibra óptica multimodo insensible a la polarización y cable puente con índice graduado o índice de pasos polarisaatioherkkä monimoodinen optisen kuidun patchcord ja jumpperikaapeli, jolla on luokiteltu indeksi tai askelindeksi Cordon de raccordement et câble de raccordement à fibre optique multimode insensible à la polarisation avec indice gradué ou indice de pas polarisationsunempfindliches Multimode-Glasfaser-Patchkabel und Überbrückungskabel mit abgestuftem Index oder Stufenindex Cavo patch in fibra ottica multimodale insensibile alla polarizzazione e cavo jumper con indice graduato o indice di passo patchcord de fibra óptica multimodo insensível à polarização e cabo jumper com índice graduado ou índice de etapas wielomodowy patchcord ?wiat?owodowy i kabel po??czeniowy niewra?liwy na polaryzacj? ze stopniowanym indeksem lub skokiem Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 SC Single Clad Cladding DC Double Clad PPTC 532nm 500nm 600nm 505nm 510nm 515nm 520nm 525nm 530nm 535nm 540nm 545nm 550nm 555nm 560nm 565nm 570nm 575nm 580nm 585nm 590nm 595nm polarization insensitive singlemode optical fiber patchcord and jumper cable with graded index or step index Cable de conexión de fibra óptica multimodo insensible a la polarización y cable puente con índice graduado o índice de pasos polarisaatioherkkä monimoodinen optisen kuidun patchcord ja jumpperikaapeli, jolla on luokiteltu indeksi tai askelindeksi Cordon de raccordement et câble de raccordement à fibre optique multimode insensible à la polarisation avec indice gradué ou indice de pas polarisationsunempfindliches Multimode-Glasfaser-Patchkabel und Überbrückungskabel mit abgestuftem Index oder Stufenindex Cavo patch in fibra ottica multimodale insensibile alla polarizzazione e cavo jumper con indice graduato o indice di passo patchcord de fibra óptica multimodo insensível à polarização e cabo jumper com índice graduado ou índice de etapas wielomodowy patchcord ?wiat?owodowy i kabel po??czeniowy niewra?liwy na polaryzacj? ze stopniowanym indeksem lub skokiem Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 SC Single Clad Cladding DC Double Clad 5SB 5SBCL 5SLYL 5SLBL 5SLRD 5SLOR 5SLBK 5SLGR 5SLWT 5STYL 5STBL 5STRD 5STOR 5STBK 5STGR 5STWT 5DLYL 5DLBL 5DLRD 5DLOR 5DLBK 5DLGR 5DLWT 5DTYL 5DTBL 5DTRD 5DTOR 5DTBK 5DTGR 5DTWT S2YL 5S2BL 5S2RD 5S2OR 5S2BK 5S2GR 5S2WT 5D2YL 5D2BL 5D2RD 5D2OR 5D2BK 5D2GR 5D2WT 5S3YL 5S3BL 5S3RD 5S3OR 5S3BK 5S3GR 5S3WT 5D3YL 5D3BL 5D3RD 5D3OR 5D3BK 5D3GR 5D3WT 6SB 6SBCL 6SLYL 6SLBL 6SLRD 6SLOR 6SLBK 6SLGR 6SLWT 6STYL 6STBL 6STRD 6STOR 6STBK 6STGR 6STWT 6DLYL 6DLBL 6DLRD 6DLOR 6DLBK 6DLGR 6DLWT 6DTYL 6DTBL 6DTRD 6DTOR 6DTBK 6DTGR 6DTWT S2YL 6S2BL 6S2RD 6S2OR 6S2BK 6S2GR 6S2WT 6D2YL 6D2BL 6D2RD 6D2OR 6D2BK 6D2GR 6D2WT 6S3YL 6S3BL 6S3RD 6S3OR 6S3BK 6S3GR 6S3WT 6D3YL 6D3BL 6D3RD 6D3OR 6D3BK 6D3GR 6 ASB ASBCL ASLYL ASLBL ASLRD ASLOR ASLBK ASLGR ASLWT ASTYL ASTBL ASTRD ASTOR ASTBK ASTGR ASTWT ADLYL ADLBL ADLRD ADLOR ADLBK ADLGR ADLWT ADTYL ADTBL ADTRD ADTOR ADTBK ADTGR ADTWT S2YL AS2BL AS2RD AS2OR AS2BK AS2GR AS2WT AD2YL AD2BL AD2RD AD2OR AD2BK AD2GR AD2WT AS3YL AS3BL AS3RD AS3OR AS3BK AS3GR AS3WT AD3YL AD3BL AD3RD AD3OR AD3BK AD3GR AD3WT BSB BSBCL BSLYL BSLBL BSLRD BSLOR BSLBK BSLGR BSLWT BSTYL BSTBL BSTRD BSTOR BSTBK BSTGR BSTWT BDLYL BDLBL BDLRD BDLOR BDLBK BDLGR BDLWT BDTYL BDTBL BDTRD BDTOR BDTBK BDTGR BDTWT S2YL BS2BL BS2RD BS2OR BS2BK BS2GR BS2WT BD2YL BD2BL BD2RD BD2OR BD2BK BD2GR BD2WT BS3YL BS3BL BS3RD BS3OR BS3BK BS3GR BS3WT BD3YL BD3BL BD3RD BD3OR BD3BK BD3GR BD3WT DSB DSBCL DSLYL DSLBL DSLRD DSLOR DSLBK DSLGR DSLWT DSTYL DSTBL DSTRD DSTOR DSTBK DSTGR DSTWT DDLYL DDLBL DDLRD DDLOR DDLBK DDLGR DDLWT DDTYL DDTBL DDTRD DDTOR DDTBK DDTGR DDTWT S2YL DS2BL DS2RD DS2OR DS2BK DS2GR DS2WT DD2YL DD2BL DD2RD DD2OR DD2BK DD2GR DD2WT DS3YL DS3BL DS3RD DS3OR DS3BK DS3GR DS3WT DD3YL DD3BL DD3RD DD3OR DD3BK DD3GR DD3WT JSB JSBCL JSLYL JSLBL JSLRD JSLOR JSLBK JSLGR JSLWT JSTYL JSTBL JSTRD JSTOR JSTBK JSTGR JSTWT JDLYL JDLBL JDLRD JDLOR JDLBK JDLGR JDLWT JDTYL JDTBL JDTRD JDTOR JDTBK JDTGR JDTWT S2YL JS2BL JS2RD JS2OR JS2BK JS2GR JS2WT JD2YL JD2BL JD2RD JD2OR JD2BK JD2GR JD2WT JS3YL JS3BL JS3RD JS3OR JS3BK JS3GR JS3WT JD3YL JD3BL JD3RD JD3OR JD3BK JD3GR JD3WT
TYPICAL SPECIFICATIONS
Optical Wavelength 532nm
Insertion Loss (Typ.) <=0.12dB (PC, SPC, UPC Polish)
<=0.15dB (APC Polish)
Insertion Loss <=0.3dB
Return Loss >=20dB (PC Polish)
>=25dB (UPC Polish)
>=30dB (APC Polish)
Connector Type FC, SC, ST, LC, MU, E2000, MT-RJ, MPO, MTP
Fiber Type 50/125um GIMM Fiber(5) or 62.5/125um GIMM Fiber(6)
50/125um GIMM OM3 Fiber(3) or 106.5/125um NA=0.22(J)
105/125um NA=0.12(D), NA=0.15(B) or NA=0.22(A)
Jacket Type Bare Fiber (B),
900um Loose Tube (L), 900um Tight Buffer (T),
2mm Cable (2), 3mm Cable (3)
Jacket Color Yellow (YL); Black (BK); Green (GR); Blue (BL);
Red (RD); Orange (OR); White (WT); Clear (CL)
Max. Optical Power (CW) 100mW
Operating Temperature 0~50degreeC

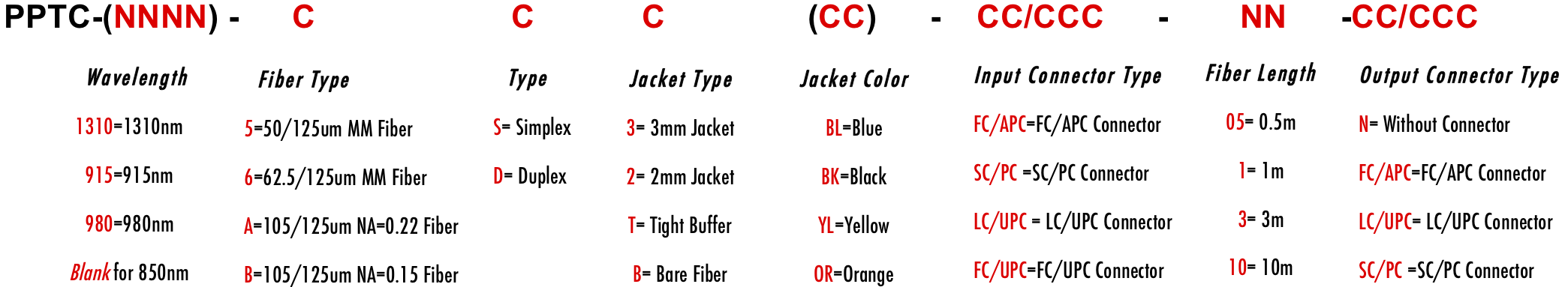

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
