650nm SM Fiber Patchcord

DESCRIPTION
Haphit provides fiber based passive components. The Optical Fiber Patchcord is made by micro-optics package technology with fiber in and fiber out. It features Low Insertion Loss and Various Length. The Optical Filter Patchcord will connect two fiber ports with an adapter. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
PPTC 650nm 640nm 660nm 645nm 655nm polarization insensitive singlemode optical fiber patchcord and jumper cable Cavo patch in fibra ottica monomodale insensibile alla polarizzazione e cavo jumper Cable de conexión y puente de fibra óptica monomodo insensible a la polarización patchcord de fibra óptica monomodo insensível à polarização e cabo jumper polarisaatioherkkä yksimoodinen optisen kuidun patchcord ja jumpperikaapeli Câble de raccordement et câble de raccordement à fibre optique monomode insensible à la polarisation polarisationsunempfindliches Singlemode-Patchkabel und Überbrückungskabel ?wiat?owodowy patchcord i kabel po??czeniowy niewra?liwy na polaryzacj? 630HP 3/125um SC Single Clad Cladding PPTC 650nm 640nm 660nm 645nm 655nm polarization insensitive singlemode optical fiber patchcord and jumper cable Cavo patch in fibra ottica monomodale insensibile alla polarizzazione e cavo jumper Cable de conexión y puente de fibra óptica monomodo insensible a la polarización patchcord de fibra óptica monomodo insensível à polarização e cabo jumper polarisaatioherkkä yksimoodinen optisen kuidun patchcord ja jumpperikaapeli Câble de raccordement et câble de raccordement à fibre optique monomode insensible à la polarisation polarisationsunempfindliches Singlemode-Patchkabel und Überbrückungskabel ?wiat?owodowy patchcord i kabel po??czeniowy niewra?liwy na polaryzacj? 630HP 3/125um SC Single Clad Cladding PPTC 650nm 640nm 660nm 645nm 655nm polarization insensitive singlemode optical fiber patchcord and jumper cable Cavo patch in fibra ottica monomodale insensibile alla polarizzazione e cavo jumper Cable de conexión y puente de fibra óptica monomodo insensible a la polarización patchcord de fibra óptica monomodo insensível à polarização e cabo jumper polarisaatioherkkä yksimoodinen optisen kuidun patchcord ja jumpperikaapeli Câble de raccordement et câble de raccordement à fibre optique monomode insensible à la polarisation polarisationsunempfindliches Singlemode-Patchkabel und Überbrückungskabel ?wiat?owodowy patchcord i kabel po??czeniowy niewra?liwy na polaryzacj? 630HP 3/125um SC Single Clad Cladding SB SBCL SLYL SLBL SLRD SLOR SLBK SLGR SLWT STYL STBL STRD STOR STBK STGR STWT DLYL DLBL DLRD DLOR DLBK DLGR DLWT DTYL DTBL DTRD DTOR DTBK DTGR DTWT S2YL S2BL S2RD S2OR S2BK S2GR S2WT D2YL D2BL D2RD D2OR D2BK D2GR D2WT S3YL S3BL S3RD S3OR S3BK S3GR S3WT D3YL D3BL D3RD D3OR D3BK D3GR D3WT
TYPICAL SPECIFICATIONS
Optical Wavelength 650nm
Insertion Loss (Typ.) <=0.8dB (PC, SPC, UPC Polish)
<=0.9dB (APC Polish)
Insertion Loss <=1.5dB
Return Loss >=40dB (PC Polish)
>=45 (SPC Polish)
>=50dB (UPC Polish)
>=60dB (APC Polish)
Connector Type FC, SC, ST, LC, MU
Fiber Type 630-HP Fiber
Jacket Type Bare Fiber (B),
900um Loose Tube (L), 900um Tight Buffer (T),
2mm Cable (2), 3mm Cable (3)
Jacket Color Yellow (YL); Black (BK); Green (GR); Blue (BL);
Red (RD); Orange (OR); White (WT); Clear (CL)
Max. Optical Power (CW) 100mW
Operating Temperature 0~50degreeC

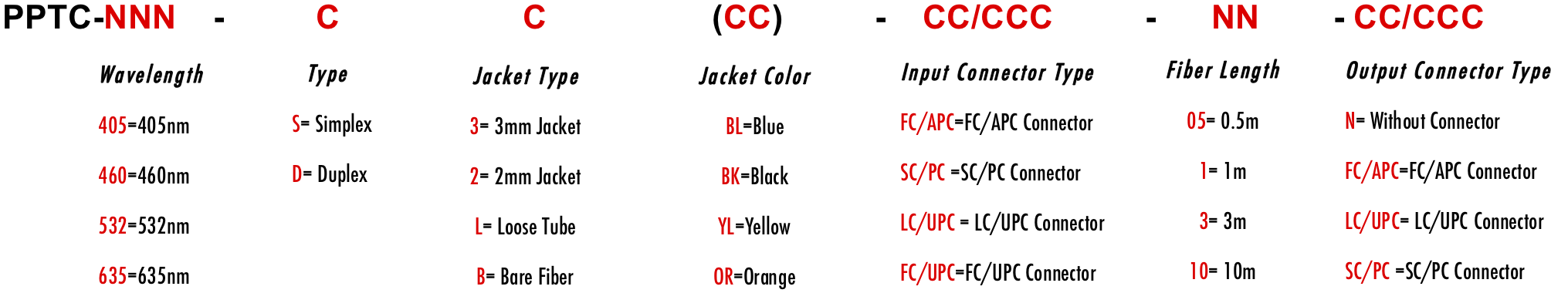

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
