850nm High Power Optical Isolator for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and high Wavelength Isolation. The Optical Isolator will transmit the signal at single direction. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FISO 850nm 840nm 860nm 845nm 855nm 854nm 856nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI780 780HP 5/125um 4/125um 3-port Y Type for Pulse Power 300mW 500mW 1W 2W 3W 5W 10W  15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FISO 850nm 840nm 860nm 845nm 855nm 854nm 856nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI780 780HP 5/125um 4/125um 3-port Y Type for Pulse Power 300mW 500mW 1W 2W 3W 5W 10W  15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FISO 850nm 840nm 860nm 845nm 855nm 854nm 856nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI780 780HP 5/125um 4/125um 3-port Y Type for Pulse Power 300mW 500mW 1W 2W 3W 5W 10W  15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP
TYPICAL SPECIFICATIONS
Center Wavelength 850nm
Peak Isolation 28
Isolation (23degree) >=23
Insertion Loss (Typical, 23degree) 1.0dB
Insertion Loss (23degree) <=1.6dB
Return Loss >=50dB
PDL <=0.15dB
Fiber Type HI780 Fiber or 780-HP Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

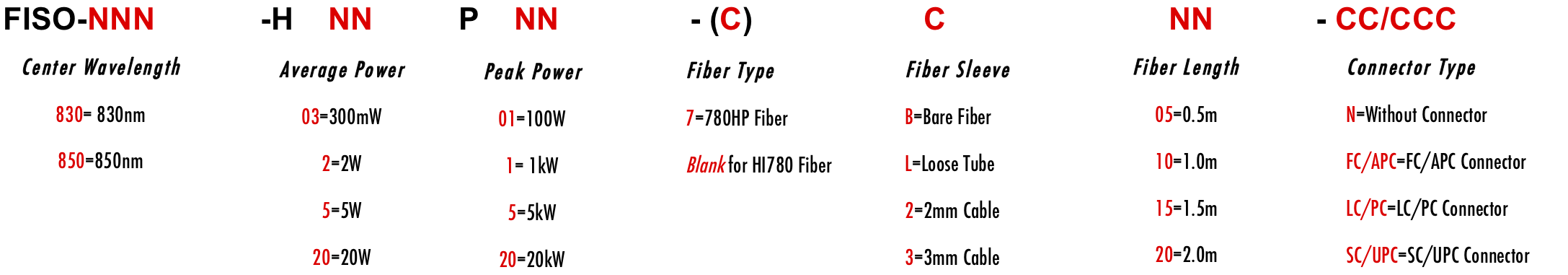

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
