750nm High Power 4-port PM Optical Circulator for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Optical Circulator is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Wide Spectrum, high Wavelength Isolation and high Extinction Ratio. The Optical Circulator will transmit the signal in a circular route. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPCR 750nm 740nm 760nm 745nm 755nm 770nm 765nm PM Optical Circulator Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu PM850 PM780HP 4/125um 5/125um 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPCR 750nm 740nm 760nm 745nm 755nm 770nm 765nm PM Optical Circulator Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu PM850 PM780HP 4/125um 5/125um 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPCR 750nm 740nm 760nm 745nm 755nm 770nm 765nm PM Optical Circulator Bomba de circulação gebläse circulateur Circulador cirkulationspump kiertovesipumppu PM850 PM780HP 4/125um 5/125um 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W  100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP F F4
TYPICAL SPECIFICATIONS
Center Wavelength 750nm
Insertion Loss <=2.5dB
Isolation >=16dB
Return Loss >=45dB
Extinction Ratio >=16dB
Work Mode S Type: Can only work in slow axis
F Type: Can work both in slow axis and fast axis
Fiber Type PM850 Fiber or PM780-HP Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

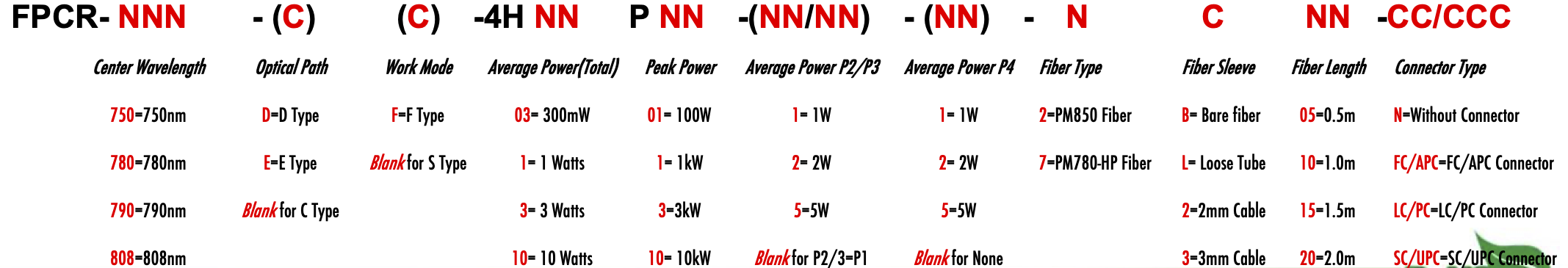

ORDERING INFORMATION/PART NUMBER(PN)
