808nm Singlemode Pump Laser Protector with Isolator

DESCRIPTION
Haphit provides fiber based passive components. The Pump Laser Protector with Isolator is made by Micro Optics Package technology with fiber in and fiber out. It features High Signal Isolation and Various Signal Ranges. The Pump Laser Protector with Isolator will pass pump light while at the same time block both backward signal and backward pump light to protect pump laser diode. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FSPI 808nm 798nm 820nm 800nm 805nm 810nm 815nm high power singlemode Pump Laser Protector with Isolator optical fiber z izolatorem com isolador avec isolateur eristimellä mit Isolator con isolatore con aislador ?wiat?owód z ochron? lasera jednomodowego pompy wysokiej mocy fibra óptica protetora laser de bomba monomodo de alta potência suuritehoinen yksitilapumppu lasersuoja optinen kuitu Hochleistungs-Singlemode-Pump-Laserschutz-Lichtwellenleiter fibre optique de protecteur de laser de pompe monomode de haute puissance Fibra óptica de protección láser de bomba monomodo de alta potencia fibra ottica protettore laser pompa monomodale ad alta potenza 2-port 3-port Y type HI780 780HP 4/125um 5/125um SC Single Clad Cladding DC Double Clad High Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W Watt Watts HP CW Continuous Wave FSPI 808nm 798nm 820nm 800nm 805nm 810nm 815nm high power singlemode Pump Laser Protector with Isolator optical fiber z izolatorem com isolador avec isolateur eristimellä mit Isolator con isolatore con aislador ?wiat?owód z ochron? lasera jednomodowego pompy wysokiej mocy fibra óptica protetora laser de bomba monomodo de alta potência suuritehoinen yksitilapumppu lasersuoja optinen kuitu Hochleistungs-Singlemode-Pump-Laserschutz-Lichtwellenleiter fibre optique de protecteur de laser de pompe monomode de haute puissance Fibra óptica de protección láser de bomba monomodo de alta potencia fibra ottica protettore laser pompa monomodale ad alta potenza 2-port 3-port Y type HI780 780HP 4/125um 5/125um SC Single Clad Cladding DC Double Clad High Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W Watt Watts HP CW Continuous Wave FSPI 808nm 798nm 820nm 800nm 805nm 810nm 815nm high power singlemode Pump Laser Protector with Isolator optical fiber z izolatorem com isolador avec isolateur eristimellä mit Isolator con isolatore con aislador ?wiat?owód z ochron? lasera jednomodowego pompy wysokiej mocy fibra óptica protetora laser de bomba monomodo de alta potência suuritehoinen yksitilapumppu lasersuoja optinen kuitu Hochleistungs-Singlemode-Pump-Laserschutz-Lichtwellenleiter fibre optique de protecteur de laser de pompe monomode de haute puissance Fibra óptica de protección láser de bomba monomodo de alta potencia fibra ottica protettore laser pompa monomodale ad alta potenza 2-port 3-port Y type HI780 780HP 4/125um 5/125um SC Single Clad Cladding DC Double Clad High Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W Watt Watts HP CW Continuous Wave FSPI 808nm 798nm 820nm 800nm 805nm 810nm 815nm high power singlemode Pump Laser Protector with Isolator optical fiber z izolatorem com isolador avec isolateur eristimellä mit Isolator con isolatore con aislador ?wiat?owód z ochron? lasera jednomodowego pompy wysokiej mocy fibra óptica protetora laser de bomba monomodo de alta potência suuritehoinen yksitilapumppu lasersuoja optinen kuitu Hochleistungs-Singlemode-Pump-Laserschutz-Lichtwellenleiter fibre optique de protecteur de laser de pompe monomode de haute puissance Fibra óptica de protección láser de bomba monomodo de alta potencia fibra ottica protettore laser pompa monomodale ad alta potenza 2-port 3-port Y type HI780 780HP 4/125um 5/125um SC Single Clad Cladding DC Double Clad High Power 300mW 500mW 1W 2W 3W 4W 5W 6W 7W 8W 9W 10W 15W 20W Watt Watts HP CW Continuous Wave 9IYY 9IYA 9IY5 9I5Y 9I55 9I5A 9IAY 9IA5 9IAA 9YY 9YA 9Y5 95Y 955 95A 9AY 9A5 9AA 8IYY 8IYA 8IY5 8I5Y 8I55 8I5A 8IAY 8IA5 8IAA 8YY 8YA 8Y5 85Y 855 85A 8AY 8A5 8AA 5IYY 5IYA 5IY5 5I5Y 5I55 5I5A 5IAY 5IA5 5IAA 5YY 5YA 5Y5 55Y 555 55A 5AY 5A5 5AA 2IYY 2IYA 2IY5 2I5Y 2I55 2I5A 2IAY 2IA5 2IAA 2YY 2YA 2Y5 25Y 255 25A 2AY 2A5 2AA
TYPICAL SPECIFICATIONS
Pump Laser Wavelength 808+/-10nm
Block Signal Wavelength Type 5: 1500-1620nm
Type 2: 1020-1120nm & 1500-1620nm
Type 8: 880-1100nm
Type 9: 1900-2070nm
Pump Insertion Loss <=1.5dB (Standard), <=1.8dB (High Signal Isolation)
Backward Pump Isolation >=22dB
Backward Signal Attenuation >=25dB (Standard), >=50dB (High Isolation)
Configuration D Type: 2-port
Y/X Type: 3/4-port (Backward Signal/Pump Guide Out)
Return Loss >=50dB
Fiber Type HI780 Fiber or 780-HP Fiber
Max. Optical Power(Pump+Signal,CW) 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Backward Signal/Pump Power (CW) 300mW, 500mW, 1W, 2W, 3W, 5W, 10W
Operating Temperature 0~50degreeC

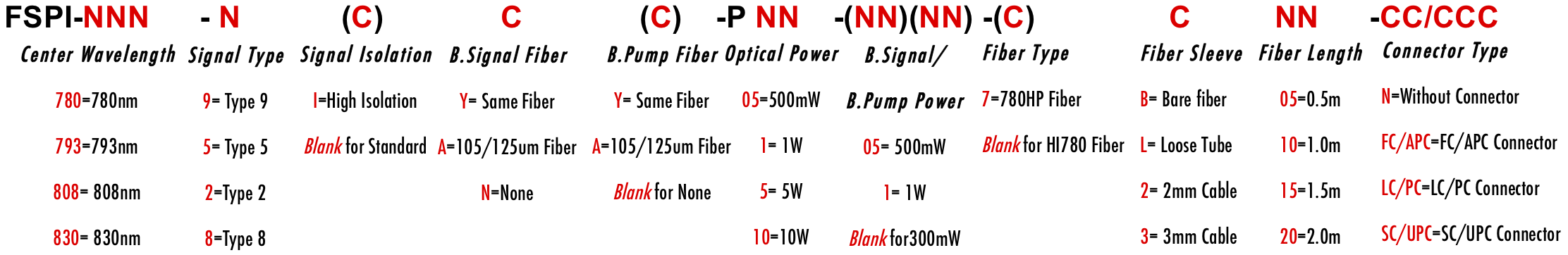

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
