2050nm High Power 2X2 Polarization Beam Combiner/Splitter

DESCRIPTION
Haphit provides fiber based passive components. The 2X2 Polarization Beam Combiner/Splitter is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and High Reliability. The 2X2 Polarization Beam Combiner/Splitter will split or combine double two orthogonal linear polarized light. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPDC FPDS 2050nm 2030nm 2070nm 2035nm 2040nm 2045nm 2055nm 2060nm 2065nm Fiber optical polarization beam combiner and splitter with polarization sensitive optics Combinador e divisor de feixe de polarização óptica de fibra com óptica sensível à polarização Combinador y divisor de haz de polarización de fibra óptica con óptica sensible a la polarización Combinatore e splitter di fascio di polarizzazione ottica in fibra con ottica sensibile alla polarizzazione Kuituoptisen polarisointisäteen yhdistin ja jakaja polarisaatioherkällä optiikalla Combinateur et séparateur de faisceau de polarisation à fibre optique avec optique sensible à la polarisation Faseroptischer Polarisationsstrahlkombinierer und -teiler mit polarisationsempfindlicher Optik ?wiat?owodowy ??cznik i rozdzielacz wi?zki polaryzacyjnej z optyk? wra?liw? na polaryzacj? SMF-28 SMF28 SM1950 PM1950 PM1550 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad PMSC Cladding DC PMDC Double Clad X Type 2x2 4-port Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W  Watt Watts HP CW Continuous Wave FPDC FPDS 2050nm 2030nm 2070nm 2035nm 2040nm 2045nm 2055nm 2060nm 2065nm Fiber optical polarization beam combiner and splitter with polarization sensitive optics Combinador e divisor de feixe de polarização óptica de fibra com óptica sensível à polarização Combinador y divisor de haz de polarización de fibra óptica con óptica sensible a la polarización Combinatore e splitter di fascio di polarizzazione ottica in fibra con ottica sensibile alla polarizzazione Kuituoptisen polarisointisäteen yhdistin ja jakaja polarisaatioherkällä optiikalla Combinateur et séparateur de faisceau de polarisation à fibre optique avec optique sensible à la polarisation Faseroptischer Polarisationsstrahlkombinierer und -teiler mit polarisationsempfindlicher Optik ?wiat?owodowy ??cznik i rozdzielacz wi?zki polaryzacyjnej z optyk? wra?liw? na polaryzacj? SMF-28 SMF28 SM1950 PM1950 PM1550 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad PMSC Cladding DC PMDC Double Clad X Type 2x2 4-port Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W  Watt Watts HP CW Continuous Wave FPDC FPDS 2050nm 2030nm 2070nm 2035nm 2040nm 2045nm 2055nm 2060nm 2065nm Fiber optical polarization beam combiner and splitter with polarization sensitive optics Combinador e divisor de feixe de polarização óptica de fibra com óptica sensível à polarização Combinador y divisor de haz de polarización de fibra óptica con óptica sensible a la polarización Combinatore e splitter di fascio di polarizzazione ottica in fibra con ottica sensibile alla polarizzazione Kuituoptisen polarisointisäteen yhdistin ja jakaja polarisaatioherkällä optiikalla Combinateur et séparateur de faisceau de polarisation à fibre optique avec optique sensible à la polarisation Faseroptischer Polarisationsstrahlkombinierer und -teiler mit polarisationsempfindlicher Optik ?wiat?owodowy ??cznik i rozdzielacz wi?zki polaryzacyjnej z optyk? wra?liw? na polaryzacj? SMF-28 SMF28 SM1950 PM1950 PM1550 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad PMSC Cladding DC PMDC Double Clad X Type 2x2 4-port Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W  Watt Watts HP CW Continuous Wave SS SP PP PS
TYPICAL SPECIFICATIONS
Center Wavelength 2050nm
Bandwidth +/-20nm
Insertion Loss <=1.6dB
Return Loss >=45dB
Extinction Ratio (for FPDS) >=18dB
Fiber Type at Port3&4 Same Fiber or Corresponding SM Fiber
Fiber Type at Port1&2 PM1550 Fiber or PM1950 Fiber
10/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W
Operating Temperature 0~50degreeC

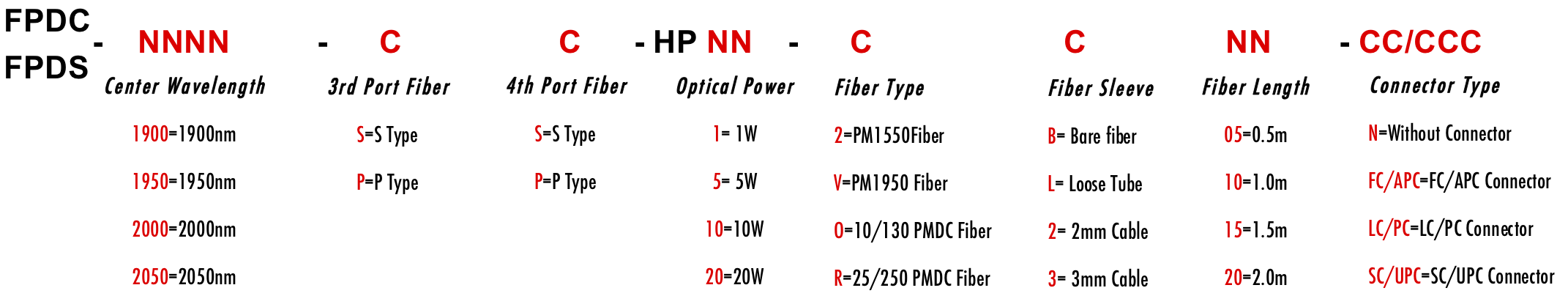

ORDERING INFORMATION/PART NUMBER(PN)
